AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58E-06-10730	HARNESS, CAN RPC (CAN RPC/GE)	1
?	58E-06-00522	HARNESS, GE/AUX BOX INTERFACE	1
?	58B-06-00120	RESISTOR (2K OHM, 2W)	1
?	WB1303	CLAMP, CUSHIONED - 3/4"	1
?	58E-06-10720	HARNESS, CAN J1939 (CAN/GE)	1
?	PC0616	RECEPTACLE, TEE	6
?	58E-06-10830	HARNESS, 1939 JUMPER (CAN J1939 JUMPER)	1
?	58E-06-00410	COVER, WIRE	3
?	58E-06-00390	DUCT, WIRE	3
?	58E-06-10360	SCREW, FLANGE	17
?	58E-06-10350	NUT, SPECIAL	17
?	58E-06-10540	RETAINER, WIRE DUCT - 2"	6
?	EJ9089	CONTROLLER, INTERFACE MODULE (IM) (UNPROGRAMMED)	1
?	58E-06-00503	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	XC2513	BRACKET	1
?	MM0401	CAPSCREW - M8 X 1.25 X 90	8
?	MM0460	FLAT WASHER - M8	8
?	EJ3060	CONTROLLER, PAYLOAD METER III	1
?	58E-06-00550	HARNESS, CAN J1939 (PLM III/IM)	1
?	EK3934	NAME PLATE - PLM III	1
?	58E-06-00531	HARNESS, PLM III/AUXILIARY BOX	1
?	MM0176	NUT - M6 X 1.00	6
?	MM0469	LOCKWASHER - M6	6
?	MM0459	FLAT WASHER - M6	6
?	PC1110	CONVERTOR (24-12 VDC, 60 AMP)	1
?	WB3239	NAME PLATE - 12 VCN	1
?	SD5390	MACHINE SCREW - #10 - 32NF X 1"	2
?	VC5344	FLAT WASHER - M10	2
?	DC3101	LOCKWASHER - M10	2
?	PB8460	CIRCUIT BREAKER	1
?	ED4418	BRACKET	1
?	EC7460	NAME PLATE - DL4	1
?	WB3479	NAME PLATE - CB60	1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	3
?	TR4436	FLAT WASHER - 3/8"	3
?	PC0618	PLUG, TERMINATING	2
?	7861-92-5330	SENSOR, ANGLE	1
?	XC2506	BRACKET	1
?	EL7628	NAME PLATE - INCLINOMETER	1
?	58E-06-10590	NAME PLATE - DATA PORTS	1
?	EC7457	NAME PLATE - DL5	1
?	EK2723	NAME PLATE - INTERFACE MODULE	1
?	58E-06-00540	HARNESS, CAN RPC	1
?	WB4009	NAME PLATE - CAN J1939	2
?	WB4010	NAME PLATE - CAN RPC	2
?	58E-06-10820	HARNESS, 1939 JUMPER (CAN RPC JUMPER)	1
?	58E-06-00511	HARNESS, AUXILIARY CONTROL CABINET INTERNAL	1
?	58B-06-00290	VARISTOR	3
?	58B-06-00160	RESISTOR - 560 OHM, 3W	1
?	58B-06-00130	RESISTOR - 1KOHM, 2W	1
?	XC2504	BRACKET, LIGHT	3
?	PC3010	LIGHT, DOME	3
?	WB3770	SCREW - #10 - 24NC X 3/4"	12
?	EC7461	NAME PLATE - DL6	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	12
?	SP8417	FLAT WASHER - 1/4"	12
?	58E-06-00211	PLATE	1
?	MM0594	CAPSCREW - M8 X 1.25 X 25	8
?	MM0470	LOCKWASHER - M8	16
?	MM0712	FLAT WASHER - M8	8
?	PB8256	SCREW LOCK, FEMALE	3

Komatsu AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE parts catalog PDF

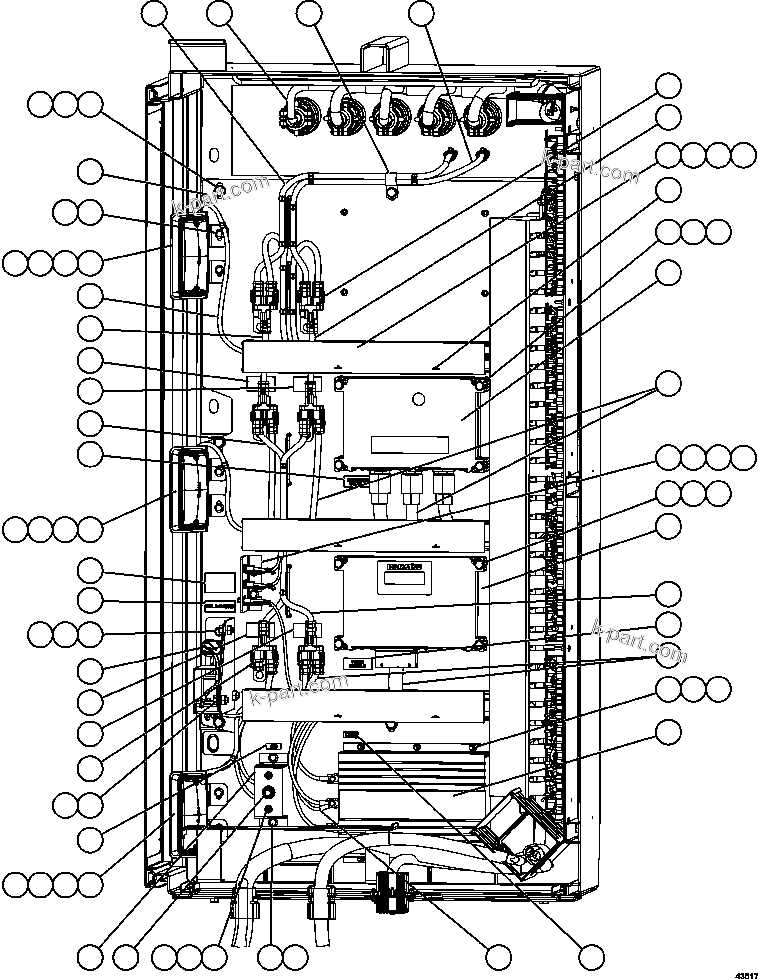

AUXILIARY CONTROL CABINET COMPONENTS - LH WALL (43517) in AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE. Diagram image and parts list.
