AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE

2 7 3 8 1 9 6 7 18 4 10 19 5 11 12 13 14 15 16 17 20 24 25 26 21 27 28 29 22 30 23 36 31 32 40 33 8 41 37 13 42 9 38 34 39 35

#	Part Number	Partname	Quantity
1	XA2272	SHAFT & BRACKET	1
2	XA2279	PIN, DOWEL - REAR (3)	1
3	VE1297	FITTING, ORIFICE	1
4	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
5	BF0136	SLEEVE, WEAR (1)/(2)/(3)	1
6	BF0142	PLATE, NAME (1)/(2)/(3)	1
7	BF0143	TUBE (1)/(2)/(3)	2
8	XA3505	CAPSCREW	16
9	BF2651	FLAT WASHER	16
10	BF0883	SEAL, OIL (2)/(3)	1
11	XA3504	RETAINER, BEARING	1
12	XA2277	SPACER, BEARING	1
13	BF0144	SEAL, O-RING (1)/(2)/(3)	2
14	XA2273	BEARING, MAIN REAR (3)	1
15	BF0849	SNAP RING (3)	1
16	VE8122	SNAP RING, EXTERNAL (3)	1
17	BF0138	RING, SEAL (1)/(2)/(3)	2
18	XA2336	CAPSCREW	8
19	BF5366	LOCKWASHER	8
20	XA2334	PULLEY, FAN	1
21	XA3506	ADAPTER, PULLEY	1
22	BF0139	RING, SEAL (1)/(2)/(3)	1
23	BF4032	PISTON	1
24	BF0140	RING, SEAL (1)/(2)/(3)	1
25	BF0146	WASHER, SPRING (1)/(2)/(3)	1
26	BF0147	SHIM (1)/(2)/(3)	1
27	VE8128	SNAP RING, EXTERNAL (3)	1
28	VE8125	SNAP RING, EXTERNAL (3)	1
29	BF0885	HUB, SPLINED	1
30	VE1304	PLATE, CLUTCH (FACING) (3)	8
31	BF0887	PLATE, CLUTCH (1)/(3)	8
32	VE8127	SNAP RING, INTERNAL (3)	1
33	XA2275	BEARING, MAIN FRONT (3)	1
34	XA3507	RETAINER, BEARING	1
35	BF0883	SEAL, OIL (2)/(3)	1
36	XA2274	HUB, FAN MOUNTING	1
37	BF0141	SLEEVE, WEAR (1)/(2)/(3)	1
38	VE8126	RETAINER/SEAL ASSEMBLY (2)/(3)	1
39	VE8123	BEARING, SLEEVE (3)	1
40	XA2278	PIN, DOWEL - FRONT (3)	1
41	VE8524	BEARING, SLEEVE (3)	1
42	BF4043	CAP, END	1
NS\|43		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|44	XA2271	(2) INCLUDED IN XA2271 SEAL KIT.	-1
NS\|45	EK2970	(3) INCLUDED IN EK2970 OVERHAUL KIT.	-1
NS\|46		(TO ORDER FAN CLUTCH ASSEMBLY LESS PULLEY,	-1
NS\|47		ORDER XA3503.)	-1

Komatsu AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE parts catalog PDF

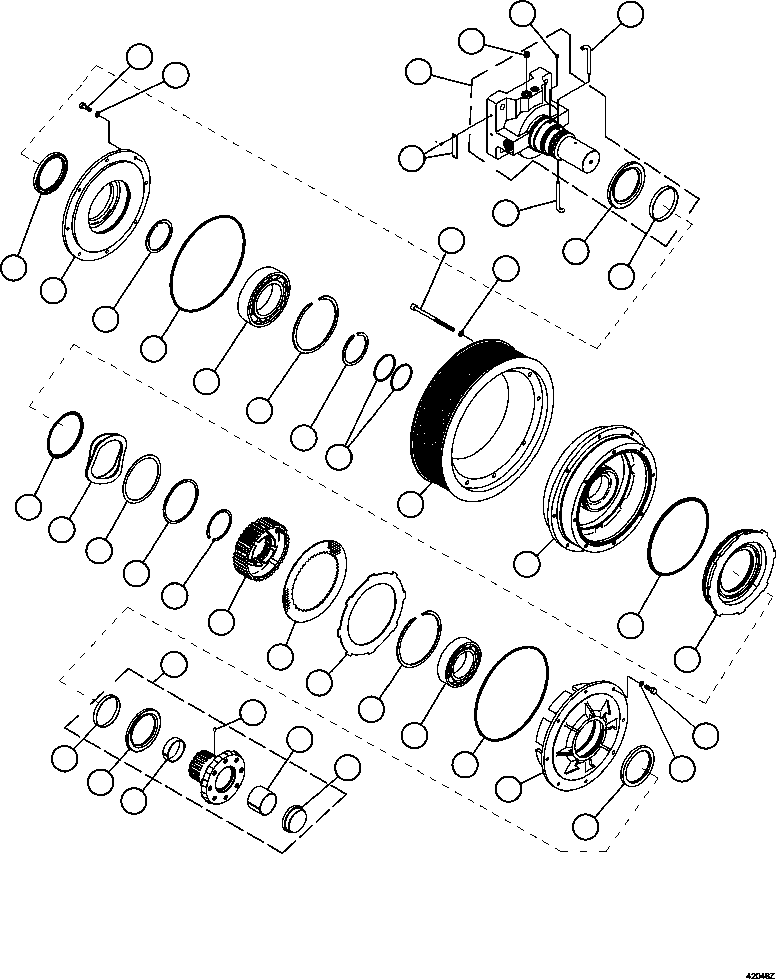

FAN CLUTCH ASSEMBLY XA4485 (42048) in AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE. Diagram image and parts list.
