AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE0688	PLATE, END (1)	1
?	VS8253	WEIGHT, BALANCE - 10 1/2" O.D. (1)	-1
?	VJ1071	WEIGHT, BALANCE - 1 1/2" WIDE (1)	-1
?	58E-06-03070	COIL, ROTOR (1)	8
?	58E-06-03080	PACKING (1)/(2)	8
?	VE7006	CORE, ROTOR (1)	1
?	BF1480	COLLECTOR RING ASSEMBLY (1)	1
?	GE1823	BEARING, BALL (1)/(2)	1
?	GE1084	SHAFT, ROTOR (1)	1
?	XA4331	FLINGER	1
?	GE1103	HUB	1
?	GE1155	PICKUP, MAGNETIC (SPEED SENSOR) (2)	1
?	XA4329	HOUSING, BEARING (1)	1
?	VE4248	GASKET	1
?	XA4330	CAP, BEARING (1)	1
?	GE1171	CAPSCREW - 5/8" - 11NC X 3 1/4"	6
?	VE5184	FLAT WASHER - 5/8"	6
?	XA5881	SEAL (2)	1
?	XA4332	SLEEVE	1
?	VE3620	PIN, DOWEL	2
?	GE1165	HUB	1
?	XA4511	SEAL, V-RING (2)	1
?	VE7209	SEAL, V-RING (2)	1
?		NOTE: (1) INCLUDED IN ROTOR ASSEMBLY.	-1
?	58F-MA-AK010	(2) INCLUDED IN 58F-MA-AK010 ALTERNATOR OVERHAUL KIT.	-1

Komatsu AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE parts catalog PDF

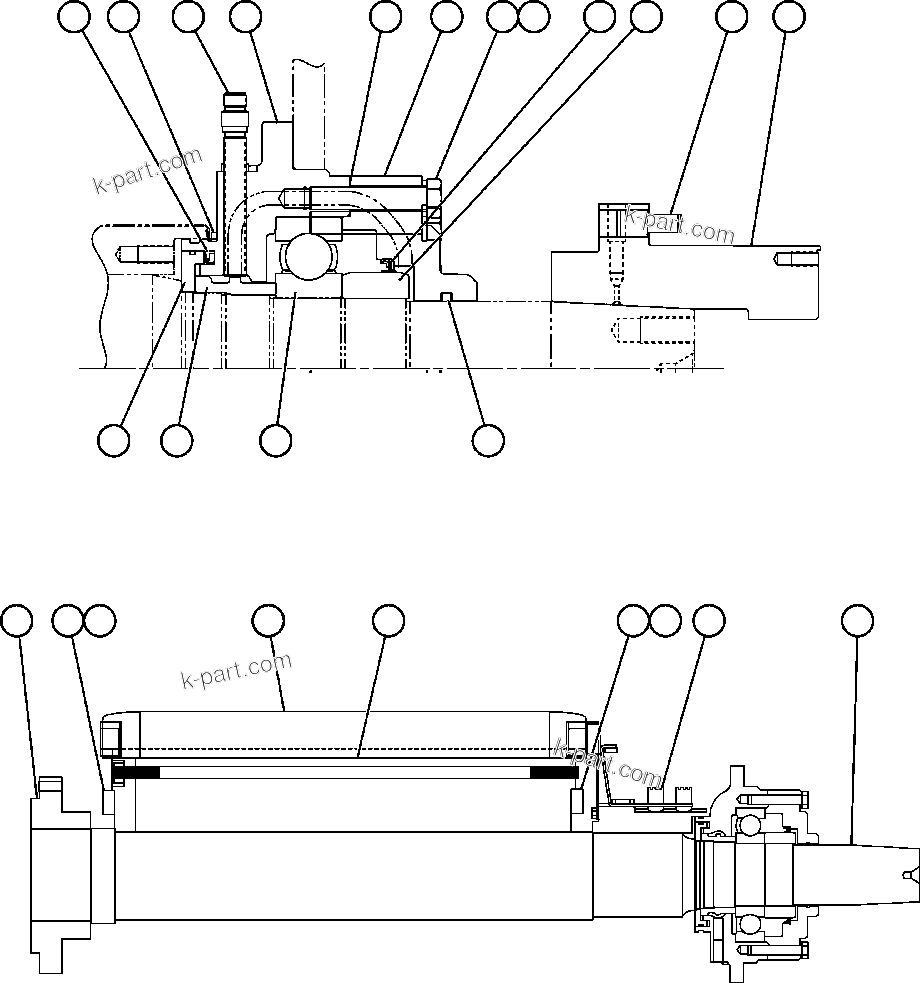

ALTERNATOR - ENGINE MOUNT 2/2 (64409) in AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE. Diagram image and parts list.
