AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE

1 2 5 4 5 6 7 8 3 9 10 11 2 12 13 14 39 44 15 16 17 18 23 19 20 24 21 22 25 2 26 5 28 5 29 30 27 43 42 41 40 39 31 32 33 38 2 5 37 5 36 35 34

#	Part Number	Partname	Quantity
1	XA2014	TUBE	1
2	VE1797	FITTING, CONNECTOR	4
3	VE1796	FITTING, ELBOW	1
4	XA2015	TUBE	1
5	XA4337	PLUG	3
6	VE1793	BLEEDER	4
7	XA1993	HOUSING	1
8	XA2009	LINING	2
9	VE6738	SEAL, DUST (1)	4
10	VE2192	RING, BACKUP (1)/(2)	4
11	XA4085	O-RING (1)	4
12	XA4086	PISTON ASSEMBLY	4
12	XA1997	PISTON	1
13	XA4114	GUIDE	1
14	XA4115	ADJUSTER ASSEMBLY	2
15	XA1998	PIN	1
16	VJ7234	GUIDE, SPRING	1
17	XA1999	SPRING	1
18	VJ7235	RING, RETAINER	1
19	XA4116	RING, SPECIAL	1
20	XA4117	RING, LOCK	1
21	VJ7238	WASHER	1
22	XA4113	O-RING (1)	1
23	XA2008	BOOT (1)	2
24	XA2007	BOLT, ADJUSTING (PARK PISTON)	2
25	XA2011	SPRING	2
26	XA2010	SCREW, SPECIAL	2
27	XA2006	RING, SNAP	2
28	XA1994	HOUSING	1
29	VE7829	LOCKWASHER	4
30	VJ0106	LOCKNUT	4
31	XA2003	SPRING, BELLEVILLE	8
32	XA5089	CAP, PARK PISTON	2
33	XA2012	PLUG, PIPE	2
34	XA4266	PISTON	2
35	XA2001	RING, BACKUP (1)	2
36	XA2002	O-RING (1)	2
37	TR6102	SCREW, BLEEDER	4
38	VE1795	FITTING, TEE	1
39	VE9238	CAPSCREW - 3/4" - 16NF X 2"	12
40	VS5265	END PLATE - RH	2
41	VE5736	O-RING (1)	2
42	VE5734	RING, BACKUP (1)	2
43	XA2005	COLLAR, ADJUSTING	2
44	VS5264	END PLATE - LH	2
NS\|46	XA2016	NOTE: (1) INCLUDED IN XA2016 SEAL KIT.	-1
NS\|47		(2) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE parts catalog PDF

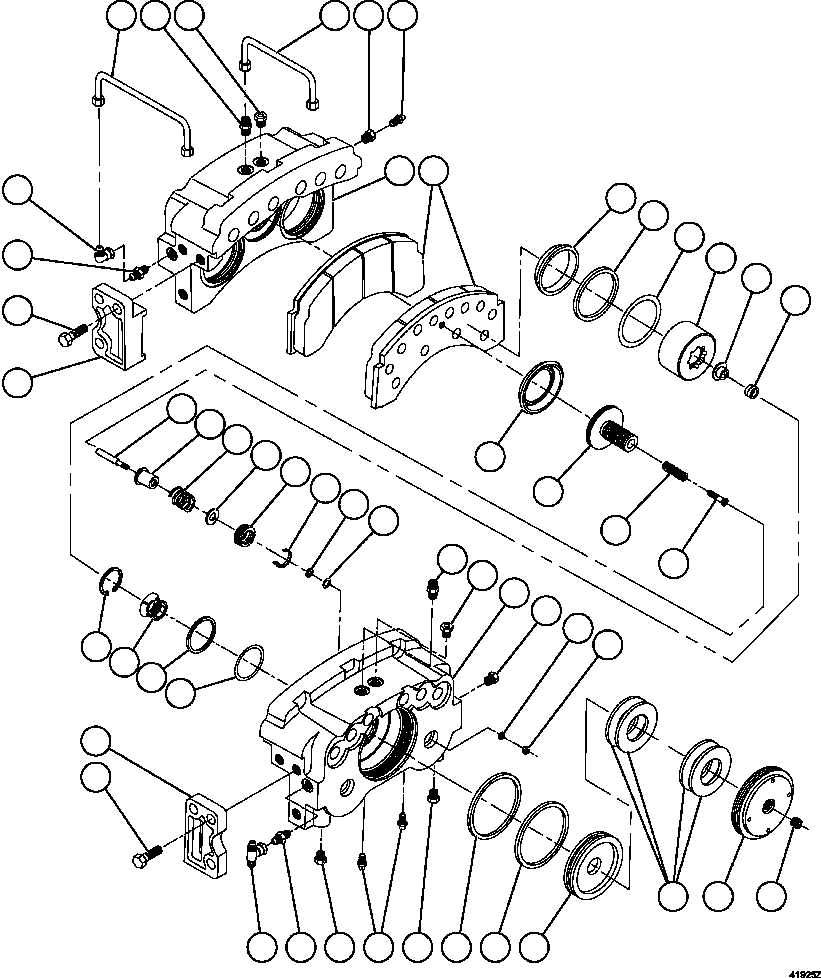

REAR DISC BRAKE ASSEMBLY PC2823 (41947) in AFE57-HM 830E-1AC S/N A40953 UNITED TACONITE. Diagram image and parts list.
