AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC1927	GAUGE PANEL (SEE FIG 61325)	1	61325
?	PB8658	SCREW - M6 X 1.00 X 30	4
?	EK7947	LOUVER, RECTANGULAR	2
?	XB8077	DASH MODULE, UPPER RH (SEE FIG 43488)	1	43488
?	XC2372	DASH MODULE, LOWER RH (SEE FIG 43487)	1	43487
?	WB3295	DECAL, SHIFT SELECTOR	1
?	WB2490	DECAL, WARNING (KEY SWITCH)	1
?	DC9822	DRIVE SCREW	4
?	SM2648	PLATE, SEAL RETAINER - RH	1
?	SM2646	PLATE, SEAL RETAINER - LH	1
?	PB9829	SCREW - M6 X 1.00 X 16	10
?	TX7829	SEAL, STEERING COLUMN	1
?	EL3494	DASH MODULE, LOWER LH (SEE FIG 61324)	1	61324
?	EK8962	SEAL, LOWER MODULE	2
?	EK8961	SEAL, UPPER MODULE	2
?	PC3588	PANEL, STATUS LIGHT	1
?	SM2466	SCREW - #10 - 24NC X 1"	4
?	EL5675	DASH PANEL, MOLDED	1
?	SM5145	TUBE (1)	2
?	WA4513	SCREW - #10 - 24NC X 1/2" (1)	4
?	CC6103	CLAMP, WORM DRIVE (FOR AIR HOSES)	4
?	SM2783	HOSE, AIR (TO RECTANGULAR LOUVERS)	2
?	EK7946	ADAPTER, HOSE	2
?		NOTE: (1) NOT INCLUDED IN THE INSTRUMENT PANEL ASSEMBLY.	-1

Komatsu AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO parts catalog PDF

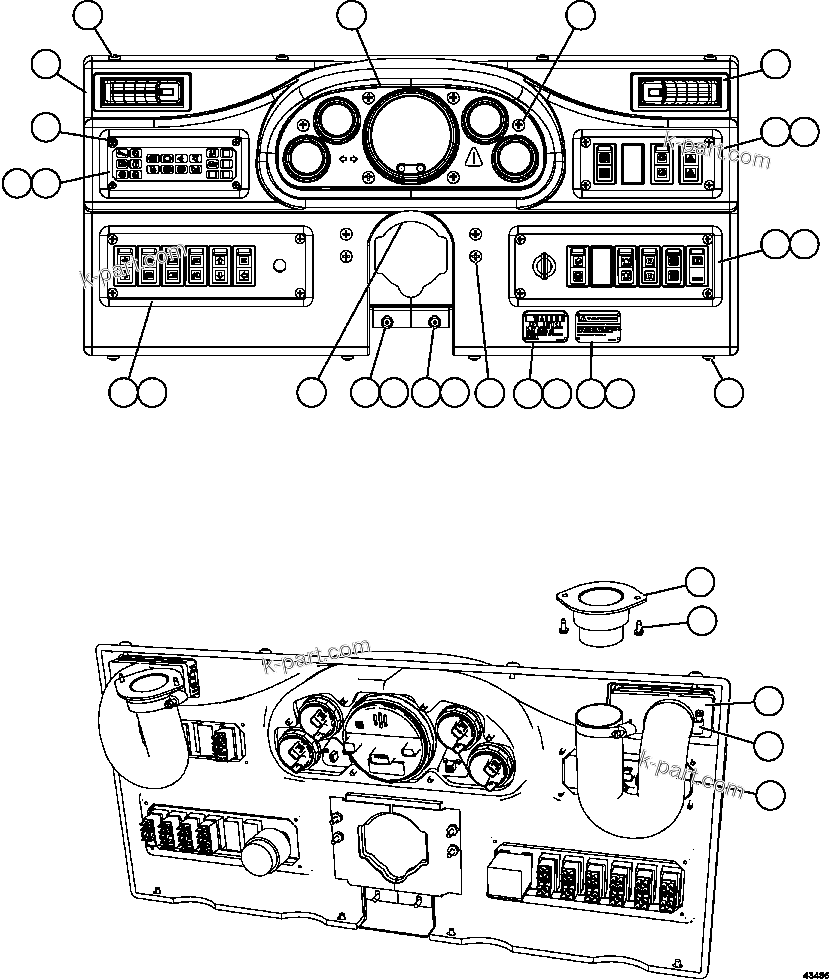

INSTRUMENT PANEL ASSEMBLY X83-00-05180 (43486) in AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO. Diagram image and parts list.
