AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE4698	NUT - 1/2" - 13NC	-1
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE4519	FLAT WASHER - 1/2"	-1
?	VE3030	FLAT WASHER - 1/2"	-1
?	PB3348	INSULATOR	35
?	XA3143	STUD	30
?	XA5279	BUS BAR	1
?	XA5277	BUS BAR	1
?	58E-43-00170	PANEL, POSITIVE IGBT MODULE	14
?	58B-43-00410	GASKET	1
?	58E-43-00180	PANEL, NEGATIVE IGBT MODULE	14
?	58B-43-00410	GASKET	1
?	GE1382	CAPSCREW - 3/8" - 16NC	-1
?	VE3918	FLAT WASHER - 3/8"	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	VE4700	NUT - 3/8" - 16NC	-1
?	BF0543	CAPSCREW - 5/16" - 18NC X 2 1/2"	-1
?	GE1386	MACHINE SCREW - #10 - 32NC X 1 5/8"	-1
?	VE4343	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE1380	CAPSCREW	-1
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	VE4490	FLAT WASHER - 1/2"	-1
?	XA4876	CAPACITOR, IGBT INVERTER	10
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	-1
?	GE0240	GROMMET	5
?	VE4739	CAPSCREW - 3/8" - 16NC X 1"	-1
?	XA3722	BRACKET ASSEMBLY, MOUNTING	6
?	XA5281	BRACKET ASSEMBLY, MOUNTING	6
?	GE0557	PANEL, RECTIFIER (SEE INDEX)	1	64036
?	GE0170	SENSOR, AC-DC	16
?	GE0240	GROMMET	5
?	GE0579	STUD	10

Komatsu AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO parts catalog PDF

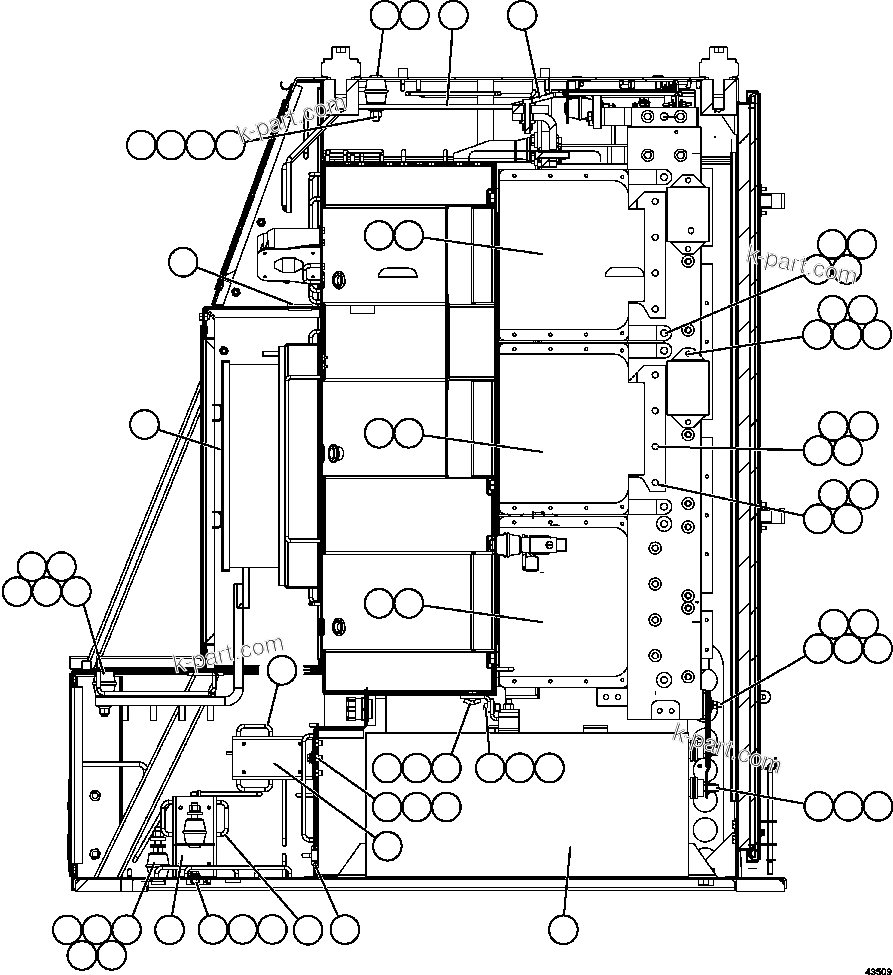

CTRL CABINET - RIGHT COMPARTMENT 1/2 58E-43-00021 (43509) in AFE57-GV 830E-1AC S/N A40890 & A40900 TECK CMO. Diagram image and parts list.
