AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE9566	DRIVE SHAFT W/SPLINE	1
?	VE9568	BEARING	1
?	VE9570	RING, RETAINER	1
?	VE9569	RING, RETAINER	1
?	VE9535	BOLT, EYE	2
?	VE9545	PLATE, NAME	1
?	VE9544	DRIVE SCREW	8
?	VE9542	PLATE, NAME	1
?	VE9538	PLUG	3
?	VE9540	O-RING	3
?	VE9543	PLATE, NAME	1
?	VE9597	STEM	1
?	VE9598	O-RING	1
?	VE9595	GLAND	1
?	58E-98-00050	SEAL, O-RING (1)	2
?	BF3733	JAM NUT	1
?	VE9534	BEARING, RETAINING PIN	2
?	VE9546	O-RING	3
?	VE9562	PIN, SWASH BLOCK	2
?	VE9530	HOUSING, PUMP	1
?	VE9567	RETAINER, SEAL	1
?	BF0293	O-RING	2
?	VE9536	PLUG	1
?	VE9532	SEAL, SHAFT	1
?	VE9607	PLUG	1
?	58E-98-00000	NOTE: (1) INCLUDED IN 58E-98-00000 PUMP SEAL KIT.	-1

Komatsu AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE parts catalog PDF

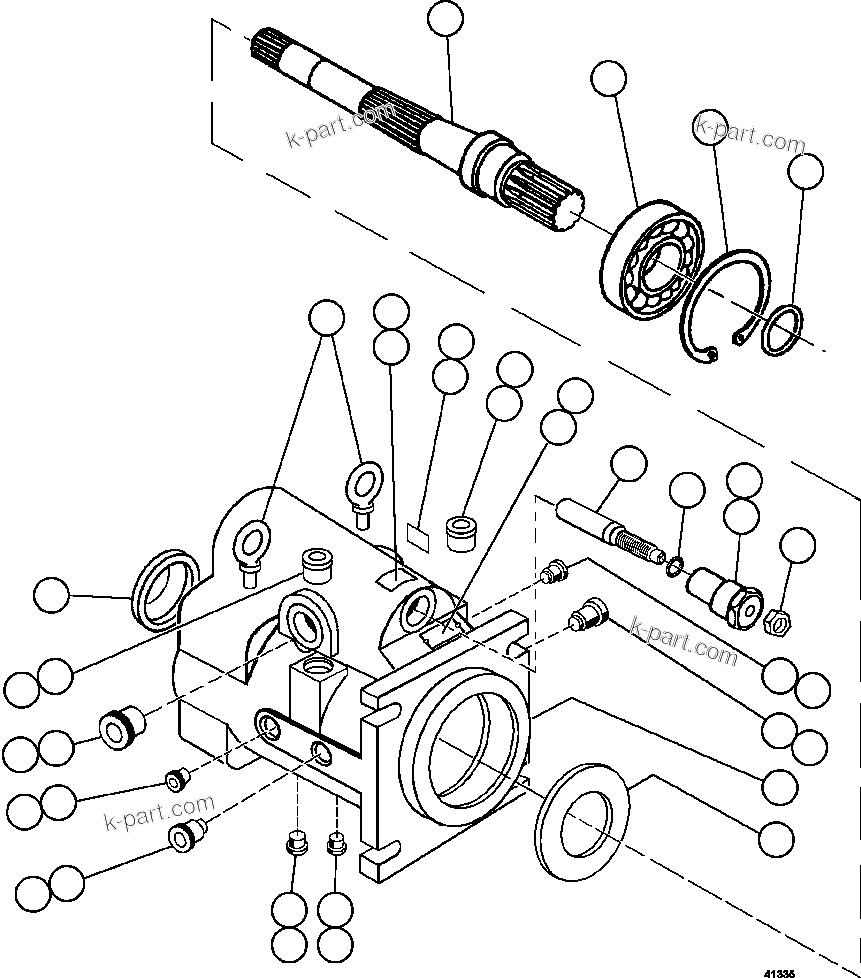

STEERING PUMP HOUSING (FRONT) 58B-60-00080 (41335) in AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE. Diagram image and parts list.
