XA4446
|
ADAPTER |
1 |
|
|
|
|
? |
VJ1073
|
CAPSCREW - 5/8" - 18NF X 2 1/4" |
15 |
|
|
|
|
? |
VE5184
|
FLAT WASHER - 5/8" |
21 |
|
|
|
|
? |
GE1167
|
STATOR REWIND KIT (1) |
1 |
|
|
|
|
? |
VE1887
|
STRAP, CONNECTION (1) |
1 |
|
|
|
|
? |
VE4342
|
BRACKET, INSULATED (1) |
7 |
|
|
|
|
? |
XA3159
|
STATOR ASSEMBLY (SEE INDEX) |
1 |
|
64196 |
|
|
? |
XA4402
|
ROTOR ASSEMBLY (SEE INDEX) |
1 |
|
64354 |
|
|
? |
VJ2743
|
ROLLPIN |
1 |
|
|
|
|
? |
XA3160
|
STATOR FRAME & CORE ASSEMBLY (1) |
1 |
|
|
|
|
? |
VE2753
|
BRACKET |
7 |
|
|
|
|
? |
VE4542
|
CAPSCREW - 1/2" - 13NC X 1" (1) |
28 |
|
|
|
|
? |
VE5185
|
FLAT WASHER - 1/2" (1) |
28 |
|
|
|
|
? |
GE0328
|
CABLE ASSEMBLY (SPEED SENSOR) |
1 |
|
|
|
|
? |
XA4447
|
HOUSING, INLET |
1 |
|
|
|
|
? |
VE4500
|
CAPSCREW - 3/8" - 16NC X 1 3/4" |
44 |
|
|
|
|
? |
VE3027
|
FLAT WASHER - 3/8" |
65 |
|
|
|
|
? |
TC1233
|
NUT - 3/8" - 16NC |
21 |
|
|
|
|
? |
GE1081
|
HOUSING, OUTLET |
1 |
|
|
|
|
? |
C1629
|
CAPSCREW - 5/8" - 11NC X 1 3/4" |
6 |
|
|
|
|
? |
VE4998
|
CAPSCREW - 1/2" - 13NC X 4 1/2" |
12 |
|
|
|
|
? |
VE5185
|
FLAT WASHER - 1/2" |
20 |
|
|
|
|
? |
GE1082
|
IMPELLER |
1 |
|
|
|
|
? |
GE0141
|
CAPSCREW - 5/8" - 11NC X 2 1/4" |
6 |
|
|
|
|
? |
VE4631
|
FLAT WASHER - 5/8" |
6 |
|
|
|
|
? |
GE1172
|
PLUG, PIPE - 1" |
1 |
|
|
|
|
? |
VJ9656
|
LIQUID GASKET |
-1 |
|
|
|
|
? |
GE1079
|
HEAD, FRAME |
1 |
|
|
|
|
? |
GE0790
|
LUBRIPLATE |
-1 |
|
|
|
|
? |
VG8030
|
CAPSCREW - 1/2" - 13NC X 1 1/2" |
8 |
|
|
|
|
? |
VE8444
|
BRUSH, CARBON |
6 |
|
|
|
|
? |
VJ1024
|
HOLDER, BRUSH (SEE INDEX) |
6 |
|
64030 |
|
|
? |
VE7209
|
SEAL, V-RING |
1 |
|
|
|
|
? |
|
NOTE: (1) INCLUDED IN XA3159 STATOR ASSEMBLY. |
-1 |
|
|
|
|
? |
|

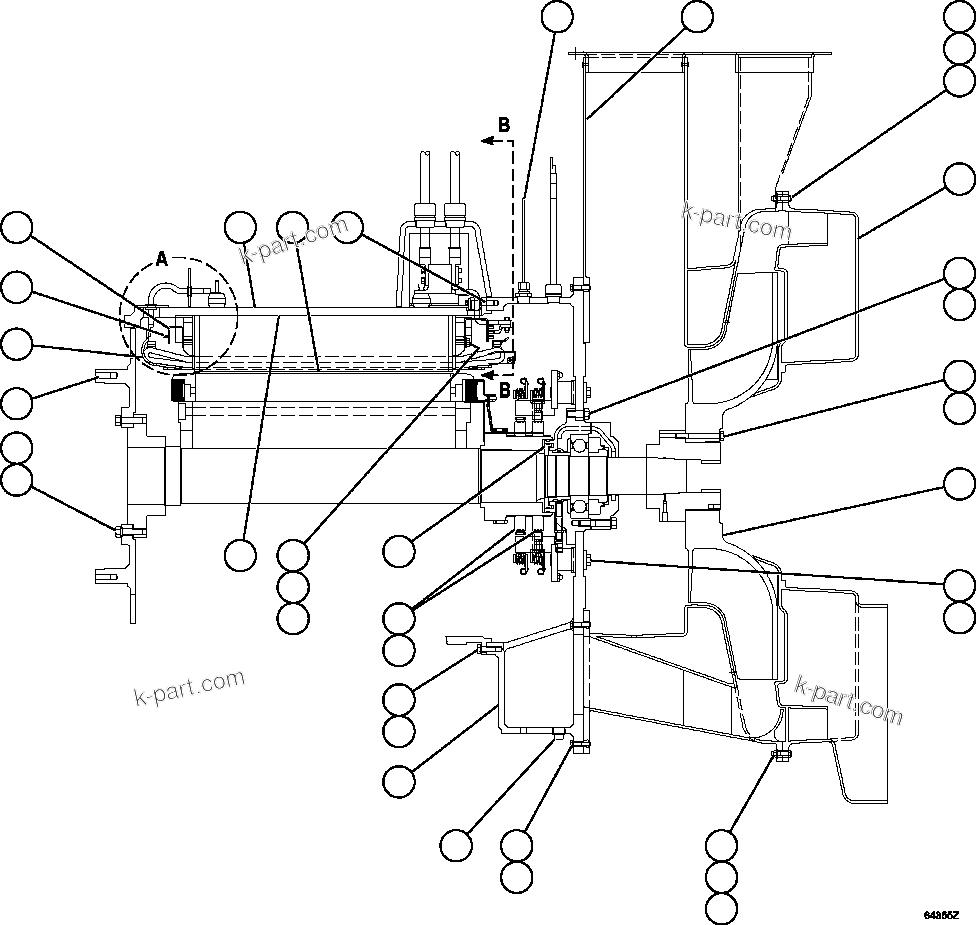

(SEE FOLLOWING PAGES FOR DETAIL A AND VIEW B-B.) |
