AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE0500	BEARING, INBOARD	1
?	VE7201	O-RING	1
?	VE4744	RING, SEAL	1
?	BF1484	CAPSCREW - 1" - 14NF X 5 1/2"	45
?	XA4287	FLAT WASHER - 1"	45
?	VE6091	HUB, WHEEL	1
?	VE0499	BEARING, OUTBOARD	1
?	VE4234	CAP, BEARING	1
?	VE4745	CAPSCREW - 3/4" - 10NC X 2 1/2"	24
?	VE5188	FLAT WASHER - 3/4"	24
?	XA4289	CABLE, SPEED SENSOR	1
?	XA4288	SENSOR, SPEED	1
?	XA2864	BAFFLE	1
?	XA2863	RING	1
?	VE4739	CAPSCREW - 3/8" - 16NC X 1"	8
?	VE3027	FLAT WASHER - 3/8"	8
?	XA2858	PUNCHING, MAIN	860
?	XA2862	SHAFT, ROTOR	1
?	VE0517	SEAL	1
?	VE0662	BAND, WEAR	1
?	VE4641	CAPSCREW - 3/8" - 16NC X 1 1/4"	12
?	VE3027	FLAT WASHER - 3/8"	12
?	VE4746	RING, SEAL	1
?	VE4785	RING, ADAPTER	1
?	VE0667	CAPSCREW - 1" - 8NC X 5"	9
?	VE4784	FLAT WASHER - 1"	9
?	VE4499	CAPSCREW - 5/8" - 11NC X 1 1/2"	10
?	VE2466	RING, THRUST	1
?	VE0663	SHIM SET	1
?	VE4501	SHIM - 0.005" X 20.9"	8
?	VE4502	SHIM - 0.007" X 20.9"	16
?	VE4503	SHIM - 0.0299" X 20.9"	28
?	VE4504	SHIM - 0.005" X 14.67"	5
?	VE4505	SHIM - 0.007" X 14.67"	4
?	VE4506	SHIM - 0.0299" X 14.67"	2
?	XA4040	CAPSCREW	20
?	VE5184	FLAT WASHER - 5/8"	10
?	XA2854	STATOR ASSEMBLY	1
?	XA2855	KIT, STATOR REWIND	1
?	XA2856	KIT, STATOR BUS	1

Komatsu AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE parts catalog PDF

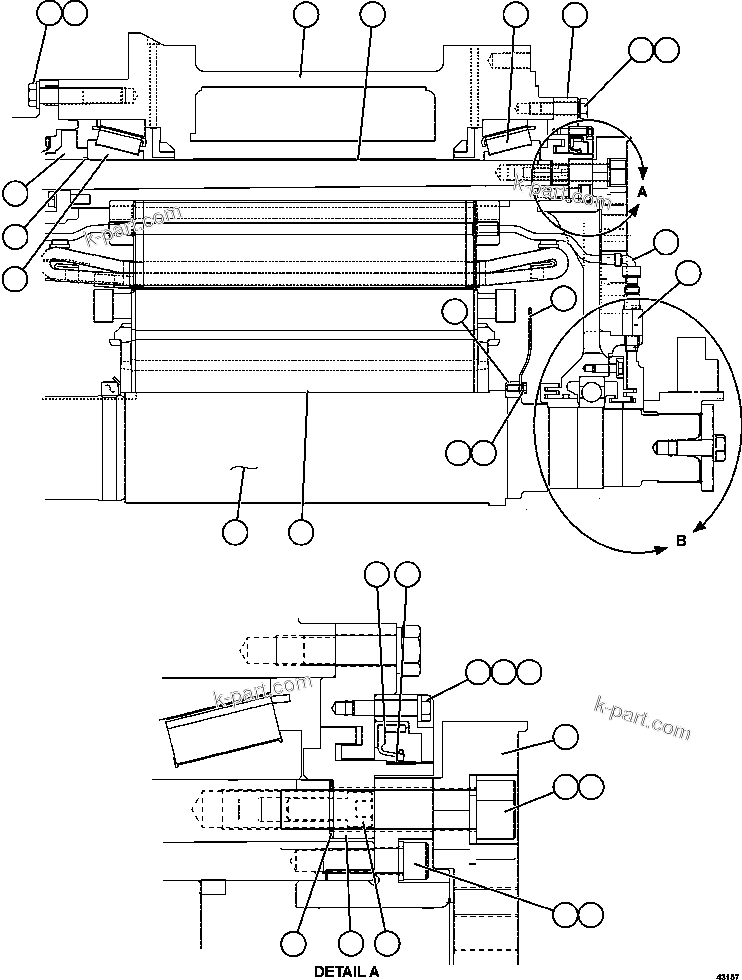

WHEEL MOTOR 2/8 PC3159 (43157) in AFE57-GK 830E-1AC S/N A30840 - A30841 HIBBING TACONITE. Diagram image and parts list.
