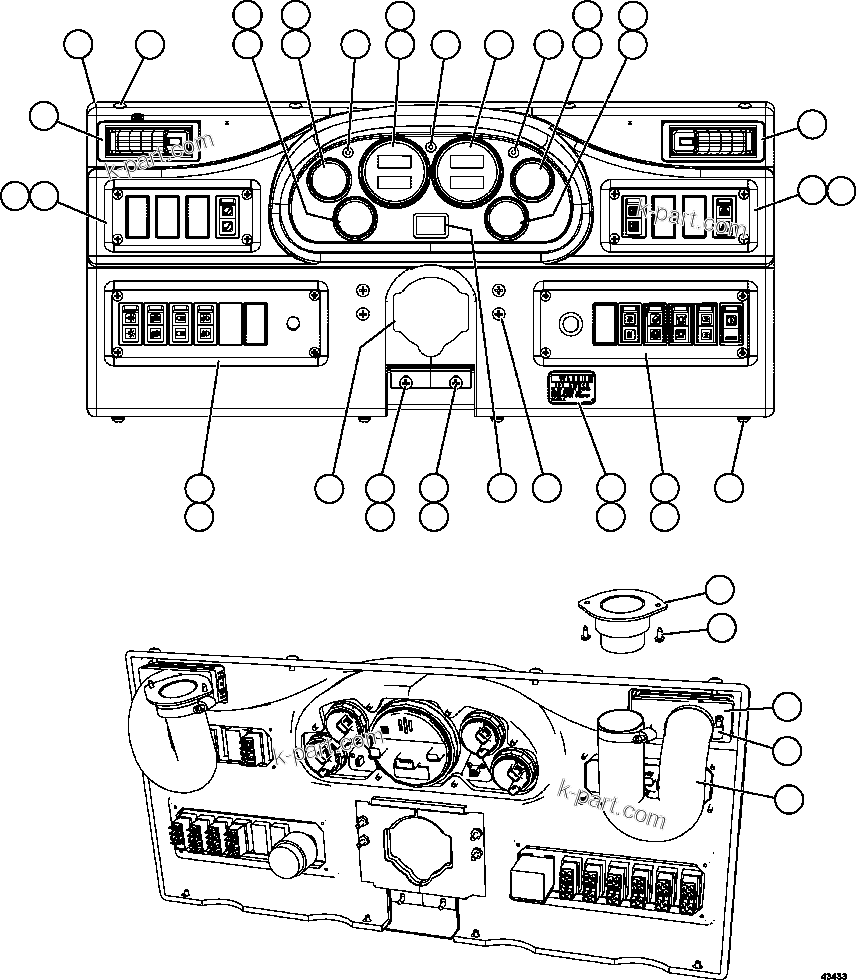

INSTRUMENT PANEL ASSEMBLY EM4322 | AFE57-FW 830E-1AC S/N A30761 WABUSH

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE57-FW 830E-1AC S/N A30761 WABUSH

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB9829	SCREW - M6 X 1.00 X 16	10
?	WB2490	DECAL, WARNING (KEY SWITCH)	1
?	DC9822	DRIVE SCREW	4
?	EM4321	DASH MODULE, LOWER RH (SEE FIG 43041)	1	43041
?	EK8962	SEAL, LOWER MODULE	2
?	EL3495	DASH MODULE, UPPER RH (SEE FIG 60931)	1	60931
?	EK8961	SEAL, UPPER MODULE	2
?	EK7947	LOUVER, RECTANGULAR	2
?	EK7946	ADAPTER, HOSE	2
?	PB6926	GAUGE, FUEL LEVEL	1
?	PB8551	GAUGE, OIL PRESSURE	1
?	TW5472	INDICATOR, TURN	2
?	58E-06-02300	BULB, LED	1
?	58E-06-02300	BULB, LED	4
?	PB6984	TACHOMETER, DIGITAL	1
?	TW3834	INDICATOR, HIGH BEAM	1
?	58E-06-02300	BULB, LED	1
?	PC1175	SPEEDOMETER/DISPLAY	1
?	EL4151	CLAMP, GAUGE MOUNTING	1
?	PB6303	GAUGE, WATER TEMPERATURE	1
?	PB9868	GAUGE, HYDRAULIC OIL TEMPERATURE	1
?	EL1075	DASH PANEL, MOLDED	1
?	EL4149	DASH MODULE, UPPER LH (SEE FIG 42061)	1	42061
?	EL4146	DASH MODULE, LOWER LH (SEE FIG 60934)	1	60934
?	TX7829	SEAL, STEERING COLUMN	1
?	SM2646	PLATE, SEAL RETAINER - LH	1
?	SM2648	PLATE, SEAL RETAINER - RH	1
?	SM2785	HOURMETER	1
?	PB8658	SCREW - M6 X 1.00 X 30	4
?	SM2783	HOSE, AIR (TO RECTANGULAR LOUVERS)	2
?	CC6103	CLAMP, WORM DRIVE (FOR AIR HOSES)	4
?	WA4513	SCREW - #10 - 24NC X 1/2" (1)	4
?	SM5145	TUBE (1)	2
?		NOTE: (1) NOT INCLUDED IN EM4322 INSTRUMENT PANEL ASSEMBLY.	-1
