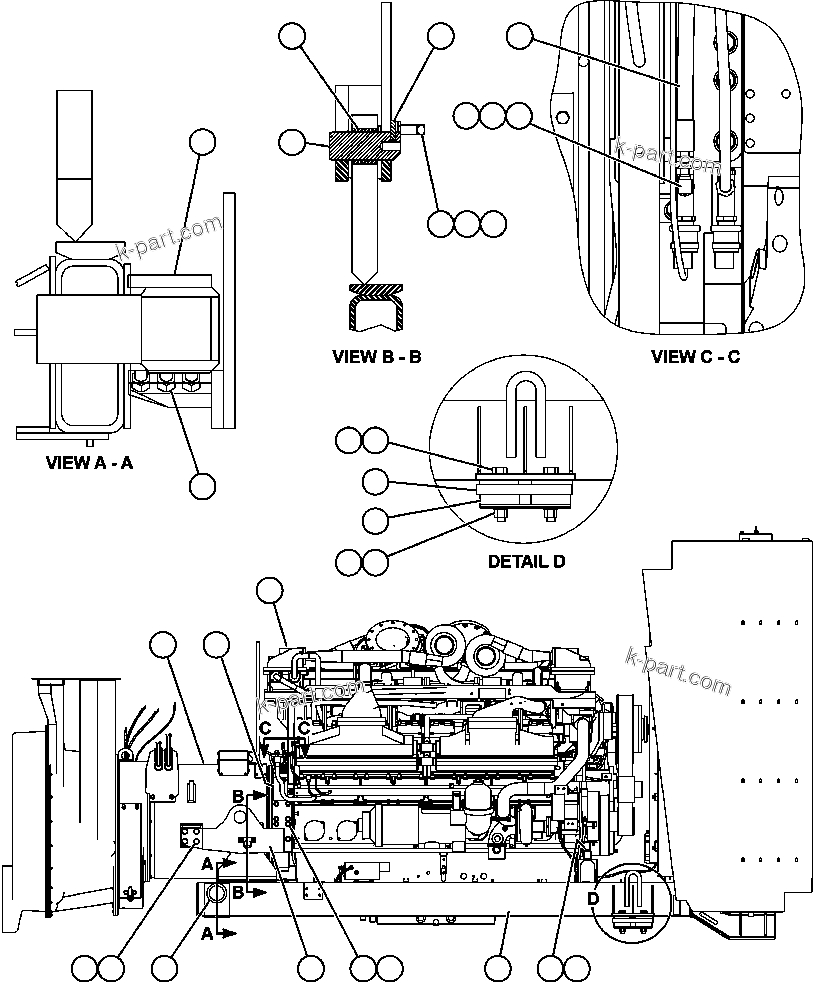

ENGINE & MISCELLANEOUS INSTALLATION | AFE59-BR 930E-4 S/N A30742 FORDING

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE59-BR 930E-4 S/N A30742 FORDING

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		ENGINE (ORDER FROM FACTORY)	1
?	MM0475	LOCKWASHER - M20	14
?	MM0075	CAPSCREW - M20 X 2.50 X 60	14
?	EH4056	CRADLE - L.H.	1
?	EH4055	CRADLE - R.H.	1
?	VN9079	CAPSCREW - 1" - 8NC X 2 1/4"	8
?	C1544	LOCKWASHER - 1"	8
?	VM3891	BUSHING, RUBBER	2
?	EM4860	SUB-FRAME, ENGINE	1
?	WB1193	CAPSCREW - M20 X 2.50 X 90 (12 PT)	2
?	MM0475	LOCKWASHER - M20	2
?	PC2573	ALTERNATOR/BLOWER ASSEMBLY (SEE INDEX)	1	64211
?	TJ5933	ADAPTER ASSEMBLY	1
?	TM3466	SHIM	4
?	TM3467	SHIM	4
?	TM3468	SHIM	4
?	TM3469	SHIM	4
?	TW6616	SHIM	30
?	VN9087	CAPSCREW - 5/8" - 11NC X 2 1/2"	12
?	VW5737	CAPSCREW - 5/8" - 11NC X 2"	16
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	28
?	E4477	CAPSCREW, TAPER HEAD - 3/4" - 10NC X 11/32"	12
?	VM6531	CAP, ENGINE MOUNT	2
?	TN1019	PIN	2
?	PB4177	RACE, INNER	2
?	TN1018	PLATE	2
?	VW2236	SETSCREW - 3/4" - 10NC	4
?	C1542	LOCKWASHER - 3/4"	4
?	E5222	JAM NUT - 3/4" - 10NC	4
?	HA2365	HOSE	1
?	PC0119	SEAL, ADAPTER	1
?	PC0122	ADAPTER, METRIC TO JIC	1
?	TG3393	FITTING, ELBOW - 90 DEG	1
?	VX1156	NUT - 1" - 8NC	8
?	VC7828	LOCKWASHER - 1"	8
?	PB9775	MOUNT, RUBBER	8
?	EF9535	WASHER (SPECIAL)	8
?	WA4732	FLAT WASHER - 1" (HARDENED)	8
?	VN4393	CAPSCREW - 1" - 8NC X 6"	8
?		NOTE: NS = NOT SHOWN	-1
?	XA3847	ELEMENT, FUEL FILTER/WATER SEPARATOR	3
?	XA2134	ELEMENT, WATER CORROSION RESISTOR	2
?	XA2215	ELIMINATOR FILTER ASSEMBLY	1
?	XA2216	FILTER HOUSING KIT	1
?	XA2217	CENTRIFUGE SERVICE KIT	1
