AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EK8720	CONDENSER	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	8
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	24
?	TG9225	LOCKNUT - 3/8" - 16NC	8
?	WB1304	CLAMP, CUSHIONED - 9/16"	13
?	MM0461	FLAT WASHER - M10	23
?	MM0178	NUT - M10 X 1.50	20
?	HA7876	HOSE (TO CAB OUTLET)	1
?	EK8761	MOUNT, CONDENSER	1
?	HA7993	HOSE (FROM CONDENSER)	1
?	WB3091	CLAMP, CUSHIONED - 11/16"	9
?	C1605	CAPSCREW - 3/8" - 16NC X 1 3/4"	1
?	TR4436	FLAT WASHER - 3/8"	1
?	HA7994	HOSE (FROM COMPRESSOR)	1
?	WA1732	O-RING	1
?	VY9850	MOUNT, RUBBER	4
?	C1616	CAPSCREW - 1/2" - 13NC X 2"	4
?	DA0557	WASHER (SPECIAL)	8
?	PC1804	SWITCH, PRESSURE	1
?	WA1731	O-RING - 5/16" I.D.	4
?	PC1341	BRACKET, DRIER	1
?	MM0027	CAPSCREW - M6 X 1.00 X 25	4
?	MM0459	FLAT WASHER - M6	4
?	PB8689	DRIER, RECEIVER	1
?	PB7619	ADAPTER	1
?	WB3093	CLAMP, CUSHIONED - 1"	12
?	MM0471	LOCKWASHER - M10	19
?	WA1733	O-RING - 9/16" I.D.	1
?	EM0721	HARNESS, EXTERNAL ENGINE	1
?	HA8065	HOSE (TO ACCUMULATOR)	1
?	HA8066	HOSE (TO COMPRESSOR)	1
?	WB1027	O-RING	2
?	PC1830	ACCUMULATOR	1
?	20D0911130	CLAMP, T-BOLT	2
?	892124C1	SPACER	1
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	2
?	HE5611	LOCKNUT - 3/8" - 16NC	2
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	2
?	TC1231	LOCKWASHER - 3/8"	2
?	TC1233	NUT - 3/8" - 16NC	4
?	08193-21012	CLIP	1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

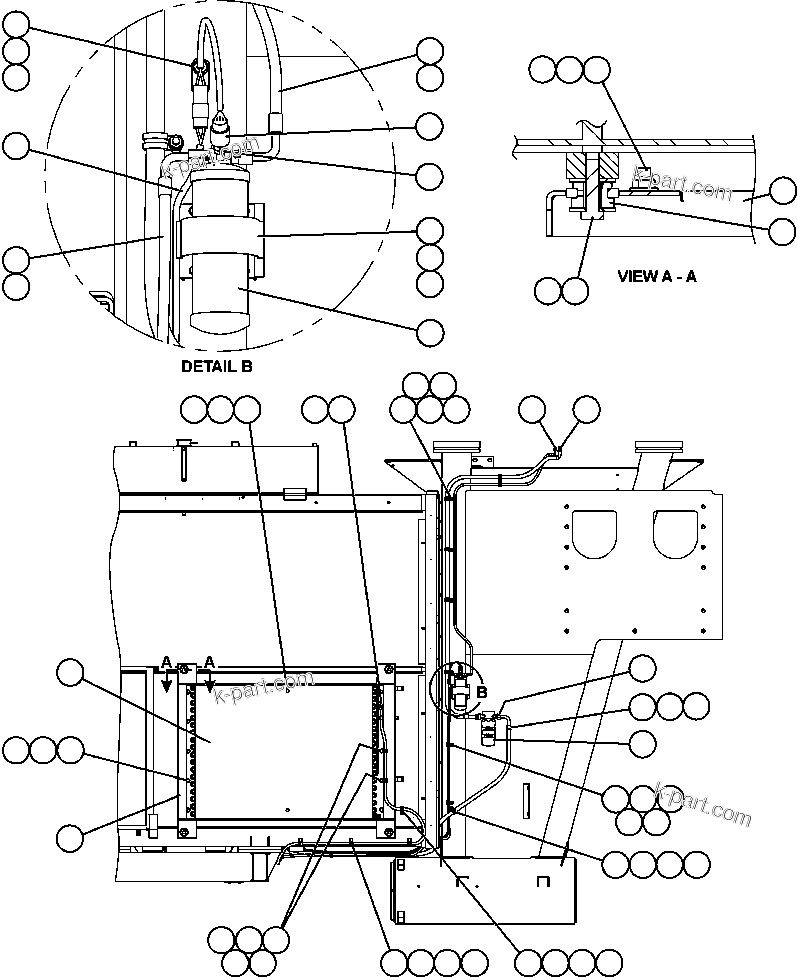

AIR CONDITIONER PIPING & INSTALLATION (61161) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
