AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	GE1010	BRACKET, SUPPORT	1
?	GE1011	INTERLOCK, MECHANICAL	1
?	GE1012	LATCH SPRING, ARC CHUTE	1
?	GE1013	LEVER	1
?	GE1014	HOLD-ON IRON	1
?	GE1015	SCREW, SELF-TAPPING - #10	1
?	GE1016	FLAT WASHER - 5/16"	4
?	GE1017	LOCKWASHER - 5/16"	2
?	GE1018	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/2"	2
?	GE1019	TERMINAL, PIVOT	1
?	GE1020	SPRING, LEAF	1
?	GE1021	LOCKWASHER	2
?	GE1022	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/4"	2
?	GE1023	SPRING, WIPE	3
?	GE1024	SPRING, PIVOT	3
?	GE1025	CAP, PIVOT SPRING	3
?	VJ6523	CONTACT, STATIONARY - 1 PIECE	3
?	VJ3236	CONTACT, STATIONARY - 2 PIECE, LOWER	3
?	VJ3235	CONTACT, STATIONARY - 2 PIECE, UPPER	3
?	GE1026	LOCKWASHER - #10	3
?	VE7247	CAPSCREW, SOCKET HEAD - #10 - 32NF X 7/8"	3
?	GE0696	KIT, ARC CHUTE	1
?	GE1052	LOCKWASHER - 1/4"	1
?	C1520	NUT - 5/16" - 18NC	1
?	GE1028	LOCKWASHER - 5/16"	2
?	GE1029	PLATE, POLE	2
?	GE1022	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1 1/4"	2
?	GE1017	LOCKWASHER - 5/16"	2
?	GE1030	KIT, BLOW OUT COIL	1
?	GE1031	CAPSCREW - 3/8" - 16NC X 1 1/4"	2
?	GE1032	FLAT WASHER - 3/8"	2
?	GE1033	CORE, MAGNET	1
?	GE1034	SHEET, INSULATING	1
?	GE1035	SPACER, INSULATING	2
?	GE1036	CAPSCREW - 5/16" - 18NC X 4 1/2"	1
?	GE1037	SCREW, FLAT HEAD - 3/8" - 16NC X 1"	1
?	GE1038	LOCKWASHER, COUNTERSUNK	1
?	GE1039	YOKE	1
?	GE1040	SCREW, SOCKET HEAD - 5/16" - 18NC X 1"	2
?	GE1017	LOCKWASHER - 5/16"	2
?	GE1041	TERMINAL, BOTTOM	1
?	GE1042	GUIDE, ARMATURE	1
?	GE1043	COIL	1
?	GE1044	CORE, MAGNET	1
?	GE1045	PLATE, POLE	1
?	VJ5672	LOCKWASHER, COUNTERSUNK - 1/4"	1
?	GE1046	SCREW - 1/4" - 20NC X 1/4"	1
?	GE1047	SETSCREW - 1/4" - 20NC X 1/4"	2
?	GE1048	PIN, SHOULDER	2
?	GE1049	ARMATURE ASSEMBLY	1
?	GE1050	OPEN STOP	1
?	GE1051	SCREW, SOCKET HEAD - 1/4" - 20NC X 1"	2
?	GE1052	LOCKWASHER - 1/4"	2
?	GE1053	CONTACT, MOVABLE	1
?	GE1054	SUPPORT, MOVABLE CONTACT	1
?	GE1055	MAGNET, HOLD-ON	1
?	GE1056	SPRING, CONTACT	2
?	GE1057	"X" WASHER	2
?	GE1058	BRACKET, SUPPORT	1
?	GE1059	SCREW - #10 - 32NF X 3/8"	2
?	GE1026	LOCKWASHER - #10	2
?	GE1060	SUPPORT, INTERLOCK	1
?	GE1061	SCREW - #10 - 32NF X 3/8" (SPECIAL)	2
?	GE1062	SPRING, RETURN	2
?	GE1063	SWITCH, INTERLOCK	1
?	GE1064	LEVER, OPENING	1
?	GE1065	LOCKWASHER - #10	1
?	GE1066	CAPSCREW - 1/4" - 20NC X 1"	1
?	GE1067	OPERATOR, INTERLOCK	1
?	GE1068	WASHER, BELLEVILLE	1
?	GE1051	SCREW, SOCKET HEAD - 1/4" - 20NC X 1"	2
?	GE1052	LOCKWASHER - 1/4"	2
?	GE1069	SCREW, SOCKET HEAD - 1/4" - 20NC X 1/2"	1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

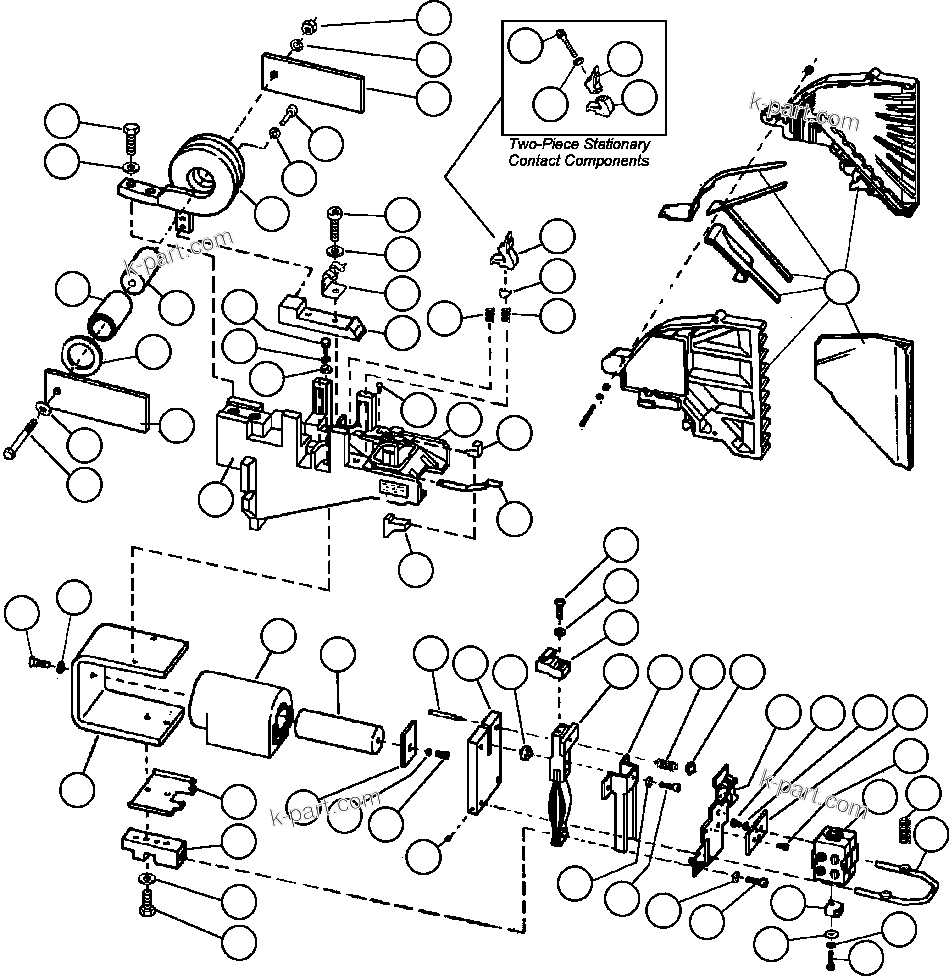

CONTROL CABINET - DOORS & COVERS 2/2 (GE1767) (64227) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
