AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB6850	AIR CLEANER ASSEMBLY (SEE INDEX)	2	14491
?	TB1406	GUARD, RAIN - FRONT	2
?	TB1018	GUARD, RAIN - R.H.	2
?	TB1019	GUARD, RAIN - L.H.	2
?	C1641	CAPSCREW - 5/8" - 11NC X 4 1/2"	26
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	26
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	8
?	TR9082	FLAT WASHER - 5/8"	8
?	VC1390	LOCKWASHER - 5/8"	8
?	EH2861	TUBE, OUTER REAR - R.H.	1
?	EH2858	TUBE, OUTER FRONT - R.H.	1
?	EH4477	TUBE, INNER REAR - R.H.	1
?	EH4479	TUBE, INNER FRONT - R.H.	1
?	VW7882	HOSE, HUMP	2
?	WB1177	CLAMP, T-BOLT	24
?	WB1170	CLAMP, T-BOLT	8
?	WB1144	ELBOW, REDUCING - 36 DEG	2
?	WB1169	CLAMP, T-BOLT	4
?	PB2484	ELBOW - 45 DEG	2
?	EH4483	TUBE, INNER FRONT - L.H.	1
?	EH4481	TUBE, INNER REAR - L.H.	1
?	EH2864	TUBE, OUTER FRONT - L.H.	1
?	EH2867	TUBE, OUTER REAR - L.H.	1
?	TX6040	ELBOW - 45 DEG	2
?	WB1179	CLAMP, T-BOLT	8
?	EJ9919	BRACKET, LONG	2
?	EJ9920	BRACKET, SHORT	2
?	MM0617	CAPSCREW - M12 X 1.75 X 25	8
?	MM0462	FLAT WASHER - M12	8
?	MM0472	LOCKWASHER - M12	8
?	EJ9916	ROD, THREADED	1
?	EJ9917	ROD, THREADED	1
?	PC1247	ROD END, FEMALE (SPECIAL)	26
?	TL8151	JAM NUT - 1/2" - 20NF	26
?	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	24
?	WA4728	FLAT WASHER - 1/2" (HARDENED)	52
?	DF3500	LOCKNUT - 1/2" - 13NC	26
?	EJ9909	CLAMP	13
?	EJ9915	ROD, THREADED	1
?	EJ9910	ROD, THREADED	5
?	EJ9914	ROD, THREADED	1
?	TA6490	CLAMP ASSEMBLY	2
?	TA6483	CLAMP	2
?	TA6491	U-BOLT - 3/8" - 16NC	2
?	C0312	LOCKWASHER - 3/8"	4
?	C1521	NUT - 3/8" - 16NC	4
?	EJ2439	BAR	1
?	EJ9913	ROD, THREADED	1
?	EJ9912	ROD, THREADED	1
?	EJ9911	ROD, THREADED	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	2
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0713	FLAT WASHER - M10 (HARDENED)	2
?	EJ9918	ANGLE	1
?	EG7576	CLAMP, DOUBLE	2
?	TD0792	CAPSCREW - 3/8" - 16NC X 2 1/4"	3
?	WA4726	FLAT WASHER - 3/8" (HARDENED)	3
?	HE5611	LOCKNUT - 3/8" - 16NC	3
?	PC1115	HOSE, DOUBLE HUMP	4

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

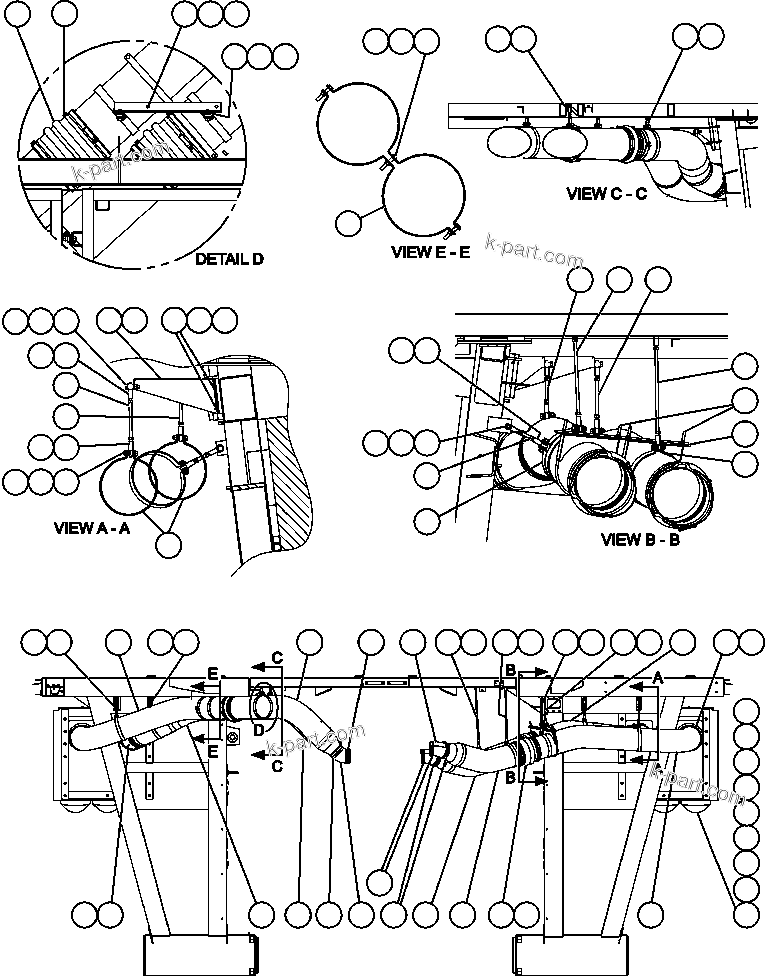

AIR CLEANER PIPING & INSTALLATION (60712) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
