AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EJ6749	PISTON AND HOUSING ASSEMBLY	1
?	EJ6748	HOUSING, PISTON	1
?	PC1143	SEAL	1
?	PC1144	SEAL	1
?	EG4953	PISTON	1
?	PB8864	SPRING	12
?	ED3327	GUIDE, SPRING	12
?	VL1222	CAPSCREW - 1/2" - 13NC X 5"	12
?	VM0317	PLUG, O-RING	1
?	EH5308	DAMPER	2
?	EH5306	DISC, SEPARATOR	9
?	EH5307	DISC, FRICTION	10
?	ED3343	GEAR, INNER	1
?	PC0651	SEAL ASSEMBLY	1
?	BF4837	SEAL, TORIC	2
?	BF4116	RING, SEAL	2
?	BF4117	TOOL, INSTALLATION (2)	1
?	EK5888	CARRIER, SEAL	1
?	D2930	CAPSCREW, SOCKET HEAD - 1/2" - 13NC X 3/4" (1)	6
?	EL9170	PLATE, BACK	1
?	WA1589	CAPSCREW - 7/8" - 9NC X 3" (12 PT)	102
?	WA5659	FLAT WASHER - SPECIAL (HARDENED)	102
?	EH7197	SEAL, O-RING	2
?	ED3339	GEAR, RING	1
?	PC1431	SEAL, OIL	1
?	EL9501	BRACKET, MOUNTING	6
?	C1612	CAPSCREW - 1/2" - 13NC X 1"	12
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	12
?		NOTE: (1) USED FOR ASSEMBLY AND STORAGE ONLY.	-1
?		REMOVE WHEN INSTALLED ON THE TRUCK.	-1
?		(2) NOT INCLUDED IN SEAL ASSEMBLY.	-1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

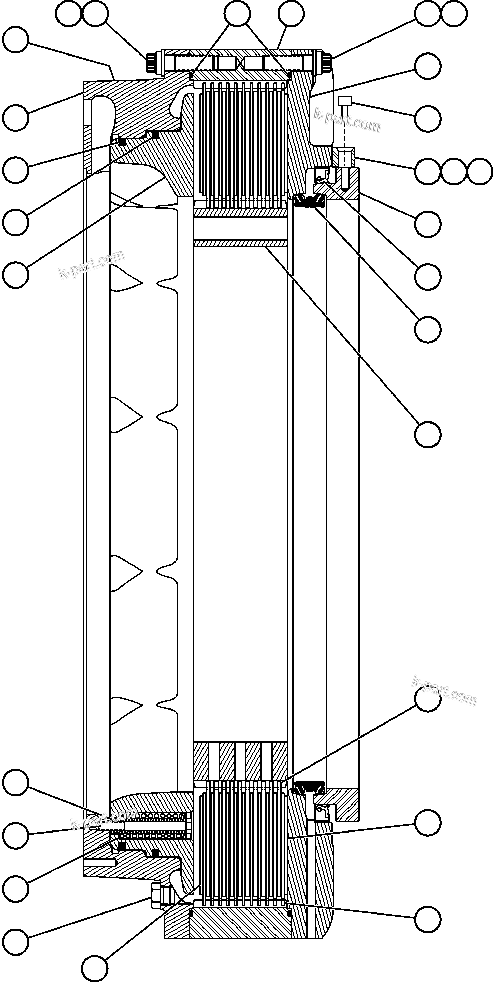

FRONT BRAKE ASSEMBLY (WET DISC) (EL9160) (61087) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
