AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC1493	VALVE, BLEED DOWN MANIFOLD (SEE INDEX)	1	60405
?	EJ2745	TUBE	1
?	EJ2746	TUBE	1
?	VM0317	PLUG, O-RING	2
?	WB0586	FITTING, STRAIGHT	1
?	HA7828	HOSE	1
?	HA7690	HOSE	1
?	VM0313	PLUG, O-RING BOSS	6
?	WB0584	FITTING, STRAIGHT	2
?	HA7688	HOSE	1
?	WB0499	FITTING, ELBOW - 90 DEG	1
?	HA7331	HOSE	1
?	WB0508	FITTING, ELBOW - 90 DEG	7
?	HA5582	HOSE	1
?	VM0315	PLUG, O-RING	2
?	VM0314	PLUG, O-RING BOSS	2
?	PB6770	COUPLING, MALE QUICK DISCONNECT	2
?	TF3237	CLAMP, SPLIT FLANGE	14
?	VG9096	O-RING	10
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	28
?	C5775	LOCKWASHER - 7/16"	31
?	VM0319	PLUG, O-RING BOSS - 1"	2
?	WA5630	CLAMP, FLANGE - 1 1/4"	2
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	C1540	LOCKWASHER - 1/2"	4
?	SR7222	CAPSCREW - 5/8" - 11NC X 8"	4
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	C1541	LOCKWASHER - 5/8"	4
?	C1525	NUT - 5/8" - 11NC	4
?	603517C1	PLUG, FLANGE - 1"	1
?	TF8077	CLAMP, SPLIT FLANGE	8
?	VG9097	O-RING	4
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	16
?	PC2162	VALVE, FLOW AMPLIFIER	1
?	WB0574	FITTING, STRAIGHT	1
?	PB1255	FLAT WASHER - 7/16" (HARDENED)	3
?	C1608	CAPSCREW - 7/16" - 14NC X 1"	3
?	PC2208	FITTING	1
?	PC1677	SWITCH, PRESSURE	1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

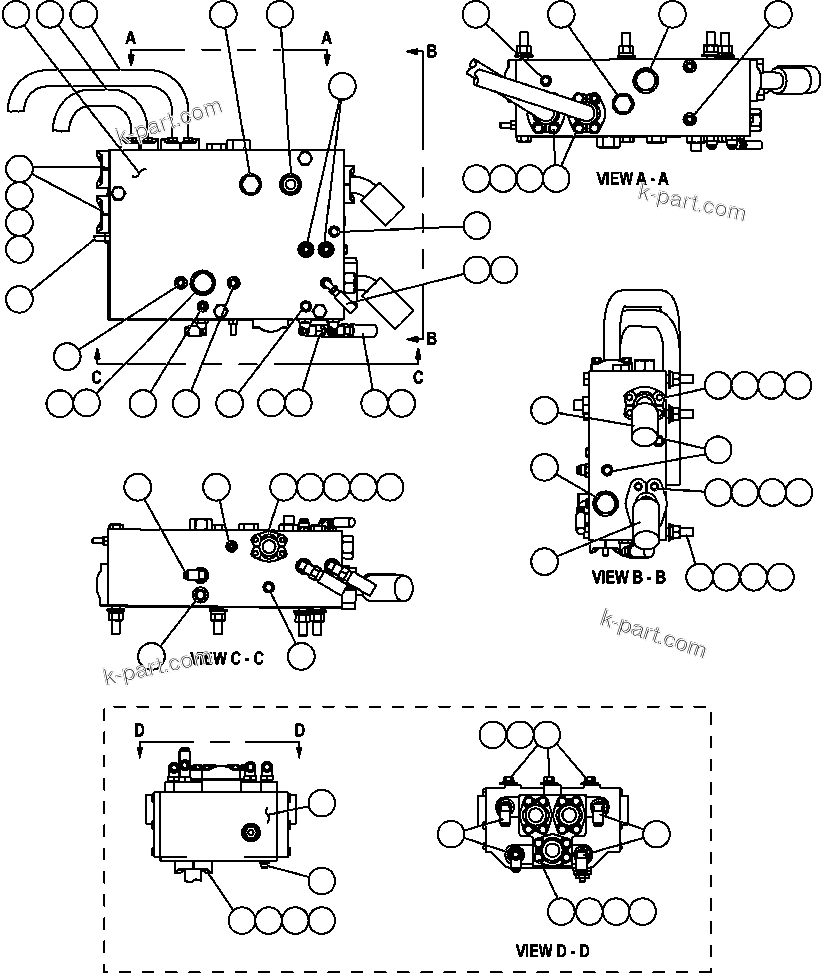

STEERING SYSTEM PIPING ( 2/3) (61332) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
