AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EM3891	HANDRAIL, DIAGONAL LADDER	1
?	MM0012	CAPSCREW - M16 X 2.00 X 25	16
?	MM0706	FLAT WASHER - M16 (HARDENED)	16
?	EM0326	HANDRAIL, R.H. PLATFORM	1
?	EM0823	HANDRAIL, R.H. PLATFORM - FRONT	1
?	MM0618	CAPSCREW - M12 X 1.75 X 30	12
?	MM0714	FLAT WASHER - M12 (HARDENED)	76
?	MM0472	LOCKWASHER - M12	48
?	EL6441	HANDRAIL, STEPS	2
?	EL6443	HANDRAIL, STEPS	2
?	MM0619	CAPSCREW - M12 X 1.75 X 35	38
?	MM0179	NUT - M12 X 1.75	22
?	EM0820	HANDRAIL, L.H. PLATFORM	1
?	EM0818	HANDRAIL, L.H. PLATFORM - FRONT	1
?	EL0874	HANDRAIL, VERTICAL LADDER - LOWER	2
?	EM1406	HANDRAIL, VERTICAL LADDER - UPPER	2
?	EM0321	HANDRAIL, VERTICAL LADDER - R.H. SIDE	1
?	EM0345	HANDRAIL, VERTICAL LADDER - L.H. SIDE	1
?	EM3823	GATE	2
?	MM0623	CAPSCREW - M12 X 1.75 X 60	4
?	MM0694	LOCKNUT - M12 X 1.75	4
?	EM3863	HANDRAIL, DIAGONAL LADDER PLATFORM	1
?	EM3862	HANDRAIL, GRILLE	1
?	MM0624	CAPSCREW - M12 X 1.75 X 70	2
?	MM0462	FLAT WASHER - M12	4
?	EL3986	SPACER	2
?	PC2322	SPRING, GATE LATCH - L.H.	1
?	PC2325	SPRING, GATE LATCH - R.H.	1
?	EM0558	PLATE, BENT	2
?	EM0561	PLATE, BENT	2
?	EM3894	CLAMP	3

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

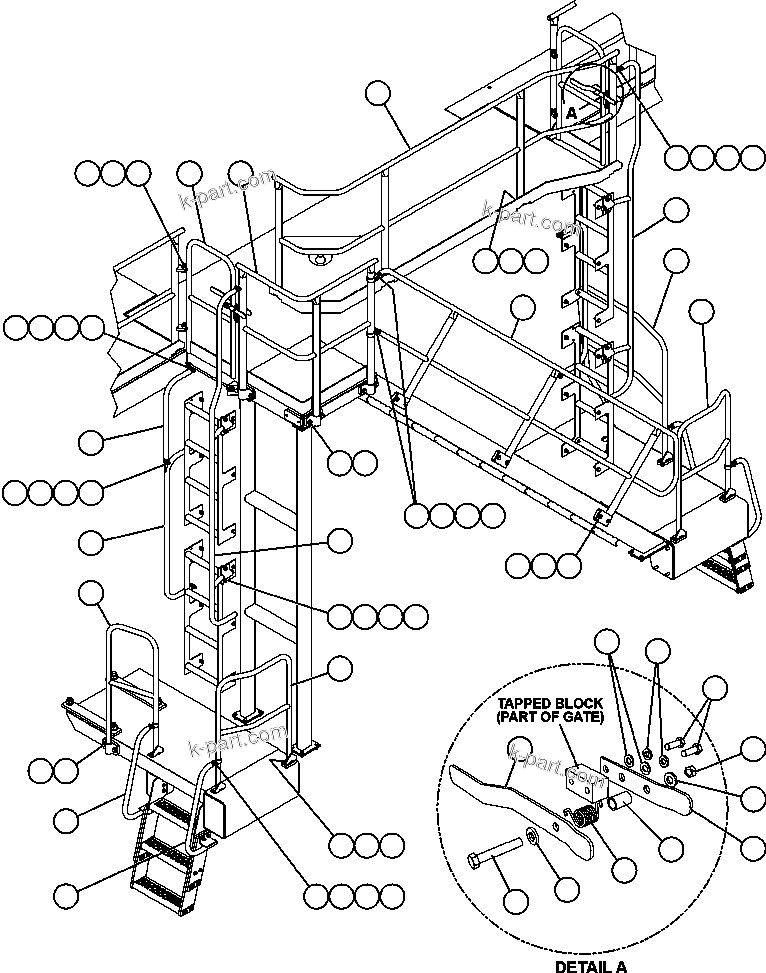

HANDRAILS - LADDERS, STEPS & PLATFORMS (61237) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
