AFE59-BJ 930E-4 S/N A30694, A30695, A30698, A30709 & A30723 DOWNER EDI MINING

27 27 18 18 16 22 29 26 20 16 24 3 24 3 26 29 3 30 17 25 17 15 21 23 1 28 28 19 14 15 25 2 23 2 5 34 8 12 12 4 13 33 31 6 9 32 7 10 9 11 6 7 9

#	Part Number	Partname	Quantity
1	TA4411	INJECTOR, REAR (5 PIECE) (1)	1
1	XA2520	NIPPLE & CAP ASSEMBLY	5
2	VW7989	INJECTOR (REAR) (4-PIECE) (1)	2
2	XA2520	NIPPLE & CAP ASSEMBLY	8
3	VW7990	CAP, PROTECTIVE	13
4	WB0252	FITTING, ELBOW - 90 DEG	13
5	EJ4053	PLATE, MOUNTING	1
6	MM0606	CAPSCREW - M10 X 1.50 X 30	6
7	MM0471	LOCKWASHER - M10	12
8	MM0611	CAPSCREW - M10 X 1.50 X 60	6
9	MM0461	FLAT WASHER - M10	12
10	MM0178	NUT - M10 X 1.50	6
11	EG0583	PLATE, COVER (REAR INJECTORS)	1
12	TB8803	NIPPLE, PIPE - 3/8"	2
13	WB0262	FITTING, ELBOW - 90 DEG	1
14	HA6448	HOSE (TO JUNCTION AT HORSECOLLAR)	1
15	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
16	WB0531	FITTING, ELBOW - 45 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
17	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
18	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
19	HA0570	HOSE (TO R.H. END OF SWAY BAR)	1
20	WB0281	FITTING, ELBOW - 45 DEG (AT R.H. END OF SWAY BAR)	1
21	HA1413	HOSE (TO L.H. END OF SWAY BAR)	1
22	WB0281	FITTING, ELBOW - 45 DEG (AT L.H. END OF SWAY BAR)	1
23	HA0197	HOSE (TO TOP OF REAR SUSPENSIONS)	2
24	WB0499	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
25	VD4661	HOSE (TO BODY PIVOT PINS)	2
26	WB0284	FITTING, ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
27	HC1580	BUSHING, PIPE - 1/8" X 1/4" (AT BODY PIVOT PINS)	2
28	HA0394	HOSE (TO TOP OF HOIST CYLINDERS)	2
29	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF HOIST CYLINDERS)	2
30	HA8283	HOSE (TO DRIVE CASE PIVOT)	1
31	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
32	R2508	FITTING, TEE	1
33	R2510	NIPPLE	1
34	PC1654	SWITCH, PRESSURE	1
NS\|37		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1

Komatsu AFE59-BJ 930E-4 S/N A30694, A30695, A30698, A30709 & A30723 DOWNER EDI MINING parts catalog PDF

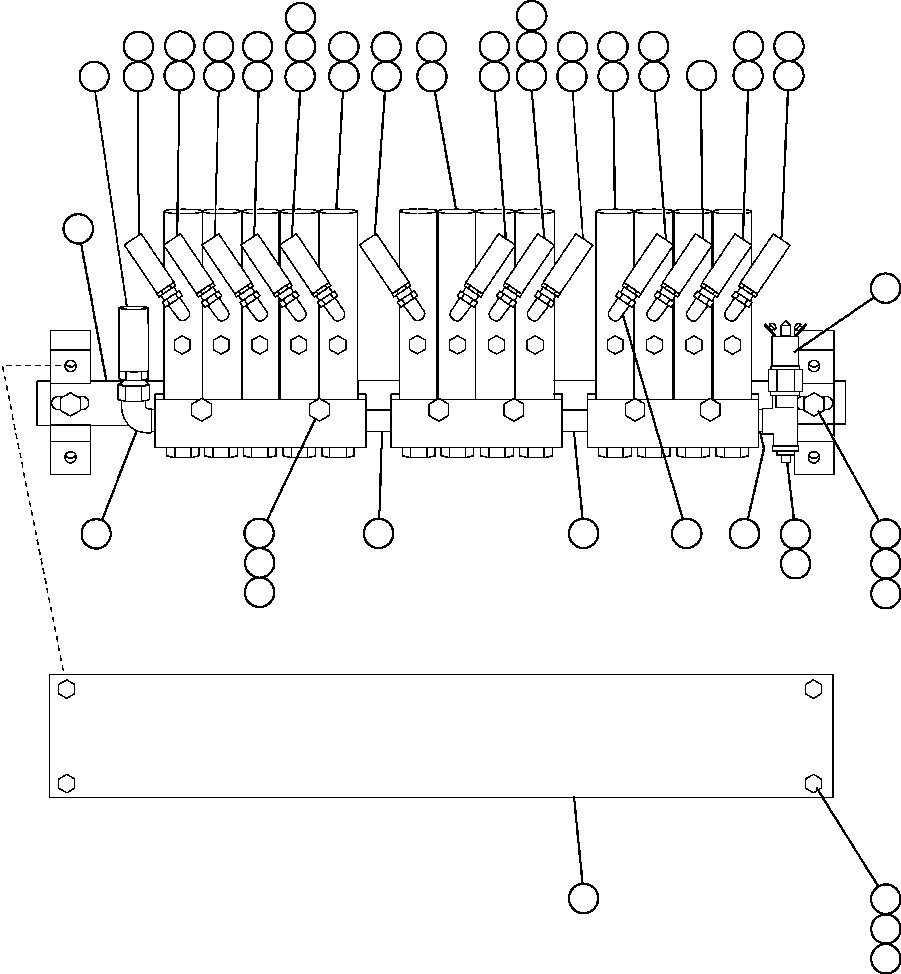

AUTOMATIC LUBRICATION SYSTEM - REAR AXLE (61293) in AFE59-BJ 930E-4 S/N A30694, A30695, A30698, A30709 & A30723 DOWNER EDI MINING. Diagram image and parts list.
