AFE59-BJ 930E-4 S/N A30694, A30695, A30698, A30709 & A30723 DOWNER EDI MINING

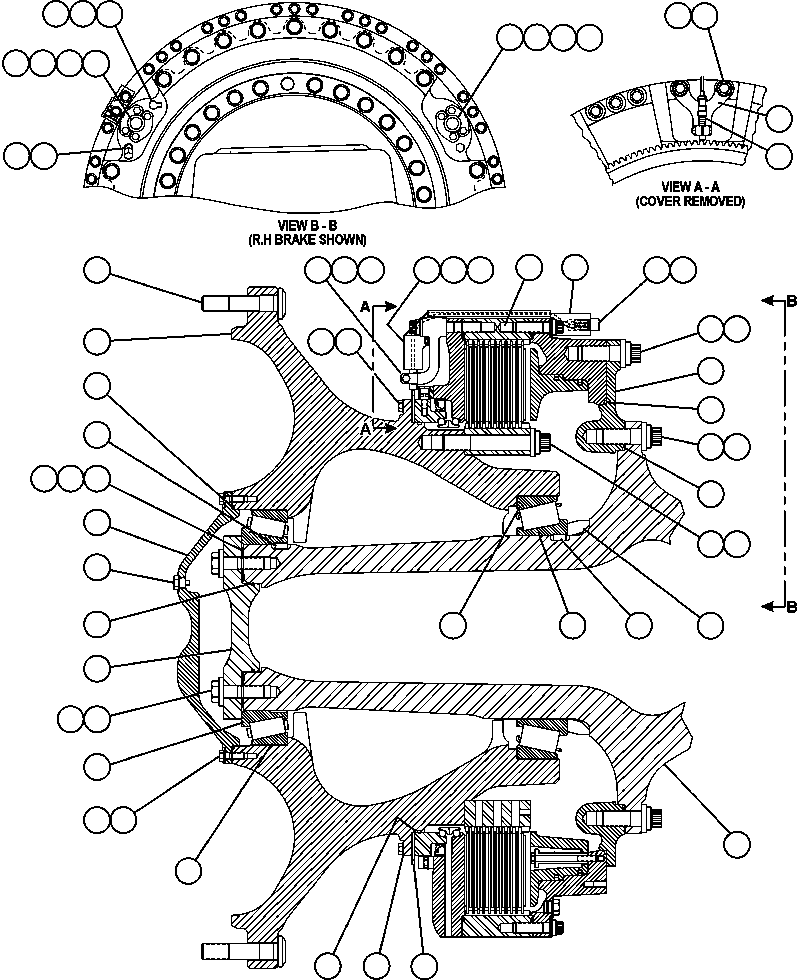

54 53 52 47 46 48 49 50 51 51 50 49 48 34 44 43 45 33 40 2 34 35 36 37 38 39 41 42 25 28 1 32 31 30 3 29 23 25 28 6 5 4 27 7 25 26 8 9 21 22 23 24 10 12 11 13 15 14 20 16 17 18 19

#	Part Number	Partname	Quantity	Reference
0	EL9162	SPINDLE, HUB AND BRAKE ASSEMBLY	1
1	EM4976	HUB ASSEMBLY	1
1	EJ6978	HUB, WHEEL	1
2	EH0826	STUD W/ HEAD	57
3	EH7192	O-RING (1)	1
4	EL2876	SHIM - .005 (1)	3
5	EL2877	SHIM - .007 (1)	4
6	EL2878	SHIM - .020 (1)	6
7	EH9522	COVER	1
8	WB1199	PLUG, MAGNETIC	1
9	EH7190	O-RING (1)	1
10	EJ9389	RETAINER, BEARING	1
11	TY2148	FLAT WASHER - 1" (HARDENED)	8
12	VM8258	CAPSCREW - 1" - 8NC X 3 3/4"	8
13	PC1424	CONE, ROLLER (TAPERED) (1)	1
14	C1540	LOCKWASHER - 1/2"	12
15	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	12
16	PC0521	CUP, ROLLER (TAPERED) (1)	1
17	EH7195	SEAL, O-RING (1)	1
18	ED3755	SHIM - .020 (1)	54
19	EJ7475	GEAR, SPEED SENSOR	1
20	EG7694	SPINDLE	1
21	PB9996	CONE, ROLLER (TAPERED) (1)	1
22	PC0002	CUP, ROLLER (TAPERED) (1)	1
23	56222-32290	PIN	2
24	ED3772	SPACER, BEARING	1
25	TY2149	FLAT WASHER (HARDENED)	89
26	WA5660	CAPSCREW - 1 1/4" - 12NF X 7 1/2" (12 PT)	32
27	EH7194	O-RING (1)	1
28	WA5669	CAPSCREW - 1 1/4" - 12NF X 3 1/2" (12 PT)	57
29	EH7196	SEAL, O-RING (1)	1
30	ED3775	ADAPTER, BRAKE	1
31	WA0360	FLAT WASHER - 1/2" (HARDENED)	12
32	VN9095	CAPSCREW - 1/2" - 13NC X 2 3/4"	12
33	EL9160	FRONT BRAKE ASSEMBLY (SEE INDEX)	1	61087
34	EL2883	MOUNT, SENSOR	1
35	VN9055	CAPSCREW - 3/8" - 16NC X 1 3/4"	1
36	HE5611	LOCKNUT - 3/8" - 16NC	1
37	EL2884	COVER, SENSOR	1
38	C1602	CAPSCREW - 3/8" - 16NC X 1"	2
39	C0312	LOCKWASHER - 3/8"	2
40	EG1768	BRACKET	1
41	SM2117	PLATE, NUT CONNECTOR	1
42	WA5642	MACHINE SCREW - #4 - 40NC X 1/2"	4
43	WA2567	FITTING, CAPNUT	1
44	WB0537	FITTING, ELBOW - 45 DEG	1
45	EL3825	SENSOR, SPEED	1
46	WA5659	FLAT WASHER - SPECIAL (HARDENED)	2
47	WA0961	CAPSCREW - 7/8" - 9NC X 5" (12 PT)	2
48	C1540	LOCKWASHER - 1/2"	8
49	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
50	TF8090	CLAMP, SPLIT FLANGE	4
51	WA3574	O-RING	2
52	WB1057	REDUCER	1
53	PB6528	COUPLING, DIAGNOSTIC	1
54	PB6041	CAP, DUST	1
NS\|57	AK4320	NOTE: (1) INCLUDED IN AK4320 SPINDLE MAINTENANCE KIT.	-1
NS\|58		(QUANTITIES SHOWN ARE FOR ONE SIDE ONLY.)	-1
