AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

6 36 37 23 33 5 38 22 4 3 17 2 18 1 19 34 13 39 14 35 15 23 12 21 11 10 20 32 27 26 25 31 24 46 23 61 16 42 30 43 29 28 44 24 54 45 9 55 8 43 7 42 51 40 56 5 41 64 49 48 50 63 62 53 60 61 58 66 65 59 57 55 27 47 52

#	Part Number	Partname	Quantity
1	BF4962	LOCKNUT - 5/8" - 18NF (2)/(3)	1
2	BF4963	WASHER, BELLEVILLE (2)/(3)	1
3		PULLEY (1)	1
4	BF4957	BUSHING, PULLEY	1
5	BF4864	RING, RETAINING (3)	2
6	BF1970	PLATE, COVER	1
7	BF1989	RING, RETAINING - BEVELED (2)/(3)	1
8	BF4865	BEARING, FRONT	1
9	BF1988	RING, RETAINING - BEVELED (2)/(3)	1
10	XA2098	HOUSING, DRIVE END	1
11	XA3295	COVER, CONTROL UNIT	1
12	XA3302	SWITCH, THERMAL	1
13	XA2113	CAPSCREW - 1/2" - 13NC X 1" (2)/(3)	1
14	XA3312	LOCKWASHER - 1/2" (3)	1
15	XA3313	FLAT WASHER - 1/2" (3)	1
16	XA0188	COVER, STUD ASSEMBLY	1
17	BF4967	CAPSCREW - M12 X 1.75 X 25 (2)/(3)	1
18	BF4966	LOCKWASHER - M12 (2)/(3)	1
19	BF1996	FLAT WASHER - M12 (2)/(3)	1
20	XA3601	SHELL, CONNECTOR - MALE	1
21	XA3602	SHELL, CONNECTOR - FEMALE	1
22	XA2130	HARNESS	1
23	XA2112	SCREW - #8 - 32NC X 3/8" (2)/(3)	15
24	XA2122	JAM NUT - 1/4" - 28NF (2)/(3)	18
25	XA2121	FLAT WASHER - 1/4" (2)/(3)	12
26	XA2120	INSULATOR (3)	12
27	BF2002	LOCKNUT - #8 - 32NC (2)/(3)/(4)	18
28	BF4973	FLAT WASHER - 1/4" (2)/(3)	6
29	BF4969	CAPSCREW - M10 X 1.50 X 20 (2)/(3)	2
30	BF4968	LOCKWASHER - M10 (2)/(3)	2
31	BF4980	LOCKWASHER - 3/8" (2)/(3)	1
32	BF4979	CAPSCREW - M10 X 1.40 X 20 (2)/(3)	1
33	XA2109	REGULATOR	1
34	XA2117	LOCKNUT - M6 X 1.00 (2)/(3)	2
35	XA2116	WASHER, BELLEVILLE (2)/(3)	1
36	BF4970	SCREW, HEX HEAD - M5 X 0.8 X 12 (2)/(3)	4
37	XA2114	WASHER, BELLEVILLE (3)	2
38	XA2118	WASHER, BELLEVILLE (2)/(3)	2
39	XA2115	NUT - M5 X 0.8 (2)/(3)	1
40	BF4860	BUSHING, PULLEY	1
41	XA2099	SHAFT & CORE, ROTOR ASSEMBLY	1
42	BF3719	CAPSCREW - #10 - 32NF X 1/2" (2)/(3)	12
43	XA2100	ROTOR ASSEMBLY	2
44	XA2101	SHAFT & CORE ASSEMBLY	1
45	BF1999	KEY, WOODRUFF - 5/32" X 3/4" (2)/(3)	1
46	XA2102	RING, CARRIER	1
47	XA2104	FIELD COIL ASSEMBLY	1
48	BF1981	BUSHING, TENSION	1
49		SHELL (2)	1
50	XA2105	STATOR, DRIVE END	1
51	XA2106	STATOR, ANTI-DRIVE END	1
52	BF3723	NUT - #8 - 32NC (2)/(3)/(5)	9
53	BF4978	WEDGE, STATOR (5)	6
54	XA3304	COIL, FIELD	1
55	BF3722	SCREW, PAN HEAD - #8 - 32NC X 3"	16
56	BF1980	STUD - #8 - 32NC X 8 5/8"	9
57	XA2108	BEARING, ANTI-DRIVE END	1
58	XA2107	HOUSING, ANTI-DRIVE END	1
59	XA2110	O-RING (3)	2
60	XA2096	FAN	1
61	XA2103	RING, SPIRAL (3)	2
62	BF4975	WASHER, BELLEVILLE (2)/(3)	1
63	BF4976	NUT - M16 X 1.50 (2)/(3)	1
64	XA2097	GUARD, FAN	1
65	BF4977	SCREW - M5 X 0.8 X 25 (2)/(3)	6
66	XA2119	GROMMET	6
NS\|67		NOTE: (1) SUPPLIED WITH ENGINE.	-1
NS\|68		(2) NOT SERVICED SEPARATELY.	-1
NS\|69		(3) INCLUDED IN XA3306 SMALL GOODS PACKAGE.	-1
NS\|70		(4) ALSO INCLUDED IN XA2107 ANTI-DRIVE END HOUSING.	-1
NS\|71		(5) ALSO INCLUDED IN XA2105 DRIVE END STATOR &	-1
NS\|72		XA2106 ANTI-DRIVE END STATOR.	-1

Komatsu AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY parts catalog PDF

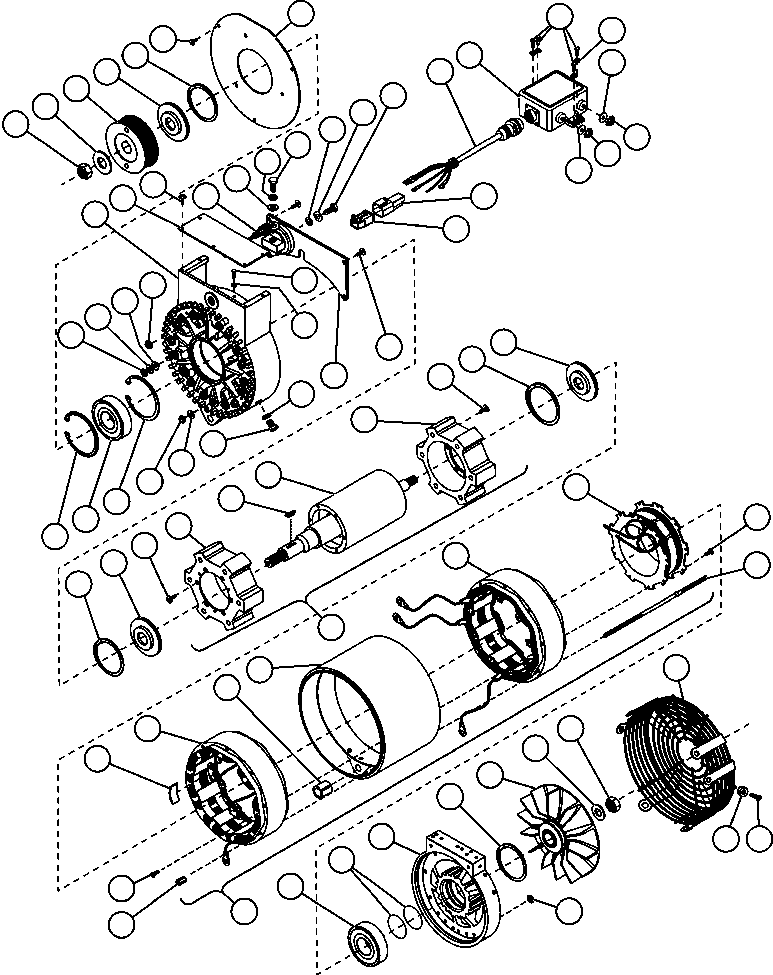

BATTERY CHARGING ALTERNATOR (XA3319) (61065) in AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY. Diagram image and parts list.
