AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TA4411	INJECTOR, REAR (5 PIECE) (1)	1
?	XA2520	NIPPLE & CAP ASSEMBLY	5
?	VW7989	INJECTOR, REAR (4 PIECE) (1)	2
?	XA2520	NIPPLE & CAP ASSEMBLY	8
?	VW7990	CAP, PROTECTIVE	13
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	EJ4053	PLATE, MOUNTING	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	6
?	MM0471	LOCKWASHER - M10	12
?	MM0611	CAPSCREW - M10 X 1.50 X 60	6
?	MM0461	FLAT WASHER - M10	12
?	MM0178	NUT - M10 X 1.50	6
?	EG0583	PLATE, COVER (REAR INJECTORS)	1
?	TB8803	NIPPLE, PIPE - 3/8"	2
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	HA6448	HOSE (TO JUNCTION AT HORSECOLLAR)	1
?	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0531	FITTING, ELBOW - 45 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
?	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
?	DC5608	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING, PIPE (AT BOTTOM OF HOIST CYLINDERS)	2
?	HA1413	HOSE (TO L.H. END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT L.H. END OF SWAY BAR)	1
?	HA0197	HOSE (TO TOP OF REAR SUSPENSIONS)	2
?	WB0499	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
?	VD4661	HOSE (TO BODY PIVOT PINS)	2
?	WB0284	FITTING, ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
?	HC1580	BUSHING, PIPE - 1/8" X 1/4" (AT BODY PIVOT PINS)	2
?	HA0394	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF HOIST CYLINDERS)	2
?	HA0570	HOSE (TO R.H. END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT R.H. END OF SWAY BAR)	1
?	HA8283	HOSE (TO DRIVE CASE PIVOT)	1
?	R2510	NIPPLE	1
?	PC1295	SWITCH, PRESSURE	1
?	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
?	R2508	FITTING, TEE	1
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1

Komatsu AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY parts catalog PDF

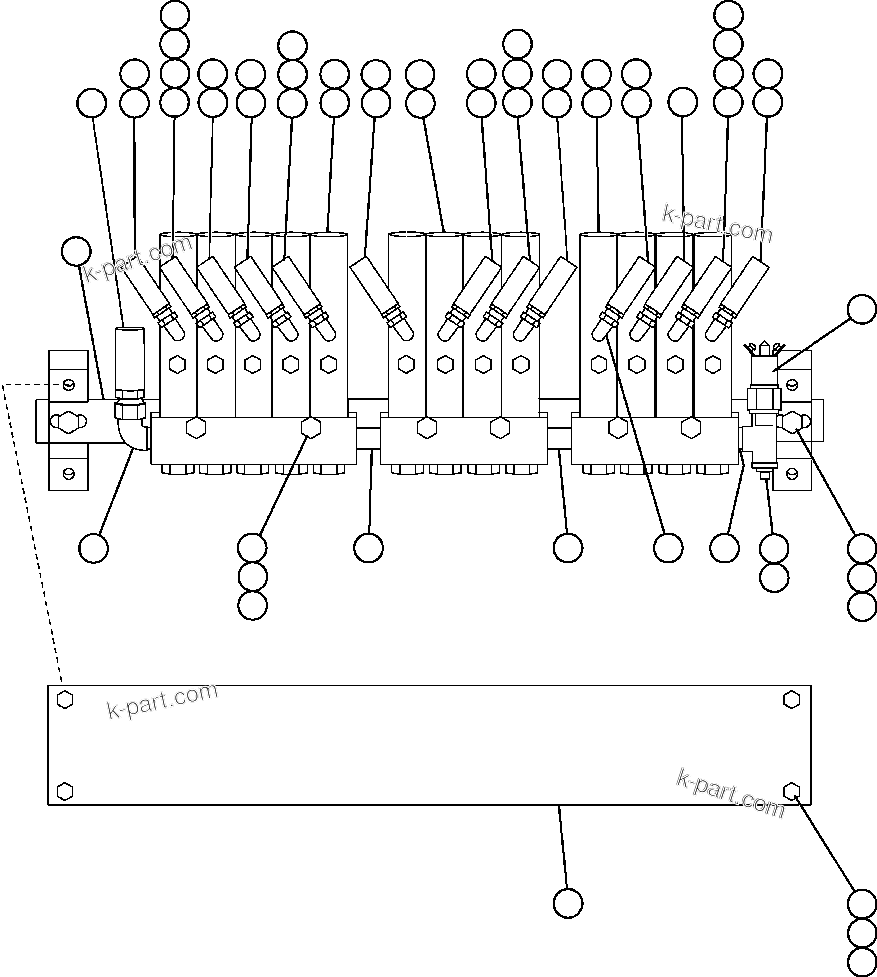

AUTOMATIC LUBRICATION SYSTEM - REAR AXLE (61104) in AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY. Diagram image and parts list.
