AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE4913	SCREW (SPECIAL)	5
?	VE4604	FLAT WASHER - #8 (NARROW)	-1
?	VE4917	CLAMP, CABLE	3
?	VS6662	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	9
?	SF2755	NUT - #10 - 32NF	3
?	GE1210	PANEL COVER ASSEMBLY (SEE INDEX)	1	64232
?	VE7202	WASHER - 1/4" (SPECIAL)	-1
?	DC3584	LOCKWASHER - 1/4"	-1
?	VE4650	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	VE4907	FLAT WASHER - 1/4"	4
?	VE4908	LOCKWASHER - 1/4"	4
?	VE4909	NUT - #4 - 40NC	4
?	VE4382	RECEPTACLE	2
?	VE4383	SCREW - #4 - 40NC X 1/2"	4
?	VE5098	SUPPORT	2
?	VE5156	CAPSCREW - #10 - 32NF X 7/8"	4
?	TD1549	NUT - 1/4" - 20NC	-1
?	VE6320	CAPSCREW - 1/4" - 20NC X 1 1/8"	10
?	VE5130	BAR, BUS	1
?	VE0297	BAR, BUS	2
?	VE0036	DIODE	2
?	GE1211	RECTIFIER	1
?	GE1214	RECTIFIER	1
?	VP9525	PIN	4
?	VE5136	ROLLPIN	2
?	VE5128	HEAT SINK	2
?	VE4915	SCREW - #8 X 1/2"	9
?	VE4389	SHIELD, INSULATION	1
?	GE1212	RECTIFIER	1
?	GE1213	RECTIFIER	1
?	VE3217	BAR, BUS	1
?	VE4912	SCREW - #8 X 5/8"	5
?	VE4604	FLAT WASHER - #8 (NARROW)	-1
?	VE4911	HINGE	1
?	VE2604	BAR, BUS	1

Komatsu AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY parts catalog PDF

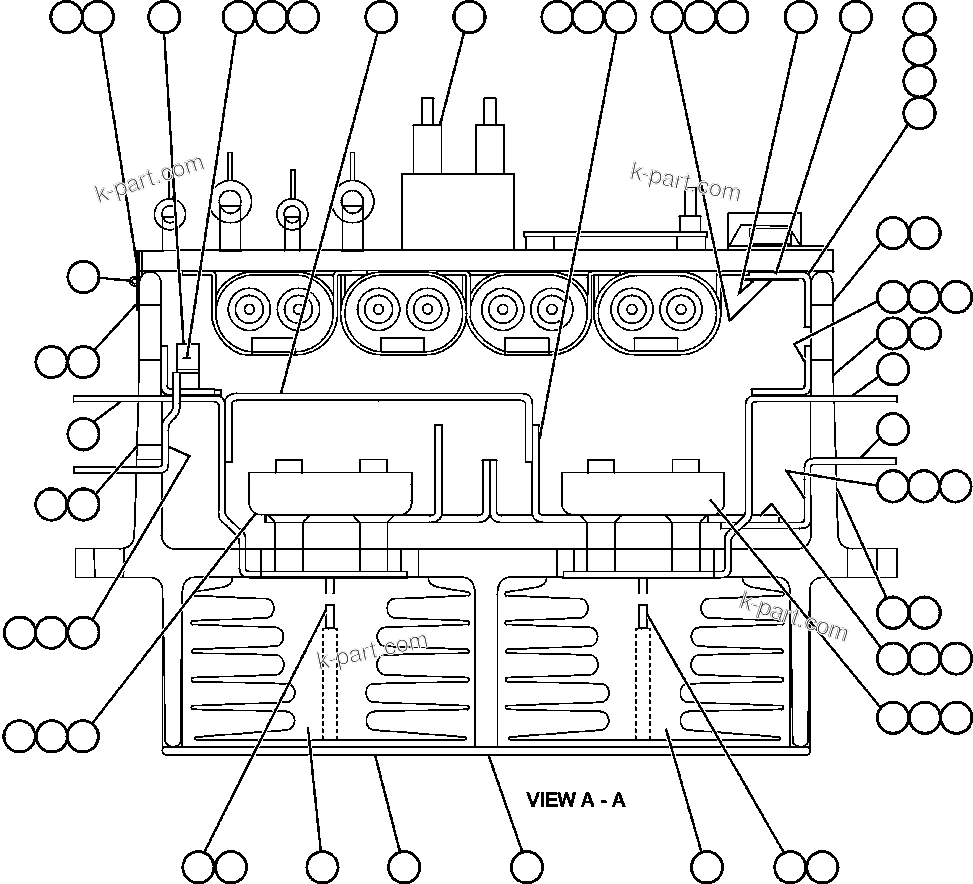

PANEL - A.F.S.E. - 1 (GE0858) (64229) in AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY. Diagram image and parts list.
