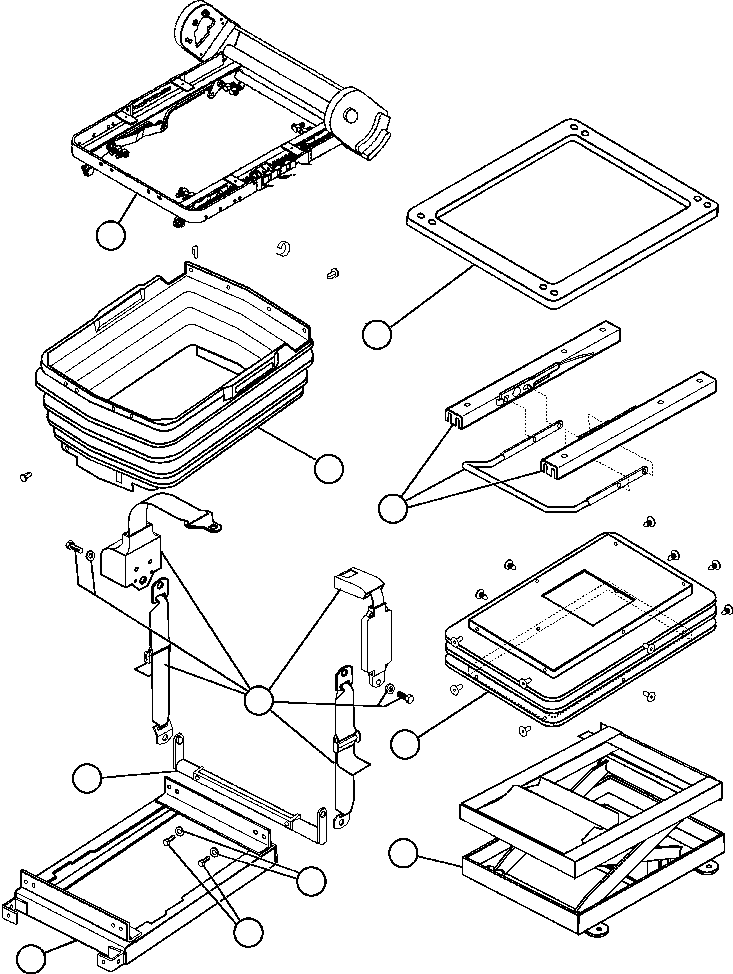

AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

1 2 6 5 8 4 9 11 10 3 7

#	Part Number	Partname	Quantity
1	XA2237	SEAT FRAME ASSEMBLY (SEE FOLLOWING THREE PAGES)	1
2	XA2240	KIT, SEAT FRAME BOOT	1
2		BOOT, SEAT FRAME (1)	1
2	BF0518	KIT, HARDWARE	1
3	VE8862	SPACER, STATIC	1
3	VE8873	SPACER, ADAPTER PLATE	4
3	VE8871	CAPSCREW - M8 X 25	4
4	XA2239	BAR, INTERMEDIATE CONNECTING POINTS	1
5	VE8866	KIT, SEAT BELT	1
5	BF0513	KIT, SEAT BELT	1
5	BF0514	KIT, TETHER	1
6	VE8863	KIT, SLIDE	1
6	BF0526	HANDLE, SLIDE	1
6	BF0527	SLIDE, R.H.	1
6	BF0528	SLIDE, L.H.	1
6	VE8708	SPACER (HANDLE UP)	4
6	VE8870	CAPSCREW - M8 X 20 (ADAPTER PLATE & SLIDE MOUNTING)	8
7	VE8868	PLATE, ADAPTER	1
8	VE4565	KIT, BOOT	1
8		BOOT (1)	1
8	VE8747	KIT, HARDWARE	1
9	XA2238	SEAT SUSPENSION ASSEMBLY (SEE FOLLOWING FOURTH PAGE)	1
10	VE8875	CAPSCREW - M8 X 16 (ICP BAR MOUNTING)	2
11	VE8872	LOCKWASHER - M8 (ICP BAR & SUSPENSION MOUNTING)	6
NS\|25		NOTE: NS = NOT SHOWN	-1
NS\|26	LA0323	CAPSCREW (SEAT BACK TO SEAT FRAME)	2
NS\|27	LA0325	LOCKNUT, NYLON (SEAT PAN/SEAT FRAME)	12
NS\|28	LA0324	SCREW, SEAT PAN	2
NS\|29	XA2252	NUT, NYLOCK - M5	2
NS\|30	XA2253	SPACER	4
NS\|31	XA2254	WASHER, SLIDE	4
NS\|32	XA2255	CAPSCREW - M8 X 25	4
