AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB9923	MOTOR, WIPER - 24 VOLT	1
?	MM0592	CAPSCREW - M8 X 1.25 X 16	5
?	MM0712	FLAT WASHER - M8 (HARDENED)	14
?	MM0470	LOCKWASHER - M8	5
?	SM4345	PLATE	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	3
?	MM0711	FLAT WASHER - M6 (HARDENED)	3
?	MM0469	LOCKWASHER - M6	3
?	PB9926	WIPER LINKAGE ASSEMBLY	1
?	PC1823	ARM, WET WIPER	2
?	XA2095	NOZZLE	2
?	PB9925	BLADE, WIPER	2
?	MM0022	CAPSCREW - M8 X 1.25 X 20	4
?	MM0460	FLAT WASHER - M8	4
?	EG0735	TEE, HOSE	1
?	TF6380	GROMMET, RUBBER	2
?	SM4477	HOSE	2
?	EG3904	HOSE	1
?	PB7514	WINDSHIELD WASHER ASSEMBLY	1
?	VE2942	CAP	1
?	VE2941	PUMP	1
?	VE6598	GROMMET	1
?	VE5339	TANK - 4 QT.	1
?	VF6144	FLAT WASHER - 1/4"	7
?	MM0469	LOCKWASHER - M6	7
?	MM0176	NUT - M6 X 1.00	7
?	XA3071	HARDWARE KIT	1
?		NUT - M8 X 1.25 (1)	1
?		COVER (1)	1
?		NUT - M20 X 1.00 (1)	1
?		WASHER (1)	1
?		WASHER (1)	1
?	VN0137	CLAMP, CUSHIONED - 7/16"	6
?	VC8920	GROMMET, RUBBER	1
?	PC2145	VALVE, CHECK (WASHER FLUID)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

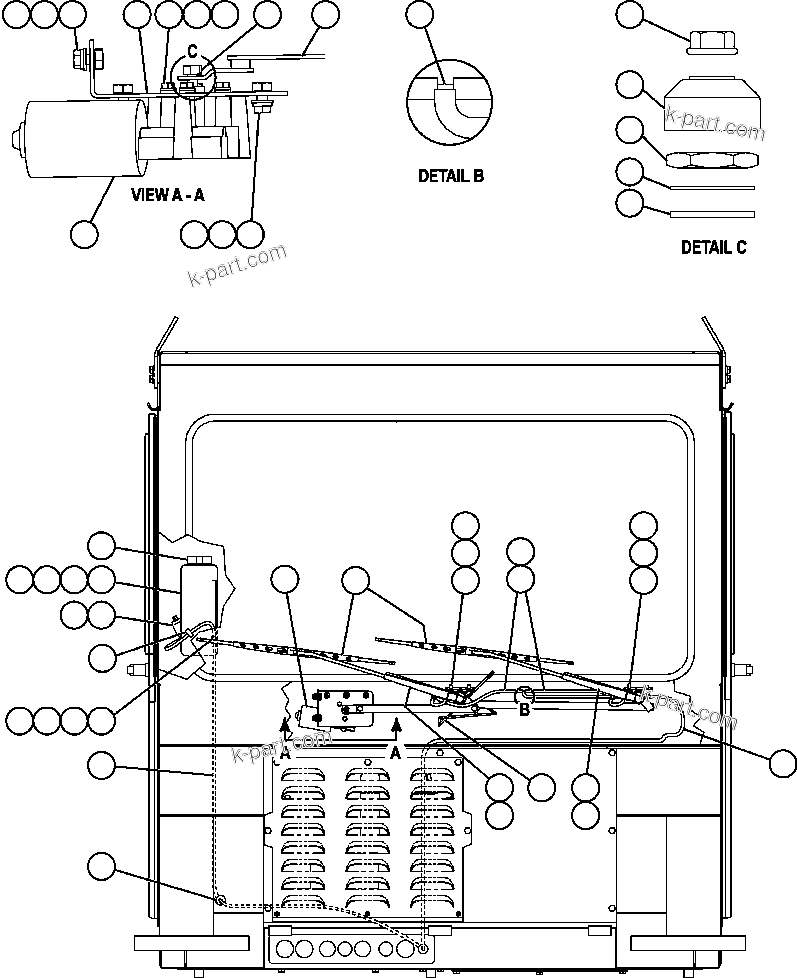

WINDSHIELD WIPER/WASHER INSTALLATION (42092) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
