AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE3828	SPOOLING SECTION ASSEMBLY	1
?	VJ1967	CAP	1
?	VJ1962	SPACER	1
?	VJ1975	SNAP RING	1
?	VJ1972	BALL	4
?	VJ1964	PIN, DETENT	1
?	VJ1960	SPRING	1
?	VE3823	SPACER	1
?	VJ1957	CAPSCREW	2
?	1130246C1	POPPET, CHECK VALVE	1
?	VE3826	SPRING	1
?	VE3819	O-RING	2
?	VE3818	O-RING	2
?	VJ1947	WIPER	2
?	BF3536	SPOOL	1
?	VJ0012	MACHINE SCREW	2
?	VJ1943	PLATE, SEAL	2
?	BF3535	HOUSING, SPOOL	1
?	VJ1944	SEAT, SPRING	2
?	890613C1	SPRING	1
?	VJ1974	BALL	1
?	VE3825	SLEEVE, DETENT	1
?	VE3827	HOUSING, INLET	1
?	VE3819	O-RING	1
?	VE3829	HOUSING, OUTLET	1
?	VE3821	TIE ROD	2
?	VJ1394	NUT	4
?	VE3822	TIE ROD	1
?	VJ1933	NUT	2
?	VE3830	PLUG, SHUTOFF ASSEMBLY	1
?	VE3980	VALVE, RELIEF	1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

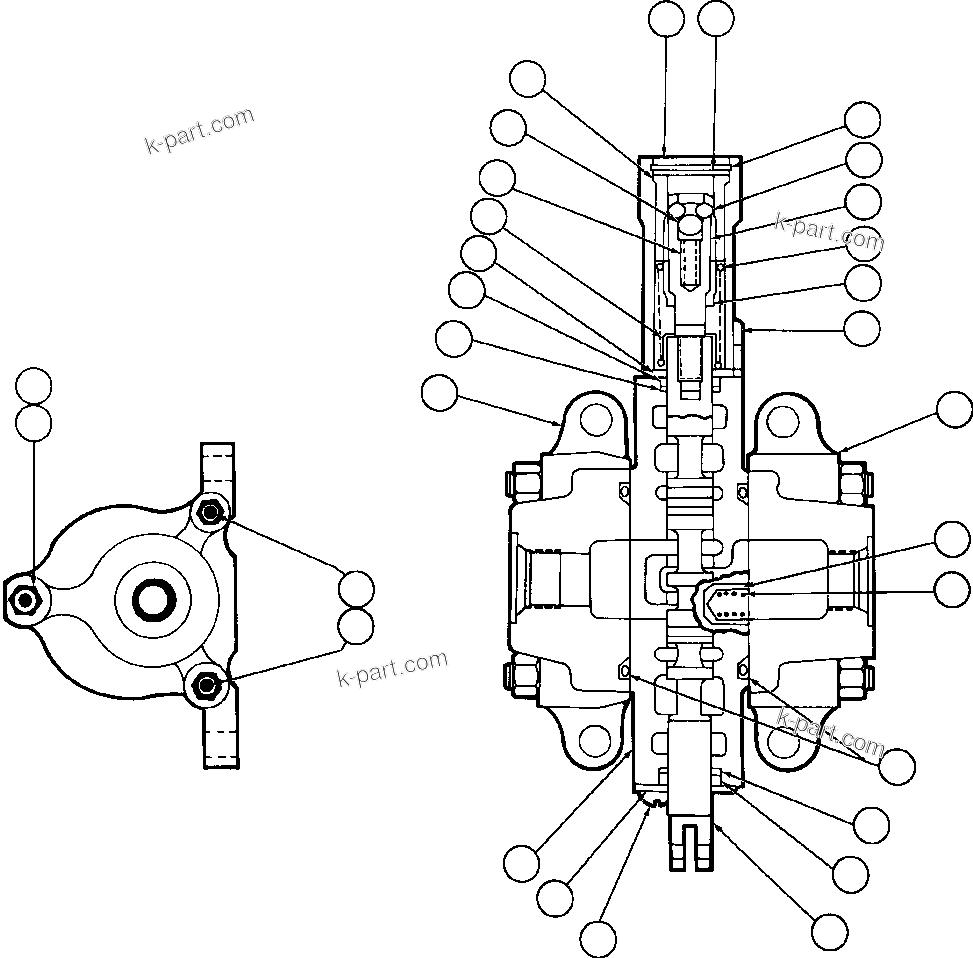

HOIST PILOT VALVE ASSEMBLY (PB6922) (40064) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
