AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	MM0179	NUT - M12 X 1.75	3
?	MM0462	FLAT WASHER - M12	3
?	MM0472	LOCKWASHER - M12	3
?	AK7504	LIGHT, SERVICE (SEE FIG 42185)	2	42185
?	SP6153	LOCKWASHER - 3/8"	2
?	MM0036	CAPSCREW - M10 X 1.50 X 20	7
?	MM0471	LOCKWASHER - M10	7
?	MM0461	FLAT WASHER - M10	8
?	MM0178	NUT - M10 X 1.50	7
?	VN0137	CLAMP, CUSHIONED - 7/16"	5
?	MM0470	LOCKWASHER - M8	5
?	MM0460	FLAT WASHER - M8	5
?	MM0177	NUT - M8 X 1.25	4
?	KC6759	CLAMP - 1"	1
?	MM0581	CAPSCREW - M6 X 1.00 X 16	1
?	EK9833	HARNESS, LEFT UPRIGHT	1
?	EJ8368	BRACKET, MOUNTING SOCKET	1
?	PC0516	LIGHT ASSEMBLY - GREEN (SEE FIG 41372)	1	41372
?	PC0517	LIGHT ASSEMBLY - AMBER (SEE FIG 41372)	1	41372
?	PC0518	LIGHT ASSEMBLY - RED (SEE FIG 41372)	1	41372
?	MM0372	NUT - M4 X 0.7	9
?	MM0378	LOCKWASHER - M4	9
?	MM0343	MACHINE SCREW - M4 X 0.7 X 16	9
?	PC0244	HORN	1
?	PC1791	LIGHT, CLEARANCE - AMBER (LED)	1
?	AK4701	LENS/REFLECTOR UNIT - AMBER	1
?	AK4702	HOUSING, FLANGE	1
?	TY7470	PLATE, MOUNTING	1
?	MM0617	CAPSCREW - M12 X 1.75 X 25	2
?	TR8580	NUT - #12 - 24NC	3
?	VN6402	CAPSCREW - 3/8" - 16NC X 3/8"	4
?	C0312	LOCKWASHER - 3/8"	4
?	DC5004	MACHINE SCREW - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

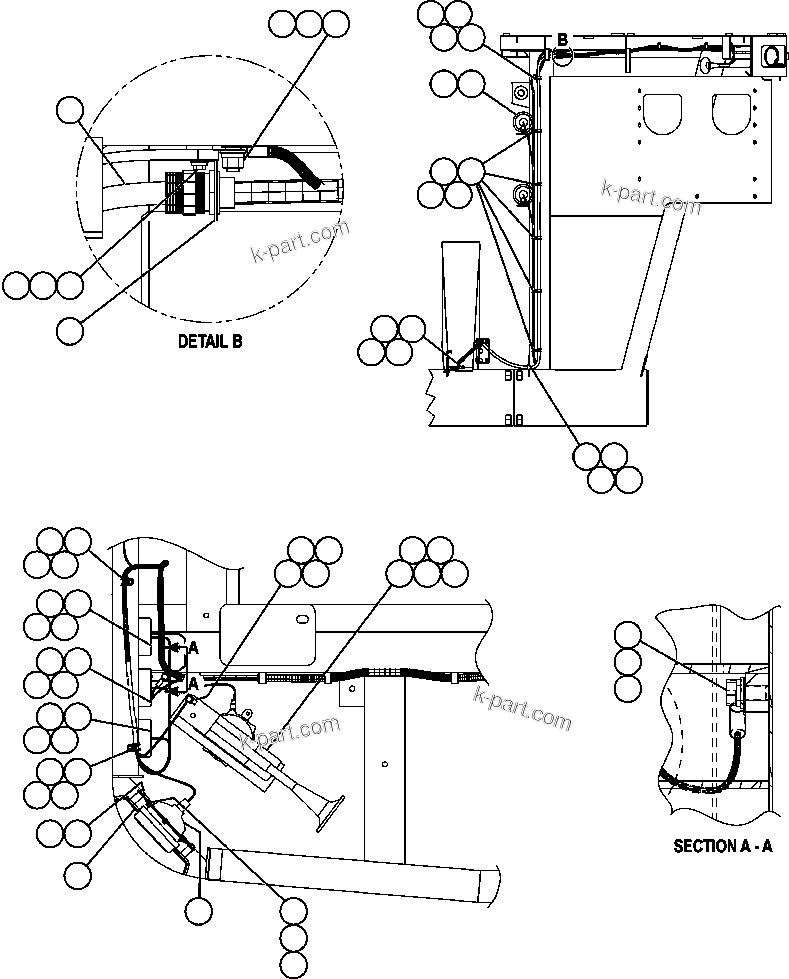

LEFT UPRIGHT ELECTRICAL GROUP (42000) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
