AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XA0001	TANK, OIL RESERVE (60 GALLON) (1)	1
?	0819212300	RECEPTACLE, WEDGE CONNECTOR	2
?	0819212100	RECEPTACLE, BODY	2
?	0819105330	PIN, CONTACT	6
?	HA8449	HOSE	1
?	WB0543	FITTING, ELBOW - 45 DEG	1
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	4
?	C1546	FLAT WASHER - 1/4"	8
?	C5780	NUT - 1/4" - 20NC	4
?	EK0195	PLATE, MOUNTING	1
?	0819105430	SOCKET, CONTACT CONNECTOR	2
?	0819212200	PLUG, BODY CONNECTOR	1
?	0819212400	PLUG, WEDGE CONNECTOR	1
?	0819213100	RECEPTACLE, BODY - 3 POSITION	1
?	0819213300	RECEPTACLE, WEDGE CONNECTOR - 3 POSITION	1
?	0819213200	PLUG, BODY CONNECTOR - 3 POSITION	1
?	0819213400	PLUG, WEDGE CONNECTOR - 3 POSITION	1
?	HA7814	HOSE	1
?	WB0267	FITTING - 90 DEG ELBOW	2
?	EM1933	CABLE	1
?	WB0266	FITTING - 90 DEG ELBOW	1
?	HA7813	HOSE	1
?	EJ3557	PAD, TAPPED	1
?	EM1235	BRACE	1
?	MM0705	FLAT WASHER - M12	7
?	MM0039	CAPSCREW - M12 X 1.75 X 35	2
?	MM0179	NUT - M12 X 1.75	2
?	MM0832	CAPSCREW - M12 X 1.75 X 30	3
?	VN9068	CAPSCREW - 1" - 8NC X 2"	4
?	WA0364	FLAT WASHER - 1"	8
?	VM2357	NUT - 1" - 8NC	4
?	WB3097	CLAMP - 1/2"	5
?	0803110210	TERMINAL	1
?	EM1240	TUBING, HEAT SHRINK	1
?	VH2583	RING, TERMINAL	2
?	SG3290	SWITCH, PRESSURE	1
?		NOTE: (1) INCLUDED IN PC1961 RESERVE SYSTEM KIT	-1
?		(SEE FIG 41654)	-1	41654

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

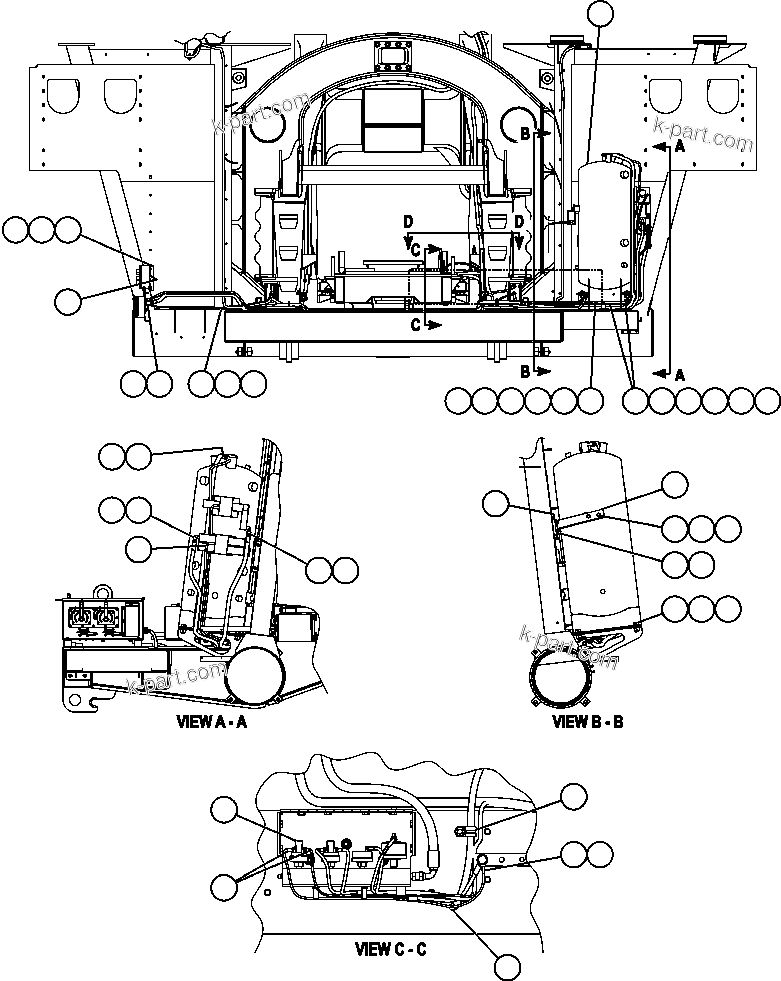

RESERVE SYSTEM (42102) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
