AFE57-X 830E-AC S/N A30101 HIBBING TACONITE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA3595	BUS BAR	1
?	GE1406	BUS BAR	5
?	GE1407	BUS BAR	5
?	GE0579	STUD	2
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE4698	NUT - 1/2" - 13NC	-1
?	VE4519	FLAT WASHER - 1/2"	-1
?	GE1409	BUS BAR	2
?	PB3348	INSULATOR	2
?	GE1384	STUD	56
?	VE4490	FLAT WASHER - 1/2"	-1
?	VE3918	WASHER	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
?	GE1255	INVERTER, IGBT (+)	14
?	GE1256	INVERTER, IGBT (-)	14
?	GE1298	FUSE, IGBT	13
?	GE1296	CAPACITOR, FILTER	10
?	GE1413	BUS BAR	5
?		(FOR VIEWS A-A, B-B & C-C, SEE THE FOLLOWING PAGES.)	-1

Komatsu AFE57-X 830E-AC S/N A30101 HIBBING TACONITE parts catalog PDF

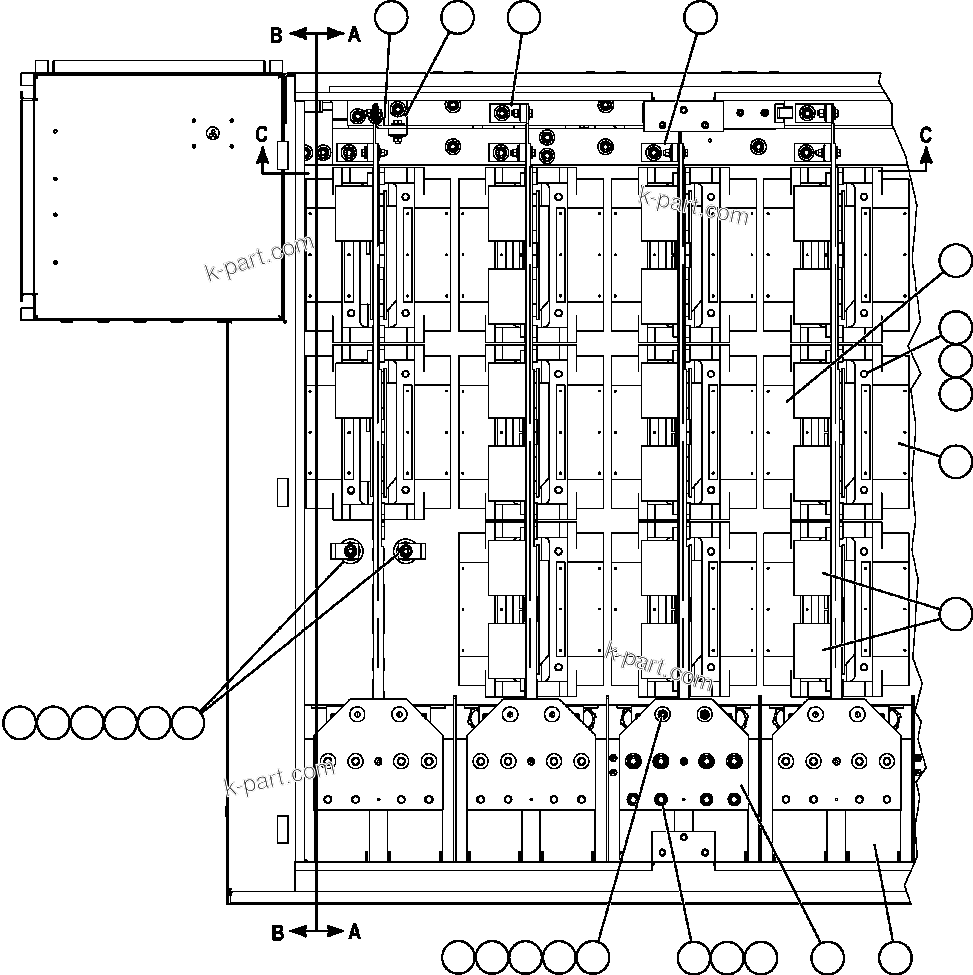

CONTROL CABINET - RIGHT FRONT (PC2226) (64314) in AFE57-X 830E-AC S/N A30101 HIBBING TACONITE. Diagram image and parts list.
