58F-06-01450
|
STATOR ASSEMBLY (SEE INDEX) |
1 |
|
64196 |
|
|
? |
58F-06-01480
|
ROTOR ASSEMBLY (SEE INDEX) |
1 |
|
43867 |
|
|
? |
58D-98-01370
|
CAPSCREW - 1/2" - 13NC X 1 1/2" |
8 |
|
|
|
|
? |
VE5185
|
FLAT WASHER - 1/2" |
20 |
|
|
|
|
? |
VJ2743
|
ROLLPIN |
1 |
|
|
|
|
? |
VE4500
|
CAPSCREW - 3/8" - 16NC X 1 3/4" |
44 |
|
|
|
|
? |
VE3027
|
FLAT WASHER - 3/8" |
65 |
|
|
|
|
? |
XA4447
|
HOUSING, INLET |
1 |
|
|
|
|
? |
GE1081
|
HOUSING, OUTLET |
1 |
|
|
|
|
? |
GE0141
|
CAPSCREW - 5/8" - 11NC X 2 1/4" |
6 |
|
|
|
|
? |
VE4631
|
FLAT WASHER - 5/8" |
6 |
|
|
|
|
? |
C1629
|
CAPSCREW - 5/8" - 11NC X 1 3/4" |
6 |
|
|
|
|
? |
VE5184
|
FLAT WASHER - 5/8" |
21 |
|
|
|
|
? |
GE1082
|
IMPELLER |
1 |
|
|
|
|
? |
VE4998
|
CAPSCREW - 1/2" - 13NC X 4 1/2" |
12 |
|
|
|
|
? |
VE3620
|
PIN, DOWEL |
2 |
|
|
|
|
? |
GE1165
|
HUB |
1 |
|
|
|
|
? |
VE4700
|
NUT - 3/8" - 16NC |
21 |
|
|
|
|
? |
GE1172
|
PLUG, PIPE - 1" |
1 |
|
|
|
|
? |
VJ9656
|
LIQUID GASKET |
-1 |
|
|
|
|
? |
GE1155
|
PICKUP, MAGNETIC (SPEED SENSOR) |
1 |
|
|
|
|
? |
58D-98-01340
|
FRAMEHEAD |
1 |
|
|
|
|
? |
VE4034
|
BRUSH, CARBON (1) |
6 |
|
|
|
|
? |
GE0790
|
LUBRIPLATE |
-1 |
|
|
|
|
? |
VJ1024
|
HOLDER, BRUSH (SEE INDEX) |
6 |
|
64030 |
|
|
? |
XA4446
|
ADAPTER |
1 |
|
|
|
|
? |
VN7649
|
CAPSCREW - 5/8" - 18NF X 2 1/4" |
15 |
|
|
|
|
? |
58F-MA-AK010
|
NOTE: (1) INCLUDED IN 58F-MA-AK010 ALTERNATOR OVERHAUL KIT. |
-1 |
|
|
|
|
? |
|

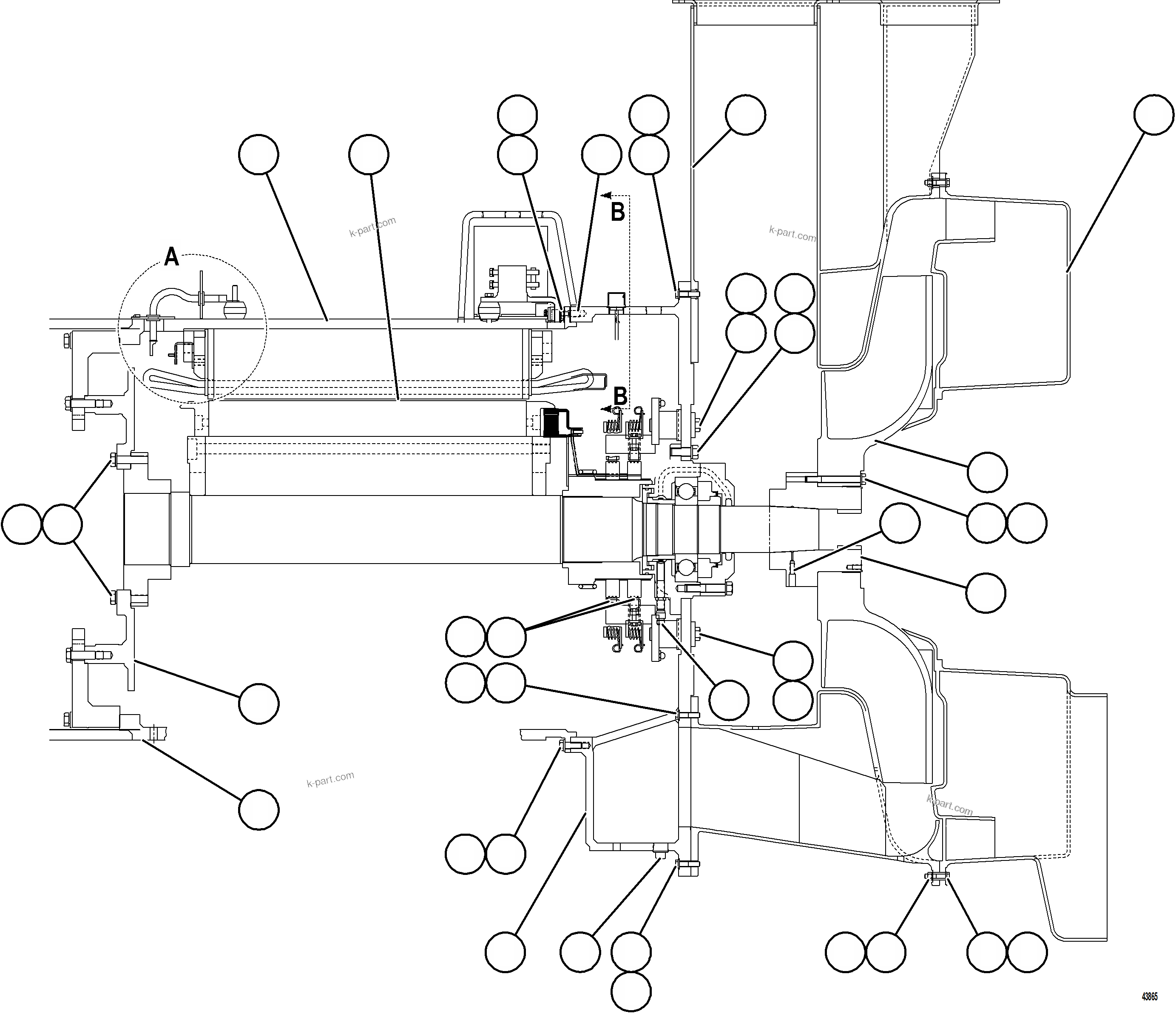

(SEE FOLLOWING PAGES FOR DETAIL A AND VIEW B-B.) |
-1 |
|
|
