AFE59-FV 930E-4 S/N A31832 - A31834, A31838 - A31839 & A31847 - A31848 LOS BRONCES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA5025	PLATE & SHAFT, LH STAIR	1
?	XA5034	BEARING	1
?	XA5043	ZERK, GREASE	1
?	XA5035	KEY, SHAFT - LH	1
?	XA5036	KEY, SHAFT - RH	1
?	XA5031	COUPLING, DRIVE	1
?	H8711	SETSCREW - 1/4" - 20NC X 1/4"	1
?	XA5658	SCREW, ALLEN HEAD - 3/8" - 16NC X 1"	4
?	TC1231	LOCKWASHER - 3/8"	4
?	XA5030	COUPLING, ACTUATOR	1
?	D1561	SETSCREW - 1/4" - 20NC X 1/2"	1
?	XA5656	CAPSCREW - 1/2" - 13NC X 1 1/4"	12
?	TR5445	LOCKWASHER - 1/2"	12
?	XA5032	ACTUATOR, ROTARY	1
?	XA5654	FITTING, ELBOW - 90 DEG	2
?	XA5033	SLEEVE, SPACER	1
?	XA5023	PLATE & SHAFT, RH STAIR	1
?	58F-06-11170	SWITCH, LIMIT	1
?	MM0582	CAPSCREW - M6 X 1.00 X 20	2
?	DC3584	LOCKWASHER - 1/4"	2
?	XA5655	FLAT WASHER - 1/4"	2
?	58F-06-11160	PLATE, LIMIT STRIKER	1
?	58F-06-11150	SCREW, ALLEN HEAD - 3/8" - 16NC X 1 1/2"	2
?	58F-06-11140	HARNESS, LIMIT SWITCH	1

Komatsu AFE59-FV 930E-4 S/N A31832 - A31834, A31838 - A31839 & A31847 - A31848 LOS BRONCES parts catalog PDF

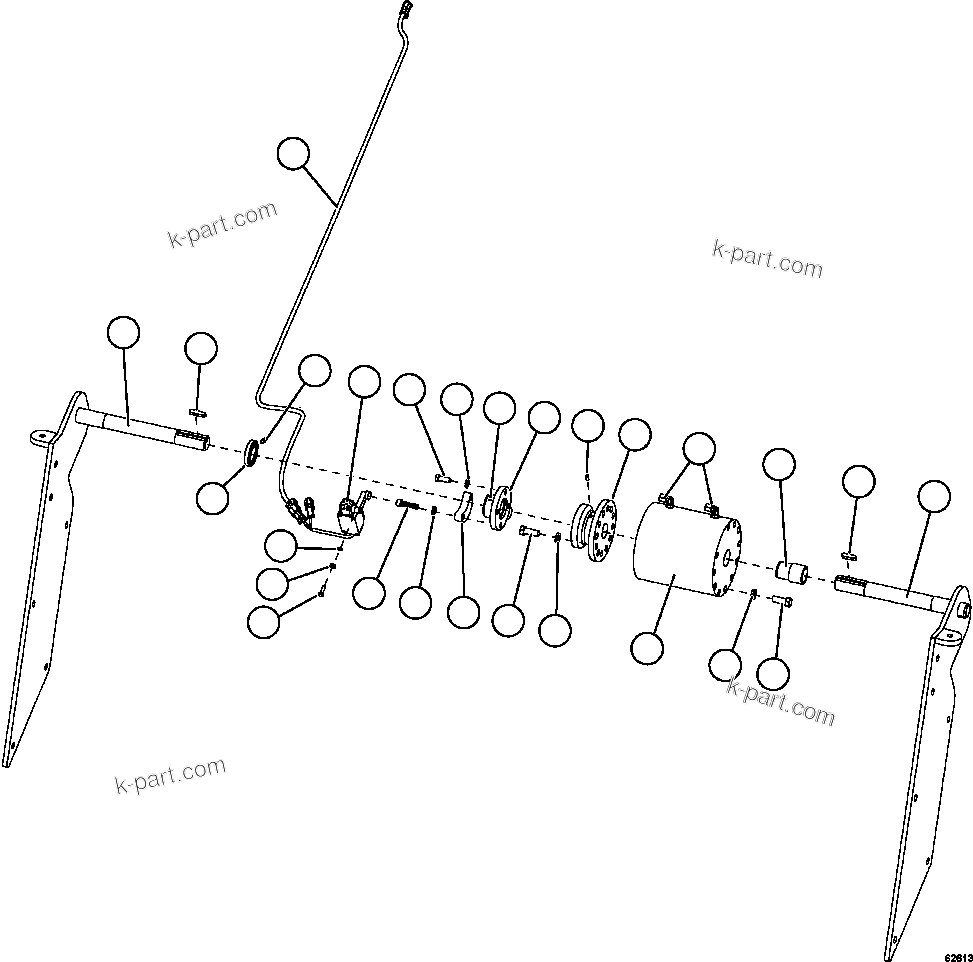

LADDER ASSEMBLY 2/2 58F-60-01220 (62613) in AFE59-FV 930E-4 S/N A31832 - A31834, A31838 - A31839 & A31847 - A31848 LOS BRONCES. Diagram image and parts list.
