AFE59-FY 930E-4 S/N A31856 - A31859 JWANENG

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-43-00360	BUS BAR	1
?	XA4328	BUS BAR	4
?	XA4249	BUS BAR	5
?	GE0579	STUD	2
?	VE4699	LOCKWASHER - 1/2"	-1
?	VE4698	NUT - 1/2" - 13NC	-1
?	VE4519	FLAT WASHER - 1/2"	-1
?	GE1409	BUS BAR	2
?	PB3348	INSULATOR	2
?	GE1384	STUD	56
?	VE4490	FLAT WASHER - 1/2"	-1
?	VE3918	WASHER	-1
?	VE4687	LOCKWASHER - 3/8"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
?	58E-43-00171	INVERTER, IGBT (+)	14
?	58B-43-00410	GASKET	1
?	58E-43-00181	INVERTER, IGBT (-)	14
?	58B-43-00410	GASKET	1
?	XA4290	FUSE, IGBT	26
?	XA4876	CAPACITOR, FILTER	10
?	58B-43-00660	BUS BAR	5
?	BF0543	CAPSCREW - 5/16" - 18NC X 2 1/2"	-1
?	GE1381	FLAT WASHER - 5/16"	-1
?	GE1383	FLAT WASHER - 11/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE1412	BUS BAR, VERTICAL	5
?	VE4518	CAPSCREW - 1/2" - 13NC X 1 1/2"	20
?	XA5273	SPACER	10
?		NOTE: NS = NOT SHOWN	-1
?	58E-43-00500	HARNESS, FIBER OPTIC (568') (1)	1
?	GE0470	KIT, FIBER OPTIC REPAIR (2)	1
?	XA5143	CONNECTOR, GRAY	5
?	XA5144	CONNECTOR, BLUE	5
?		WIRE MARKERS	10
?	XA5141	KIT, CABLE FINISHING	1
?	XA5140	CABLE, FIBER OPTIC (50')	1
?		SANDPAPER	8
?		POLISHING PAPER	8
?		NOTE: (1) FIBER OPTIC REPAIR KIT IS NECESSARY	-1
?		TO SERVICE THE FIBER OPTIC CABLE.	-1
?	GE0654	(2) GE0654 FIBER OPTIC REPAIR KIT WITH CRIMPER.	-1
?		(FOR VIEWS A-A, B-B & C-C, SEE FOLLOWING PAGES.)	-1

Komatsu AFE59-FY 930E-4 S/N A31856 - A31859 JWANENG parts catalog PDF

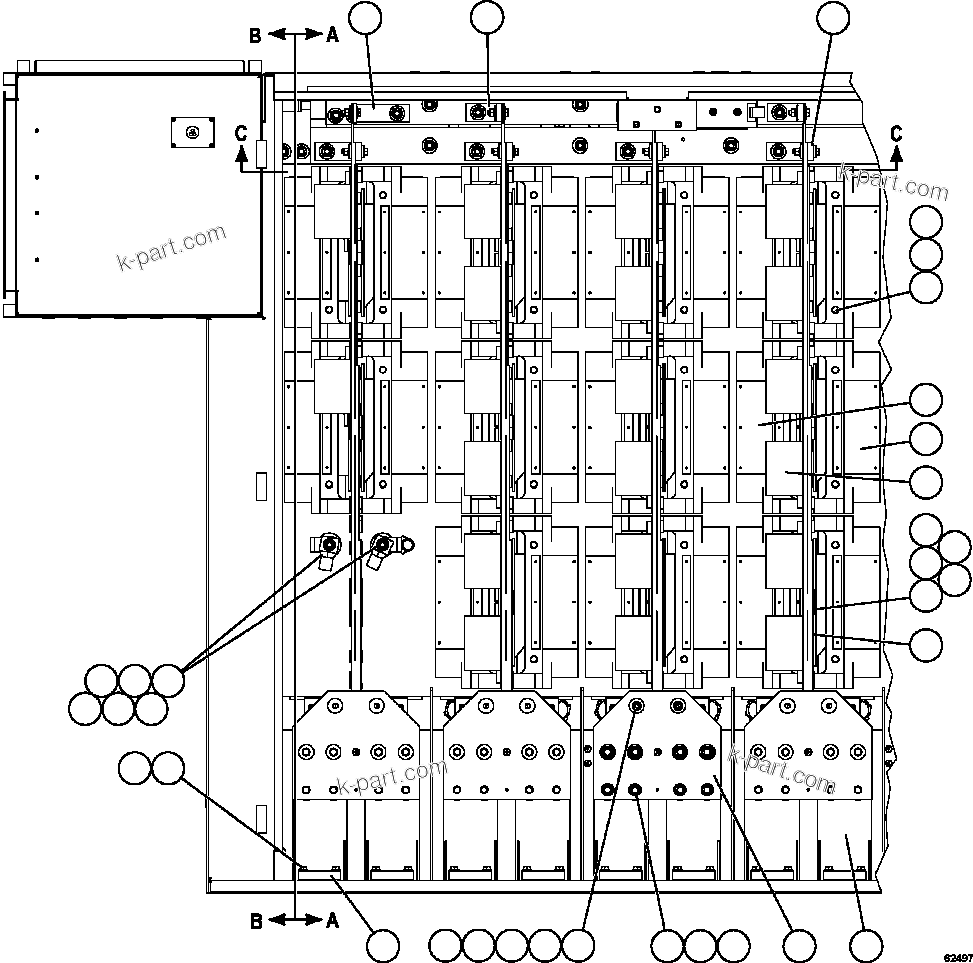

CONTROL CABINET - RH COMPARTMENT 1/3 58F-43-00040 (62497) in AFE59-FY 930E-4 S/N A31856 - A31859 JWANENG. Diagram image and parts list.
