AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG

7 16 35 23 21 20 33 32 31 30 27 28 29 1 26 25 23 22 21 20 24 23 22 21 20 15 14 13 12 43 42 41 39 36 23 22 21 20 19 3 4 43 42 40 39 36 10 23 22 20 21 23 35 21 20 5 6 9 18 17 8 11 27 28 26 34 37 20 21 23 35 38 2 29 28 27

#	Part Number	Partname	Quantity
1	XA3594	BUS BAR	1
2	GE1400	BUS BAR	1
3	XA4250	BUS BAR	1
4	XA4249	BUS BAR	1
5	GE1401	BUS BAR	1
6	GE1402	BUS BAR	1
7	GE0756	LINK SENSOR	1
8	GE1394	BUS BAR	1
9	GE1396	BUS BAR	1
10	VE4600	FLAT WASHER - #10	-1
11	XA4249	BUS BAR	1
12	GE1404	BUS BAR	1
13	GE1392	BUS BAR	2
14	GE1403	BUS BAR	1
15	XA3596	BUS BAR	1
16	GE1402	BUS BAR	1
17	58B-43-00660	BUS BAR	5
18	GE1412	BUS BAR, VERTICAL	1
19	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	1
20	VE4699	LOCKWASHER - 1/2"	-1
21	VE4698	NUT - 1/2" - 13NC	-1
22	VE4519	FLAT WASHER - 1/2"	-1
23	VE3030	FLAT WASHER - 1/2"	-1
24	VE5062	CAPSCREW - 1/2" - 13NC	4
25	GE0581	STUD	2
26	PB3348	INSULATOR	26
27	GE1381	FLAT WASHER - 5/16"	-1
28	VE4696	LOCKWASHER - 5/16"	-1
29	TR4731	CAPSCREW - 5/16" - 18NC X 1"	2
30	XA3599	BASE ASSEMBLY	1
31	SP8417	FLAT WASHER - 1/4"	-1
32	DC3584	LOCKWASHER - 1/4"	-1
33	VE5882	CAPSCREW - 1/4" - 20NC X 7/8"	6
34	VE5013	NUT - 5/16" - 18NC	2
35	VE5061	CAPSCREW - 1/2" - 13NC	6
36	VE4687	LOCKWASHER - 3/8"	-1
37	GE1415	BRACKET ASSEMBLY	4
38	GE0579	STUD	12
39	WA0720	FLAT WASHER - 3/8" (HARDENED)	-1
40	TR4434	CAPSCREW - 3/8" - 16NC X 2"	13
41	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
42	VE3918	WASHER	-1
43	TC1233	NUT - 3/8" - 16NC	-1

Komatsu AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG parts catalog PDF

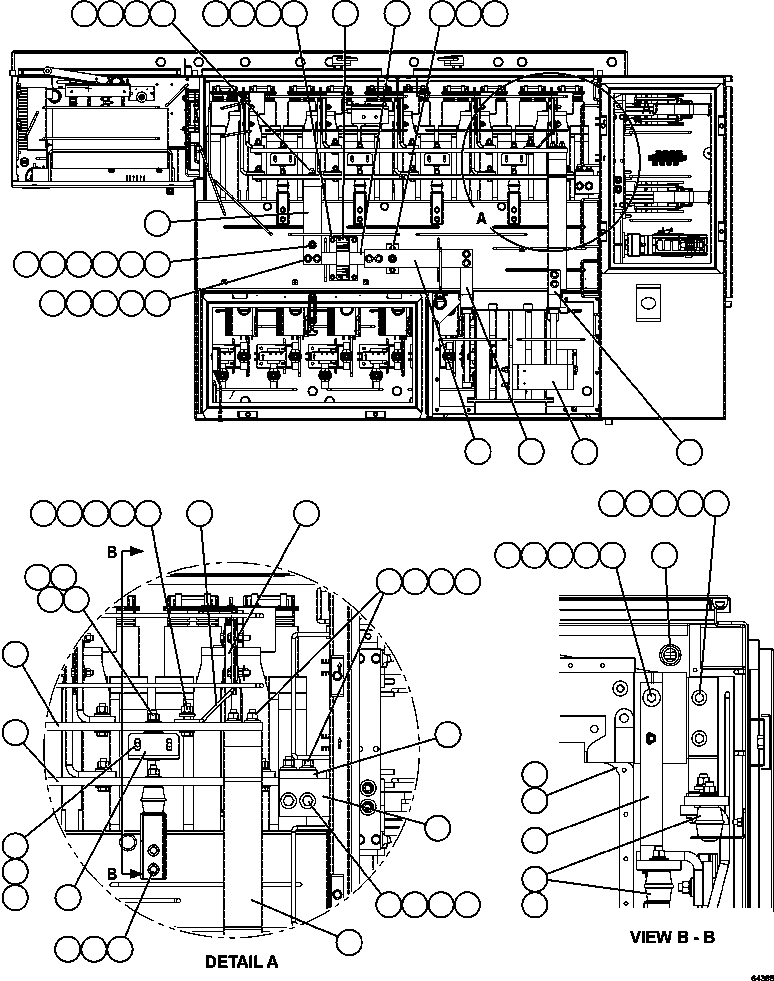

CONTROL CABINET - TOP VIEW 1/2 (64388) in AFE59-FK 930E-4 S/N A31674 - A31676, A31685, A31687 & A31689 JWANENG. Diagram image and parts list.
