AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EM5646	CONSOLE	1
?	EL4131	COVER, MOLDED (SHIFT CONSOLE)	1
?	EL2721	DECAL, SHIFT CONSOLE - FORWARD	1
?	EL2723	DECAL, SHIFT CONSOLE - MIDDLE	1
?	EM2711	DECAL, SHIFT CONSOLE - REAR	1
?	PB8624	SWITCH, PUSH BUTTON (DATA STORE)	1
?	SM0628	COVER	1
?	HE2467	MACHINE SCREW - #6 - 32NC X 1/2"	2
?	HE5125	FLAT WASHER - #6	2
?	DF4944	LOCKWASHER - #6	2
?	DD2468	NUT - #6 - 32NC	2
?	SM4443	FLASHER ASSEMBLY - CLEAR LENS	4
?	SP8443	LIGHT BULB	4
?	SM5073	DECAL, SERVICE ENGINE	1
?	EL4153	DECAL, VHMS SNAPSHOT IN PROGRESS	1
?	SM5104	DECAL, LINK ENERGIZED	1
?	XB0514	PLATE, DIAGNOSTIC	1
?	SM0926	SCREW - M6 X 1.00	4
?	TF7982	GROMMET, RUBBER	1
?	WA3597	CAPSCREW - 5/16" - 18NC X 2 1/4"	3
?	SC4174	LOCKWASHER - 5/16"	3
?	TV0177	FLAT WASHER - 5/16"	3
?	PN6893	VALVE, CONTROL	1
?	PC2873	LEVER, GEAR SELECTOR	1
?	31127R1	CAPSCREW - M6 X 1.00 X 12 (UNDER MOLDED COVER)	4
?	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	10
?	SM5115	CAPSCREW, INTERNAL HEX - M8 X 1.25	8
?	MM0460	FLAT WASHER - M8	8
?	EM5648	RESISTOR	1
?	VG1621	MACHINE SCREW - 4-40 X 5/8"	2
?	VD7129	LOCKWASHER - #4	8
?	VN9762	FLAT WASHER - #4	4
?	VN9708	NUT - #4 - 40NC	2
?	PC1374	OUTLET, AUXILIARY POWER	2
?	MM0593	CAPSCREW - M8 X 1.25 X 20	8
?	MM0470	LOCKWASHER - M8	8
?	TV3555	PLUG, BUTTON - 1 3/8"	1
?	PC1376	BUTTON, PUSH-PULL (RETARD SPEED CONTROL)	1
?	ED2863	POTENTIOMETER (RETARD SPEED CONTROL)	1
?	PB5957	KNOB	1
?	PC0490	SWITCH, ROCKER (ELECTRIC WINDOW)	2
?	PC1375	BUTTON, PUSH-PULL (ENGINE SHUTDOWN)	1
?	PC1377	BUTTON, PUSH (OVERRIDE/FAULT RESET)	1
?	WB3548	NAME PLATE - FIRE SUPP	1
?	WB3549	NAME PLATE - 2-WAY COM	1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

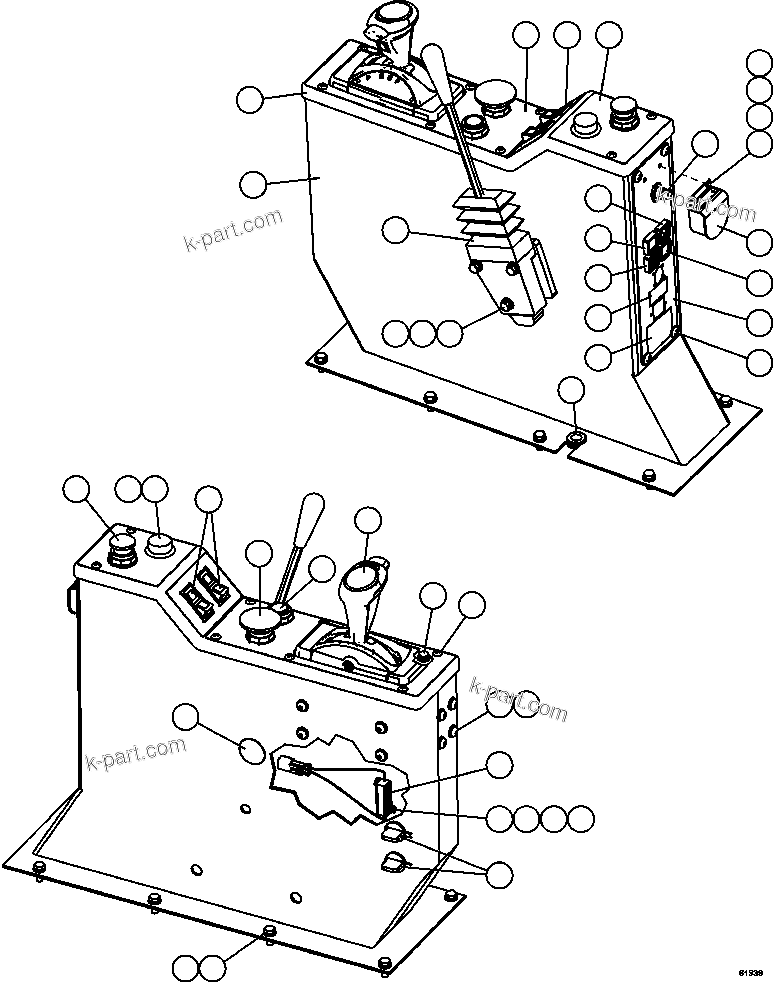

CENTER CONSOLE MODULE (61939) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
