AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0152	RESISTOR PANEL	1
?	VJ9059	RESISTOR	2
?	PB2685	CONTACT CLIP ASSEMBLY	2
?	GE0861	GROMMET	3
?	PB6137	CONTACTOR ASSEMBLY	1
?	VE3530	INTERLOCK, POSITION SENSOR (SEE INDEX)	1	64035
?	VE1317	CONTACTOR - GF & GFR (SEE INDEX)	1	64069
?	GE0647	CONTACTOR ASSEMBLY - R.P. (SEE INDEX)	2	43036
?	VE4687	LOCKWASHER - 3/8"	-1
?	VE4515	FLAT WASHER - 3/8"	-1
?	TC1233	NUT - 3/8" - 16NC	-1
?	PB5230	RESISTOR, THYRITE	1
?	GE1381	FLAT WASHER - 5/16"	-1
?	VE4696	LOCKWASHER - 5/16"	-1
?	VE5013	NUT - 5/16" - 18NC	-1
?	GE0857	PANEL ASSEMBLY	1
?	SP8417	FLAT WASHER - 1/4"	-1
?	DC3584	LOCKWASHER - 1/4"	-1
?	TD1549	NUT - 1/4" - 20NC	-1
?	PB3348	INSULATOR	4
?	XA3143	STUD	4
?	GE0177	BOARD, PRINTED WIRE	1
?	PB3606	SPACER	1
?	XA3129	CAP, LENS	2
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	-1
?	VS6662	FLAT WASHER - #10	-1
?	BF4452	MODULE, SUPPRESSION	5
?	VE4921	CAPSCREW - #10 - 32NF X 1"	8
?	VE4655	FLAT WASHER - #10	-1
?	GE0219	SUPPORT, MODULE	2
?	GE0220	SUPPORT, MODULE	2
?	VJ6457	SHIELD	1
?	VJ6456	SHIELD	1
?	VG7043	RELAY - CPR & GFR (SEE INDEX)	1	64037
?	VE7237	CAPSCREW - 1/4" - 20NC	4
?	VE7202	WASHER - 1/4" (SPECIAL)	4
?	VJ6455	BASE	1
?	BF4223	BOLT, INSULATED	4
?	BF3904	INSULATION	2
?	VE4640	CAPSCREW - 3/8" - 16NC X 1 1/2"	-1
?	GE1397	BUS, BAR	2
?	GE1416	GROMMET	1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

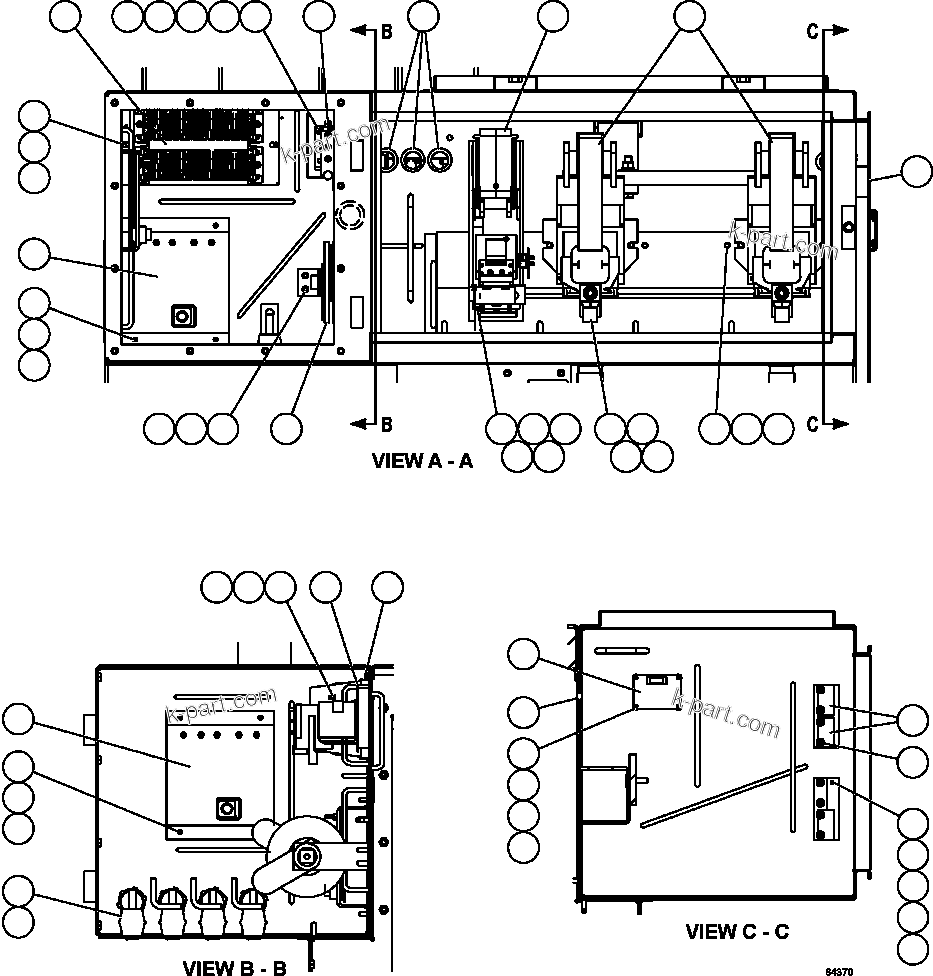

CONTROL CABINET - CONTACTOR BOX PC2752 (64370) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
