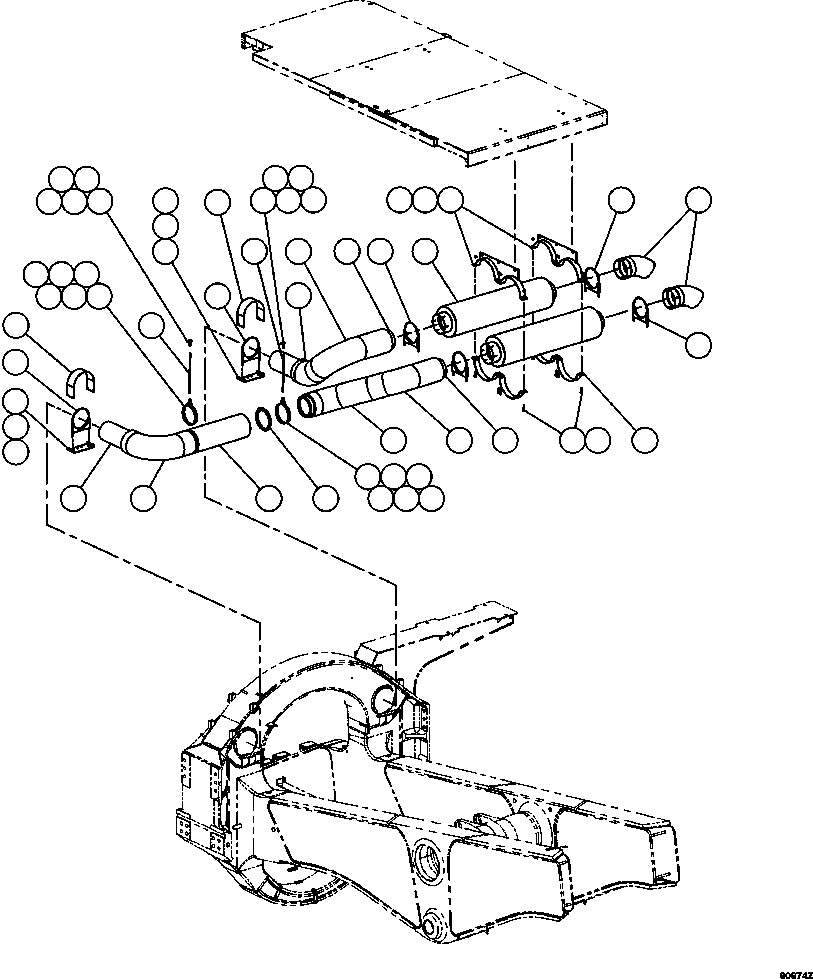

AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

13 12 13 12 11 27 26 25 5 31 10 9 4 9 11 10 1 3 2 15 19 21 5 24 14 12 13 20 9 5 11 10 1 8 5 5 2 3 18 22 23 29 30 28 4 9 10 11 6 7 16 17 12 13 14

#	Part Number	Partname	Quantity
1	EK5928	PLATE, BENT	2
2	EK5930	MOUNT	2
3	MM0042	CAPSCREW - M10 X 1.50 X 25	12
4	MM0461	FLAT WASHER - M10	12
5	TA6490	CLAMP ASSEMBLY	6
5	TA6483	CLAMP	6
5	TA6491	U-BOLT - 3/8" - 16NC	6
5	C0312	LOCKWASHER - 3/8"	12
5	C1521	NUT - 3/8" - 16NC	12
6	EJ8755	TUBE	1
7	EJ9659	BLANKET, EXHAUST	1
8	EJ9913	ROD, THREADED	1
9	PC1247	ROD END, FEMALE	6
10	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	6
11	WA4728	FLAT WASHER - 1/2" (HARDENED)	12
12	TL8151	JAM NUT - 1/2" - 20NF	6
13	DF3500	LOCKNUT - 1/2" - 13NC	6
14	EJ9909	CLAMP	3
15	EK2340	ROD, THREADED	2
16	EM3191	BLANKET, EXHAUST	1
17	PB7997	CLAMP, V-BAND	1
18	EJ9663	BLANKET, EXHAUST	1
19	EJ9657	BLANKET, EXHAUST	1
20	EJ9658	BLANKET, EXHAUST	1
21	EJ8760	TUBE	1
22	EJ9662	BLANKET, EXHAUST	1
23	EJ8756	TUBE	1
24	EH9967	MUFFLER	2
25	EJ8380	HANGER	2
26	MM0618	CAPSCREW - M12 X 1.75 X 30	6
27	MM0694	LOCKNUT - M12 X 1.75	6
28	EJ1952	CLAMP	4
29	MM0624	CAPSCREW - M12 X 1.75 X 70	8
30	MM0462	FLAT WASHER - M12	8
31	EH9563	TUBE	2
NS\|36		NOTE: NS = NOT SHOWN	-1
NS\|37	XK1043	KIT, EXHAUST BLANKETS (1)	-1
NS\|38		NOTE: (1) USE THE EXHAUST BLANKETS TO FILL	-1
NS\|39		IN GAPS AS NEEDED.	-1
