AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XB3729	AXLE HOUSING ASSEMBLY	1
?	TX8110	SLEEVE (2)	2
?	WB1162	CAPSCREW - 1 1/4" - 7NC X 3" (12 PT)	24
?	WA0366	FLAT WASHER - 1 1/4" (HARDENED)	24
?	XB2450	PIVOT EYE ASSEMBLY	1
?	XB2449	EYE, PIVOT	1
?	PC1291	BEARING (1)	1
?	WB1154	CAPSCREW - 3/4" - 10NC X 6" (12 PT) (1)	14
?	VL2993	LOCKNUT - 3/4" - 10NC (1)	14
?	EL0047	RETAINER, BEARING (1)	2
?	ED4952	SLEEVE (1)	1
?	EK0867	PIN, PIVOT (1)	1
?	VN9952	LOCKNUT - 5/8" - 11NC (2)	2
?	EG3028	SPACER (1)	2
?	EK0866	PLATE, LOCKING (1)	1
?	WB1059	CAPSCREW - 1 1/4" - 7NC X 4 1/2" (12 PT) (1)	5
?	MM0012	CAPSCREW - M16 X 2.00 X 25	2
?	VN9087	CAPSCREW - 5/8" - 11NC X 2 1/2" (1)	3
?	C1541	LOCKWASHER - 5/8" (1)	3
?	EM8109	SHOULDER BOLT - 5/8" - 11NC X 7.16" (FRAME END) (2)	1
?	EM8110	SHOULDER BOLT - 5/8" - 11NC X 6.73" (AXLE END) (2)	1
?	TY2734	SPACER (2)	4
?	EH7812	ANTI-SWAY BAR W/ BEARINGS	1
?	EH7813	BAR, ANTI-SWAY	1
?	VN9351	RING, RETAINER (2)	4
?	PB0027	BEARING, SPHERICAL (2)	2
?	EH7811	PIN, BEARING (2)	2
?	WA0361	FLAT WASHER - 5/8" (HARDENED) (2)	2
?	MM0474	LOCKWASHER - M16	2
?		NOTE: NS = NOT SHOWN	-1
?	XB2497	WIRE, GROUND (PIVOT EYE TO FRAME)	1
?	MM0471	LOCKWASHER - M10	2
?	MM0178	NUT - M10 X 1.50	2
?	MM0603	CAPSCREW - M10 X 1.50 X 16	1
?	AK5258	NOTE: (1) INCLUDED IN AK5258 NOSE CONE PIN KIT.	-1
?	AK5672	(2) INCLUDED IN AK5672 PANHARD PIN KIT.	-1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

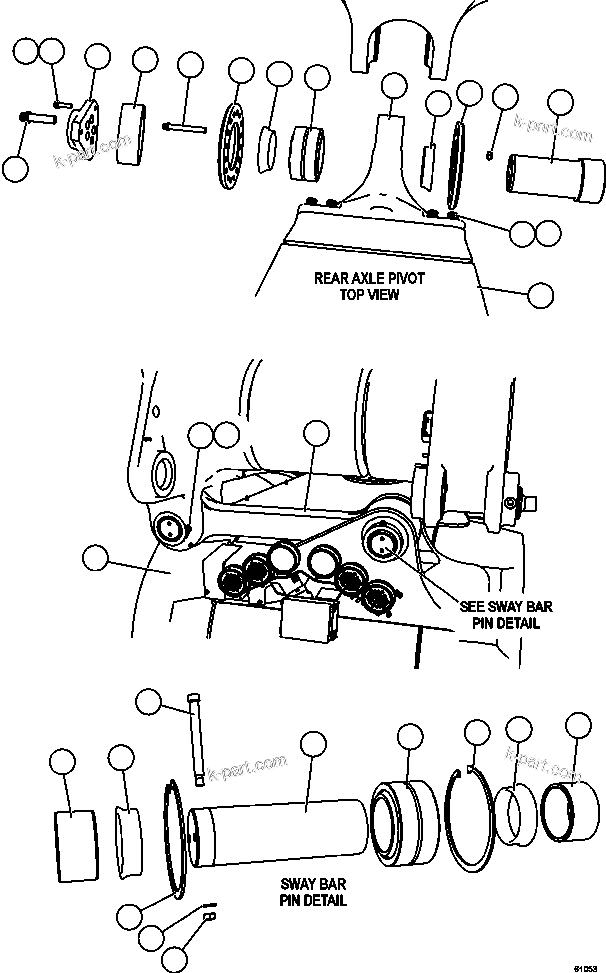

DRIVE AXLE & MOUNTING (61503) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
