AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58F-90-40004	PLATFORM, LH	1
?	EM9230	PLATE, COVER	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	4
?	MM0471	LOCKWASHER - M10	10
?	MM0713	FLAT WASHER - M10 (HARDENED)	4
?	XB2912	HANDRAIL	1
?	XB2823	HANDRAIL	1
?	MM0012	CAPSCREW - M16 X 2.00 X 25	2
?	MM0706	FLAT WASHER - M16 (HARDENED)	2
?	EL6441	HANDRAIL	1
?	EL6443	HANDRAIL	1
?	EL6438	STEP	1
?	EL0827	TREAD	2
?	MM0619	CAPSCREW - M12 X 1.75 X 35	8
?	MM0462	FLAT WASHER - M12	16
?	MM0179	NUT - M12 X 1.75	4
?	EL6439	STRAP, RUBBER	2
?	EL6436	STRAP, RUBBER	2
?	MM0694	LOCKNUT - M12 X 1.75	14
?	MM0714	FLAT WASHER - M12 (HARDENED)	34
?	MM0624	CAPSCREW - M12 X 1.75 X 70	8
?	EL0828	FLAT	8
?	MM0623	CAPSCREW - M12 X 1.75 X 60	8
?	MM0622	CAPSCREW - M12 X 1.75 X 50	4
?	MM0472	LOCKWASHER - M12	8
?	MM0620	CAPSCREW - M12 X 1.75 X 40	6
?	MM0618	CAPSCREW - M12 X 1.75 X 30	2
?	58F-09-00460	CAPSCREW - M16 X 2.00 X 45	4
?	58E-09-00400	FLAT WASHER - M16 (HARDENED)	4
?	XB3296	SHEET, DIMPLED	1
?	MM0178	NUT - M10 X 1.50	6
?	MM0461	FLAT WASHER - M10	6

Komatsu AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS parts catalog PDF

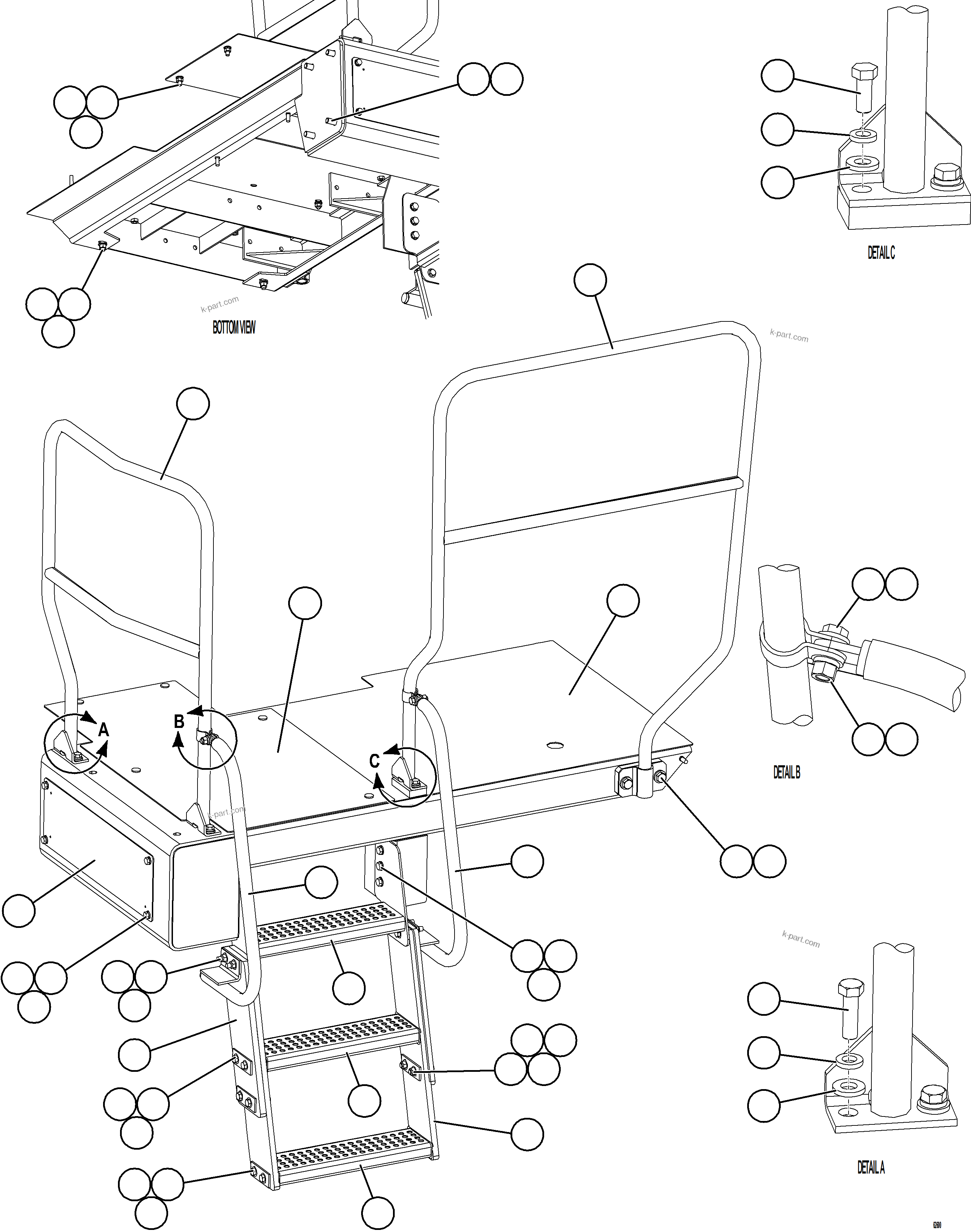

LH STEPS & PLATFORM (62600) in AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS. Diagram image and parts list.
