AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58F-02-00160	AIR CLEANER ASSEMBLY (SEE INDEX)	1	43406
?	58F-09-00450	CAPSCREW - 5/8" - 11NC X 4 1/2"	13
?	WA4729	FLAT WASHER - 5/8" (HARDENED)	13
?	TB1018	GUARD, RAIN - RH	1
?	TB1406	GUARD, RAIN - FRONT	1
?	TB1019	GUARD, RAIN - LH	1
?	TR2961	CAPSCREW - 5/8" - 11NC X 1"	4
?	VC1390	LOCKWASHER - 5/8"	4
?	TR9082	FLAT WASHER - 5/8"	4
?	EH2867	TUBE, OUTER REAR - LH	1
?	EH4481	TUBE, INNER REAR - LH	1
?	PC1115	HOSE, DOUBLE HUMP	2
?	TX6040	FITTING, ELBOW - 45 DEG	1
?	EH2864	TUBE, OUTER FRONT - LH	1
?	EH4483	TUBE, INNER FRONT - LH	1
?	VW7882	HOSE, HUMP	1
?	PB2484	FITTING, ELBOW - 45 DEG	2
?	WB1169	CLAMP, T-BOLT	2
?	WB1170	CLAMP, T-BOLT	4
?	EG7576	CLAMP, DOUBLE	2
?	TD0789	CAPSCREW - 3/8" - 16NC X 2 1/4"	3
?	WA4726	FLAT WASHER - 3/8" (HARDENED)	3
?	HE5611	LOCKNUT - 3/8" - 16NC	3
?	WB1177	CLAMP, T-BOLT	12
?	WB1179	CLAMP, T-BOLT	4
?	EJ9919	BRACKET, LONG	1
?	EJ9920	BRACKET, SHORT	1
?	MM0617	CAPSCREW - M12 X 1.75 X 25	4
?	MM0472	LOCKWASHER - M12	4
?	VC4898	CAPSCREW - 1/2" - 13NC X 2 1/2"	6
?	EJ9910	ROD, THREADED	4
?	EJ9911	ROD, THREADED	2
?	EJ9918	ANGLE	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0713	FLAT WASHER - M10 (HARDENED)	2
?	EJ9909	CLAMP	6
?	PC1247	ROD END, FEMALE	12
?	TL8151	JAM NUT - 1/2" - 20NF	12
?	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	6
?	WA4728	FLAT WASHER - 1/2" (HARDENED)	22
?	DF3500	LOCKNUT - 1/2" - 13NC	10
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	2

Komatsu AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS parts catalog PDF

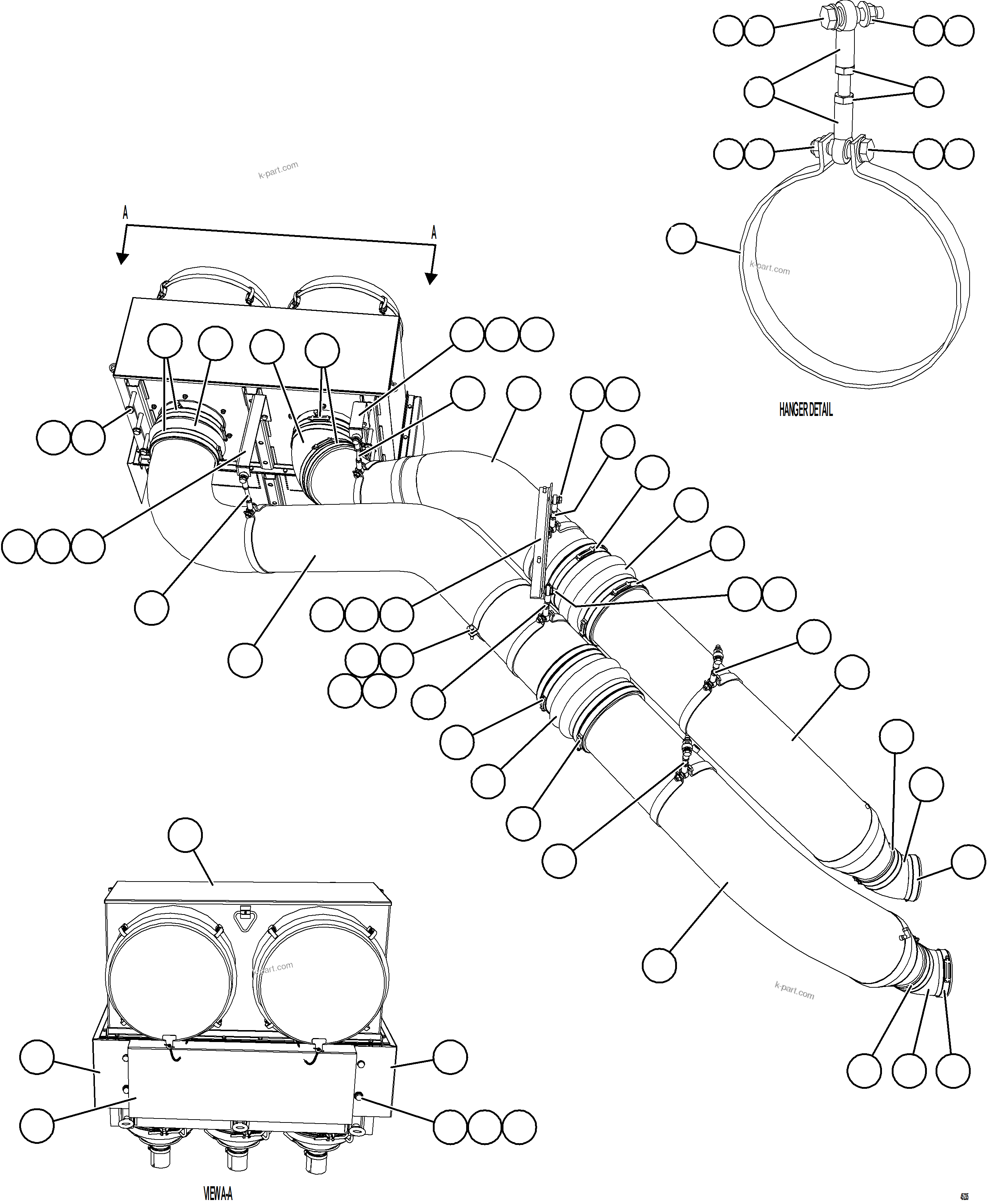

AIR CLEANER PIPING & INSTALLATION - LH (45235) in AFE59-GY 930E-4 S/N A32045 - A32046 & A32058 - A32061 VALE CARAJAS. Diagram image and parts list.
