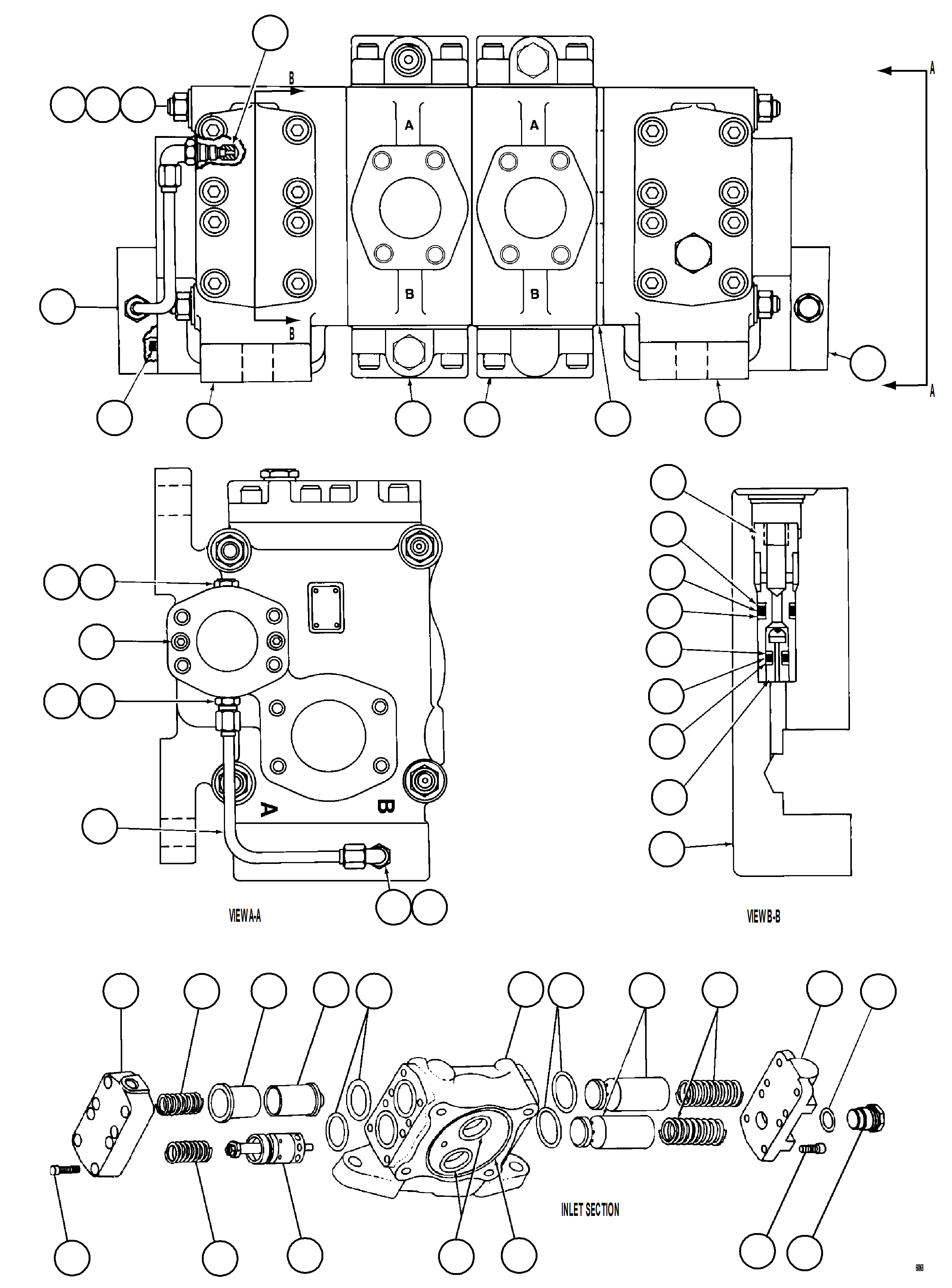

HOIST CONTROL VALVE ASSEMBLY PB9839 | AFE59-GN 930E-4 S/N A31993 CASSERONES

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE59-GN 930E-4 S/N A31993 CASSERONES

11 23 5 35 34 33 32 6 7 25 24 26 27 28 27 29 30 31 8 17 18 19 18 20 21 20 22 23 10 13 10 16 9 15 14 10 1 36 12 4 37 39 38 4 2 3 11

#	Part Number	Partname	Quantity	Reference
1	BF3045	TIE ROD	4
2	VE3807	WASHER, COMPRESSION	8
3	VE3804	LOCKNUT	8
4	BF3049	INLET SECTION ASSEMBLY	2
5	VJ2002	CAPSCREW	16
6	DF6928	CAPSCREW	48
7	VJ0011	PLUG	2
8	VJ0435	O-RING (2)/(3)	2
9	VE3551	PLUG	2
10	VE3565	O-RING (2)/(3)	6
11	VE3563	CAP, FLANGE	2
12	VE3553	O-RING (2)/(3)	2
13	VE3559	FITTING	2
14	VE3564	TUBE	2
15	VE3561	FITTING	2
16	VE3803	CAPSCREW	4
17	VE3560	SLEEVE (2)	2
18	VE3554	RING, BACKUP (2)/(3)	4
19	VE3552	O-RING (2)/(3)	2
20	1133800C1	RING, BACKUP (2)/(3)	4
21	VE3526	O-RING (2)/(3)	2
22	VE3558	POPPET, RESTRICTION (2)	2
23	VE3562	COVER	2
24	58F-60-40400	SPRING	2
24	58F-60-40410	SPRING	2
25	VJ1989	SLEEVE	2
26	VE3609	RELIEF VALVE ASSEMBLY (2)	2
27	VE3533	O-RING (2)/(3)	8
28	BF3046	HOUSING, INLET (1)	2
29	VJ1988	POPPET	4
30	VJ1985	SPRING	4
31	VE3568	COVER, POPPET	2
32	VE3534	O-RING (2)/(3)	4
33	VE3528	O-RING (2)/(3)	8
34	VE3567	RELIEF VALVE ASSEMBLY (2) (SEE INDEX)	2	61152
35	VJ1990	SPRING	2
36	VE3557	SCREW, RESTRICTION	2
37	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	50120
38	VE3806	PLATE, SPACER	1
39	BF3050	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	60069
NS\|41		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|42	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
NS\|43	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1
