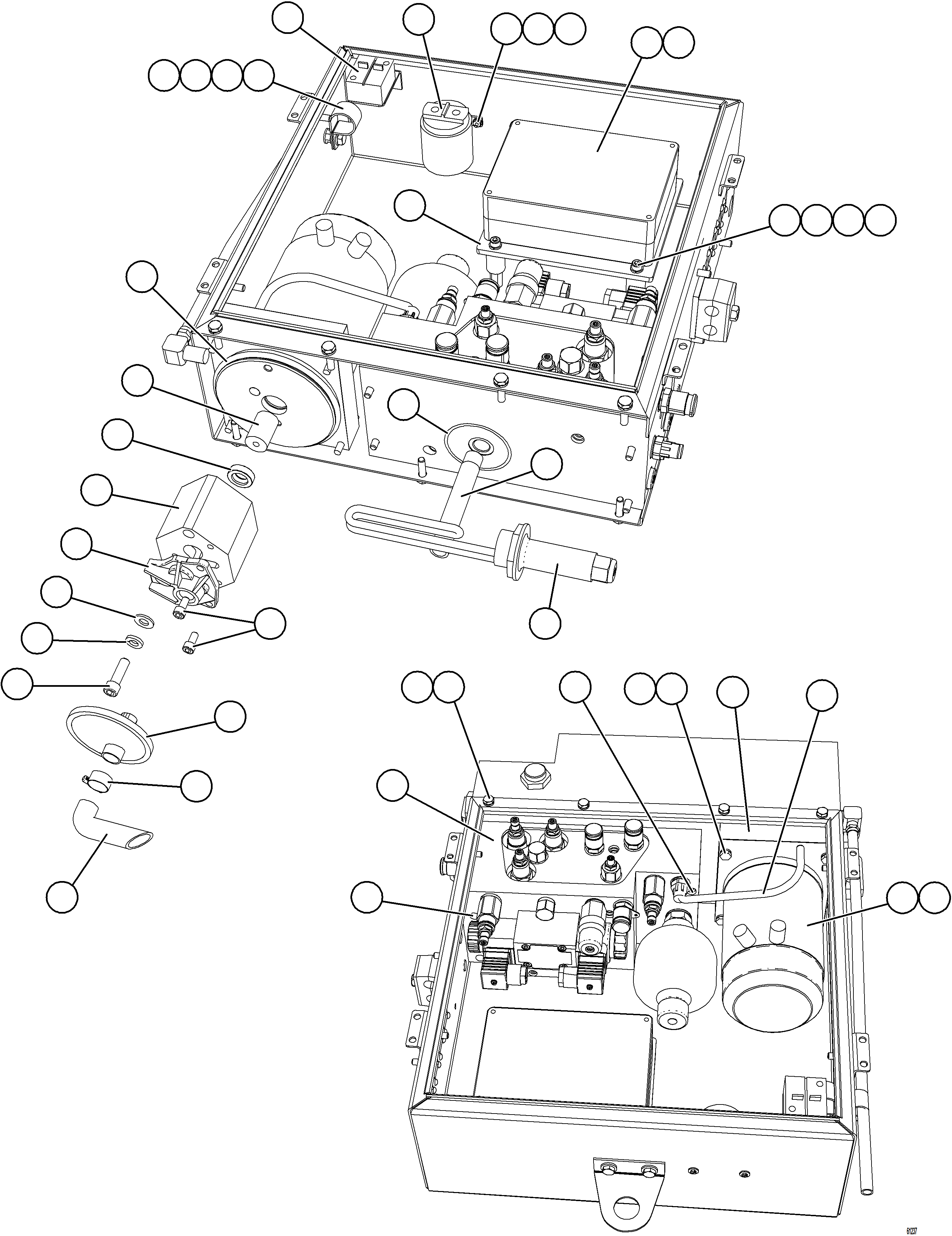

CONTROL CABINET ASSEMBLY 2/2 58F-60-01410 | AFE59-GN 930E-4 S/N A31993 CASSERONES

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE59-GN 930E-4 S/N A31993 CASSERONES

10 11 15 7 21 2 3 5 4 8 2 6 26 27 25 18 16 17 1 2 9 19 20 12 13 14 23 24 2 22 28 29 30 31 32 33 34 35 22 36 37 38

#	Part Number	Partname	Quantity	Reference
1	XA5681	MOTOR	1
2	DC3584	LOCKWASHER - 1/4"	17
3	TR4065	CAPSCREW -1/4" - 20NC X 1 3/4"	4
4	XA5680	MANIFOLD, END HEAD	1
5	XA5688	KIT, HYDRAULIC PIPE	1
6	XA5672	CAPSCREW -1/4" - 20NC X 1/2"	7
7	XA5222	MANIFOLD ASSEMBLY (SEE INDEX)	1	43107
8	XA5699	CAPSCREW, SOCKET HEAD - 1/4" - 20NC X 4"	2
9	XA5700	CAPSCREW, SOCKET HEAD - 1/4" - 20NC X 2 3/4"	2
10	WB3093	CLAMP, CUSHIONED - 1"	1
11	VC3573	CAPSCREW -1/4" - 20NC X 1 1/4"	1
12	SP8417	FLAT WASHER - 1/4"	3
13	VD4460	LOCKNUT - 1/4" - 20NC	1
14	XA5685	CIRCUIT BREAKER - 10 AMP	1
15	XA5675	SOLENOID	1
16	XA5704	SCREW - 3/16" X 1/2"	2
17	XA5693	WASHER - 3/16"	2
18	XA5702	NUT - 3/16"	2
19	XA5703	BOARD, BOTTOM	1
20	XA5705	SCREW, ALLEN HEAD - #8 - 32NC X 5/8"	4
21	XA5668	PLATE, MOUNTING (ALUMINUM)	1
22	XA5697	CAPSCREW, SOCKET HEAD - M6 X 1.00 X 12	6
23	XA5707	MOUNTS, RUBBER	4
24	XA5708	STUD - M6 X 21	4
25	XA5706	HEATER, OIL (1)	1
26	XA5671	PIPE, RETURN	1
27	XA5678	O-RING	1
28	XA5691	O-RING	1
29	XA5682	SPLING, COUPLING	1
30	XA5674	SEAL, SHAFT	1
31	XA5686	PUMP	1
32	XA5687	COVER, SUCTION	1
33	TV0177	FLAT WASHER - 5/16"	1
34	SC4174	LOCKWASHER - 5/16"	1
35	XA5701	CAPSCREW, SOCKET HEAD - 5/16" - 18NC X 1"	1
36	XA5692	FILTER, SUCTION	1
37	XA5695	CLAMP, HOSE	1
38	XA5694	PIPE, SUCTION (RUBBER)	1
NS\|39		NOTE: (1) IF NOT USED, INSTALL XA5673 PLUG.	-1
