AFE59-GH 930E-4 S/N A31966 - A31967 PENASQUITO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE3543	COVER, SPOOL	1
?	VE3535	BALL (1)/(2)	1
?	VE3536	POPPET (1)	1
?	VE3527	O-RING (1)/(2)	1
?	VE3548	SEAT, SPRING	4
?	VE3541	SPRING	2
?	VE3545	PLUG	3
?	VE3539	POPPET (1)	1
?	VE3546	END, SPOOL	4
?	VE3547	SPOOL	2
?	VE3542	SPRING	2
?	VE5472	POPPET	1
?	VE7619	HOUSING, SPOOL	1
?	VE3533	O-RING (1)/(2)	4
?	VE3603	POPPET (1)	1
?	VJ2946	O-RING (1)/(2)	2
?	VJ1983	PLUG	1
?	VE3549	O-RING (1)/(2)	1
?	VE3544	COVER, SPOOL	1
?	VE3538	POPPET (1)	1
?	VE3540	POPPET (1)	1
?	VJ1987	CAPSCREW	16
?	VE3528	O-RING (1)/(2)	2
?	VE3534	O-RING (1)/(2)	1
?	BF3047	NOTE: (1) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
?	BF3048	(2) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE59-GH 930E-4 S/N A31966 - A31967 PENASQUITO parts catalog PDF

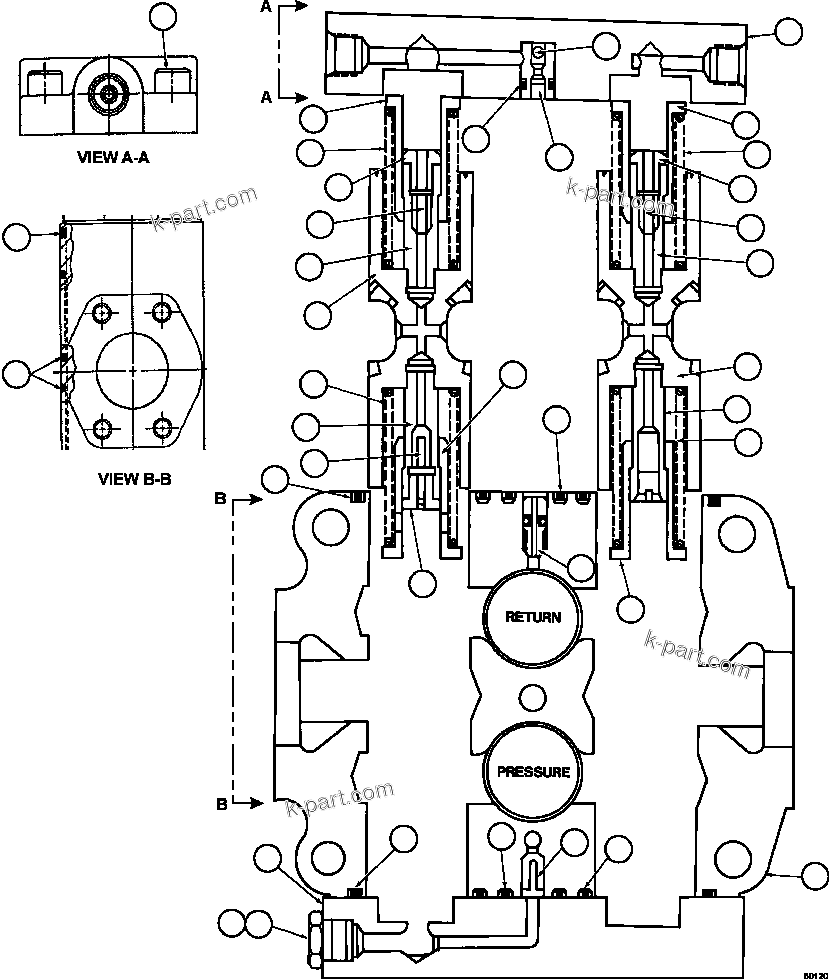

SPOOL SECTION ASSEMBLY VE3810 (50120) in AFE59-GH 930E-4 S/N A31966 - A31967 PENASQUITO. Diagram image and parts list.
