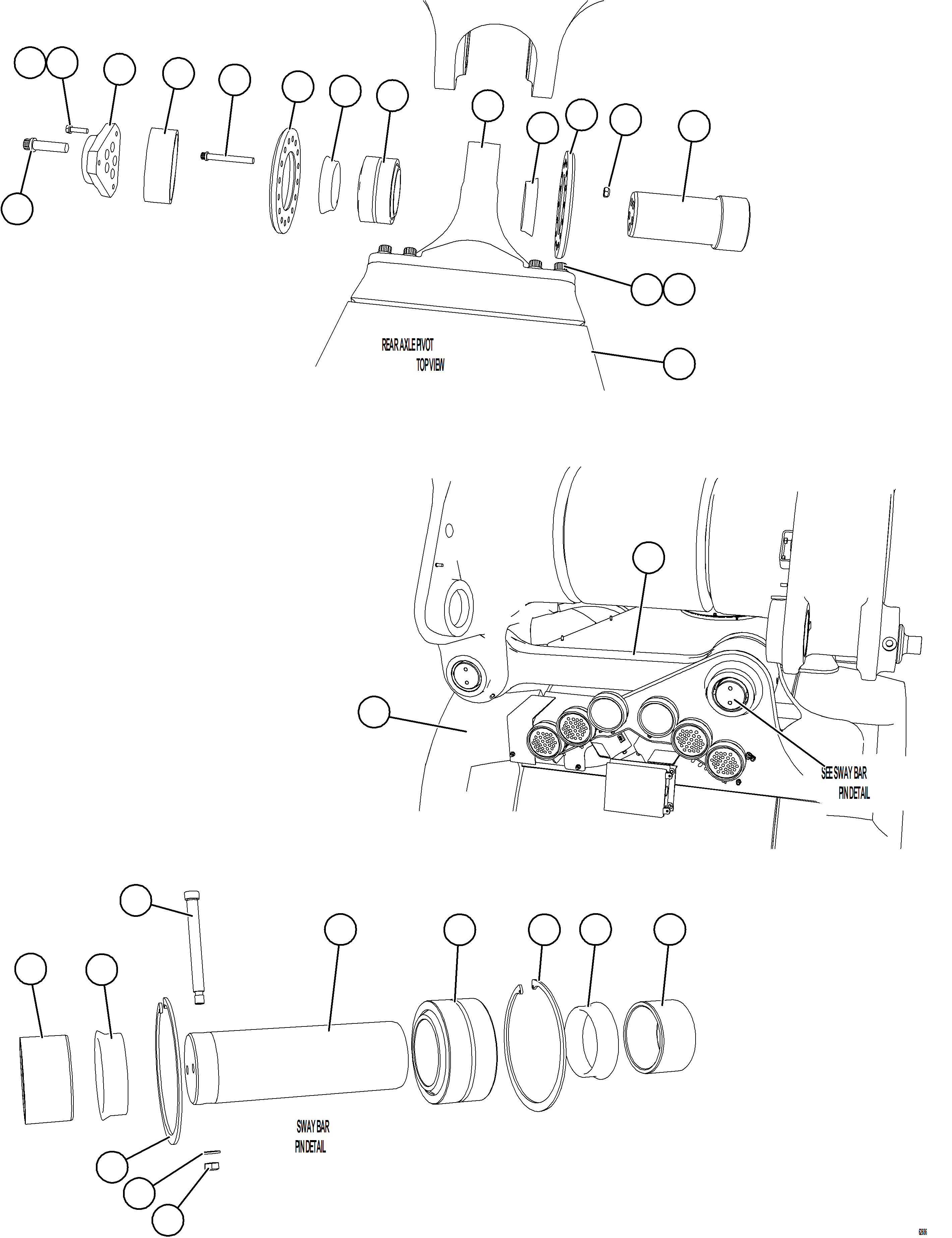

REAR AXLE INSTALLATION | AFE62-BW 930E-4SE S/N A32123 COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE62-BW 930E-4SE S/N A32123 COLLAHUASI

18 15 17 14 7 9 13 6 10 5 13 9 8 11 2 20 22 24 20 2 19 16 12 4 3 1 1 21 22 23

#	Part Number	Partname	Quantity
1	58F-22-00001	AXLE HOUSING ASSEMBLY	1
2	TX8110	SLEEVE (2)	2
3	WB1162	CAPSCREW, 12 PT - 1 1/4"-7NC X 3"	28
4	WA0366	FLAT WASHER, HARDENED - 1 1/4"	28
5	58F-22-40020	PIVOT EYE ASSEMBLY (3)	1
5	58F-22-40010	EYE, PIVOT (1)	1
6	PC1291	BEARING, SPHERICAL (1)	1
7	WB1154	CAPSCREW, 12 PT - 3/4" - 10NC X 6" (1)	14
8	VL2993	LOCKNUT - 3/4" - 10NC (1)	14
9	EL0047	RETAINER, BEARING (1)	2
10	ED4952	SLEEVE (1)	1
11	EK0867	PIN, PIVOT (1)	1
12	VN9952	LOCKNUT - 5/8" - 11NC (2)	2
13	EG3028	SPACER (1)	2
14	EK0866	PLATE, LOCKING (1)	1
15	WB1059	CAPSCREW, 12 PT - 1 1/4" - 7NC X 4 1/2" (1)	5
16	WA0361	FLAT WASHER, HARDENED - 5/8" (2)	2
17	VN9087	CAPSCREW - 5/8" - 11NC X 2 1/2" (1)	3
18	C1541	LOCKWASHER - 5/8" (1)	3
19	EM8109	SHOULDER BOLT - 5/8" - 11NC X 7.16" (FRAME END) (2)	1
19	EM8110	SHOULDER BOLT - 3/4" - 11NC X 6.73" (AXLE END) (2)	1
20	58F-50-00130	SPACER (2)	4
21	EH7812	ANTI-SWAY BAR W/BEARINGS	1
21	EH7813	BAR, ANTI-SWAY	1
22	VN9351	RING, RETAINING (2)	4
23	PB0027	BEARING, SPHERICAL (2)	2
24	EH7811	PIN, PANHARD ROD (2)	2
NS\|28	58F-MP-AK110	NOTE: (1) INCLUDED IN 58F-MP-AK110 NOSE CONE PIN KIT.	-1
NS\|29	58F-MP-AK060	(2) INCLUDED IN 58F-MP-AK060 ANTI-SWAY BAR KIT.	-1
NS\|30		(3) NOT SERVICED AS AN ASSEMBLY.	-1
NS\|31		ORDER INDIVIDUAL COMPONENT PARTS.	-1
