AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	58E-54-10110	INNER PANEL ASSEMBLY, R.H. (SEE INDEX)	1	61741A
?	SM0926	SCREW - M6 X 1.00	3
?	WB3559	CAPSCREW - M6 X 1.00 X 12	12
?	SM2548	SEAL, DOOR	1
?	XB6192	FRAME, DOOR - R.H.	1
?	SM2544	HINGE, DOOR	1
?	WB3560	CAPSCREW - M8 X 1.25 X 12	10
?	EL5788	CHANNEL, WINDOW LIFT	1
?	31006R1	MACHINE SCREW - M6 X 1.00 X 16	4
?	SM2832	BRACKET, WINDOW LIFT	1
?	SM2261	GASKET	2
?	MM0462	FLAT WASHER - M12	2
?	EM7654	BUSHING, NYLON	4
?	EL5721	BRACKET, OUTER	1
?	SM2274	LATCH DOOR ASSEMBLY - R.H.	1
?	SM2263	LEVER, DOOR LATCH	1
?	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1
?	TG9225	LOCKNUT - 3/8" - 16NC	1
?	SM2264	KNOB, DOOR LATCH	2
?	SM2354	SCREW - #10 - 24NC	1
?	SM2355	LOCKNUT - #10 - 24NC	1
?	KD0252	MACHINE SCREW - 1/4" - 20NC X 3/4"	4
?	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
?	PC1828	HANDLE, PUSH BUTTON	1
?	MM0176	NUT - M6 X 1.00	1
?	MM0584	CAPSCREW - M6 X 1.00 X 30 (STRIKER)	1
?	XB0815	PLATE	1
?	WB3550	SCREW, MACHINE - M6 X 20	3
?	SM2406	SCREW, SELF-TAPPING - #6 - 32NC X 3/8"	24
?	SM2405	SEAL, WINDOW (INSIDE)	1
?	2048889R1	TRIM, BULK	-1
?	58E-54-10100	WINDOW ASSEMBLY	1
?	58E-98-10500	CHANNEL, GLASS	1
?	58E-98-10530	FILLER	1
?	EL2724	GLASS	1
?	58E-98-10510	COVER, SCREW	1
?	58E-98-10520	WIPE, GLASS	1

Komatsu AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS parts catalog PDF

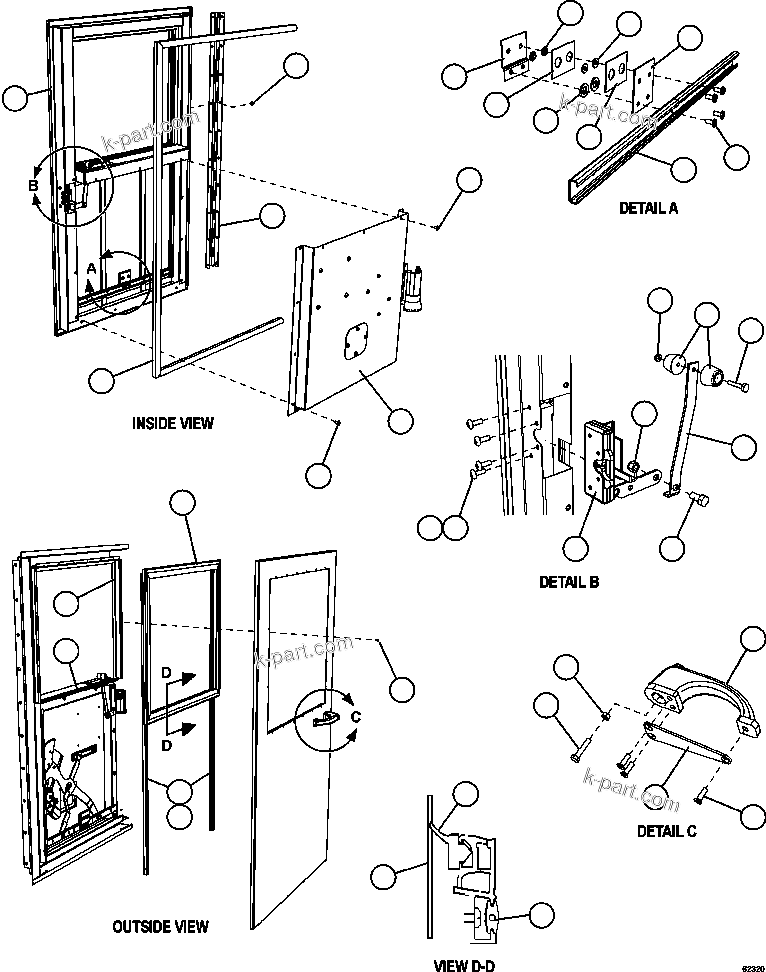

DOOR - RH 58E-54-10090 (62320) in AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS. Diagram image and parts list.
