AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	GE1216	BASE	1
?	VE3847	CONDENSER	4
?	VE5967	CLAMP	4
?	VE5968	GASKET	4
?	VE3035	CEMENT	-1
?	GE1221	GASKET	4
?		DECAL (1)	1
?	VS7484	WASHER, RETAINING	2
?	VJ6586	CAPSCREW - #10 - 32NF X 3/4"	10
?	VS6662	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	-1
?	HE5125	FLAT WASHER - #6	4
?	DF4944	LOCKWASHER - #6	4
?	VE5959	NUT	4
?	VS6823	RESISTOR	2
?	VJ6586	CAPSCREW - #10 - 32NF X 3/4"	10
?	GE1219	BRACKET	1
?	VE4610	SCREW - #10 - 32NF X 5/8"	4
?	GE1217	MODULE	2
?	VE4597	WASHER - 1/2"	8
?	VE5974	SCREW - #10 - 32NF X 1 1/8"	5
?	VS6820	MODULE	2
?	VS6990	RESISTOR	2
?	VS6996	RESISTOR	2
?	VS2616	DIODE	2
?	VS7210	CAPACITOR	2
?	VS7214	DIODE	2
?	GE1220	TRANSIPAD	2
?	GE1221	GASKET	4
?	VP9597	SCREW - #6 - 40NF X 5/8"	3
?	VE5976	SCREW - #6 - 40NF X 7/8"	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES parts catalog PDF

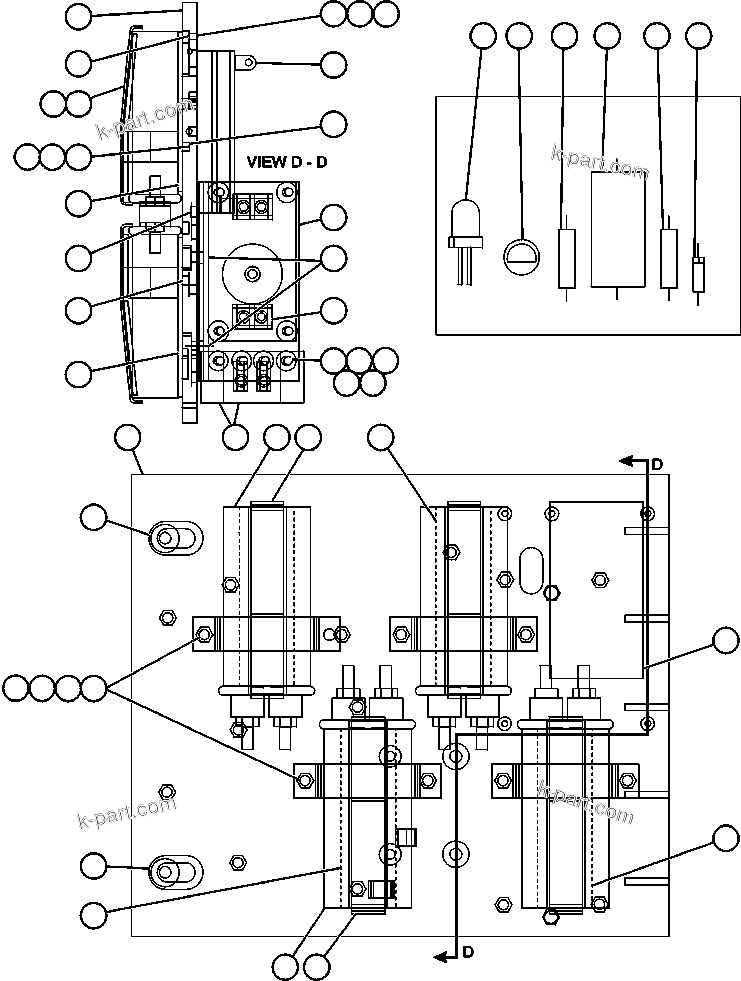

A.F.S.E. PANEL COVER ASSEMBLY - 1 (GE1210) (64233) in AFE59-T 930E-4 S/N A30545 - A30547 LOS PELAMBRES. Diagram image and parts list.
