AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XB6269	HANDRAIL - LH DECK (REAR)	1
?	EM1484	PLATE, BENT	1
?	58E-54-23630	HANDRAIL - LH DECK (FRONT)	1
?	PC2322	SPRING, LH	1
?	58F-54-05470	SPACER	1
?	58F-54-30000	PLATE, BENT	1
?	MM0619	CAPSCREW - M12 X 1.75 X 35	6
?	MM0472	LOCKWASHER - M12	29
?	EM9722	HANDRAIL	1
?	58F-54-05460	PLATE, BENT	1
?	MM0624	CAPSCREW - M12 X 1.75 X 70	3
?	MM0714	FLAT WASHER, HARDENED - M12	36
?	MM0694	LOCKNUT - M12 X 1.75	3
?	MM0618	CAPSCREW - M12 X 1.75 X 30	28
?	XB6264	HANDRAIL - LH DECK (SIDE)	1
?	58E-54-23620	HANDRAIL	1
?	58E-54-23640	GATE	1
?	MM0620	CAPSCREW - M12 X 1.75 X 40	3
?	XB4716	BUMPER	1
?	MM0179	NUT - M12 X 1.75	4
?	MM0608	CAPSCREW - M10 X 1.50 X 40	4
?	MM0471	LOCKWASHER - M10	5
?	MM0713	FLAT WASHER, HARDENED - M10	4
?	MM0461	FLAT WASHER - M10	1
?	MM0178	NUT - M10 X 1.50	1
?	MM0462	FLAT WASHER - M12	11
?	58F-54-05520	HINGE	2
?	MM0617	CAPSCREW - M12 X 1.75 X 25	4

Komatsu AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA parts catalog PDF

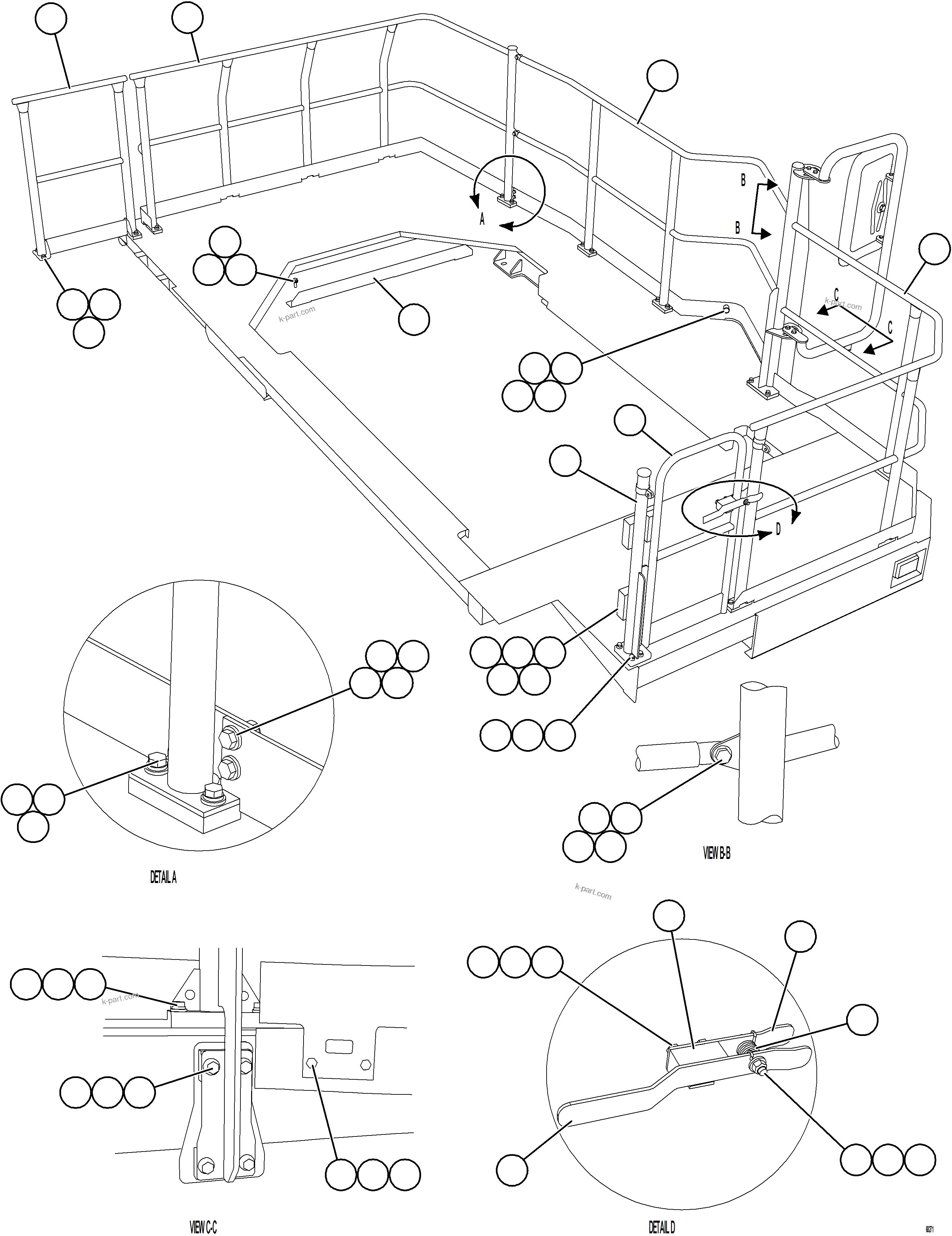

LH DECK HANDRAILS (68271) in AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA. Diagram image and parts list.
