AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	58B-43-00500	BASE	1
?	VE3847	CONDENSER	4
?	VE5967	CLAMP	4
?	58B-43-00610	GASKET	4
?	VE5970	DECAL (1)	1
?	58B-43-00600	WASHER, RETAINING	2
?	VJ6586	CAPSCREW - #10 - 32NF X 3/4"	10
?	VS6662	FLAT WASHER - #10	-1
?	VE4601	LOCKWASHER - #10	-1
?	SF2755	NUT - #10 - 32NF	-1
?	VS6823	RESISTOR- 10 OHM, 50W	2
?	58B-43-00590	BRACKET	1
?	VE4610	SCREW - #10 - 32NF X 5/8"	4
?	XA5817	MODULE	2
?	58B-43-00520	RESISTOR	2
?	58B-43-00530	CAPACITOR	2
?	58B-43-00540	DIODE	2
?	58B-43-00550	TRANSFORMER	2
?	58B-43-00560	BOARD, TERMINAL	2
?	58B-43-00570	RESISTOR	2
?	VE6548	CAPACITOR	2
?	VE4597	WASHER - 1/2"	8
?	VE5974	SCREW - #10 - 32NF X 1 1/8"	5
?	VS6820	MODULE	2
?	VS6990	RESISTOR	2
?	VS6996	RESISTOR	2
?	VE2616	DIODE	2
?	VS7210	CAPACITOR	2
?	VS7214	DIODE	2
?	VS6610	TRANSIPAD	2
?	VP9597	SCREW - #6 - 40NF X 5/8"	3
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK parts catalog PDF

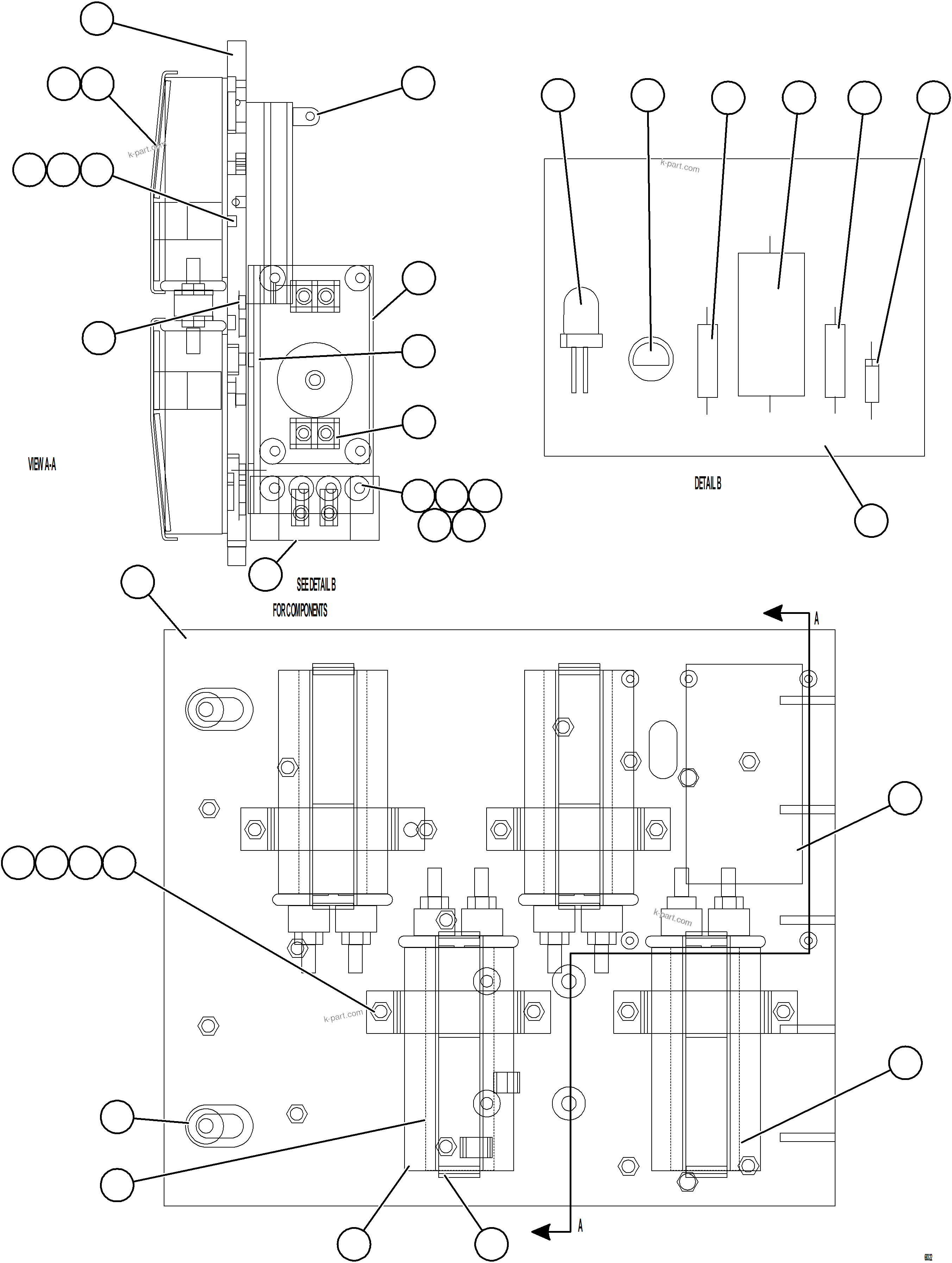

AFSE PANEL COVER ASSEMBLY 2/2 58B-43-00480 (68322) in AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK. Diagram image and parts list.
