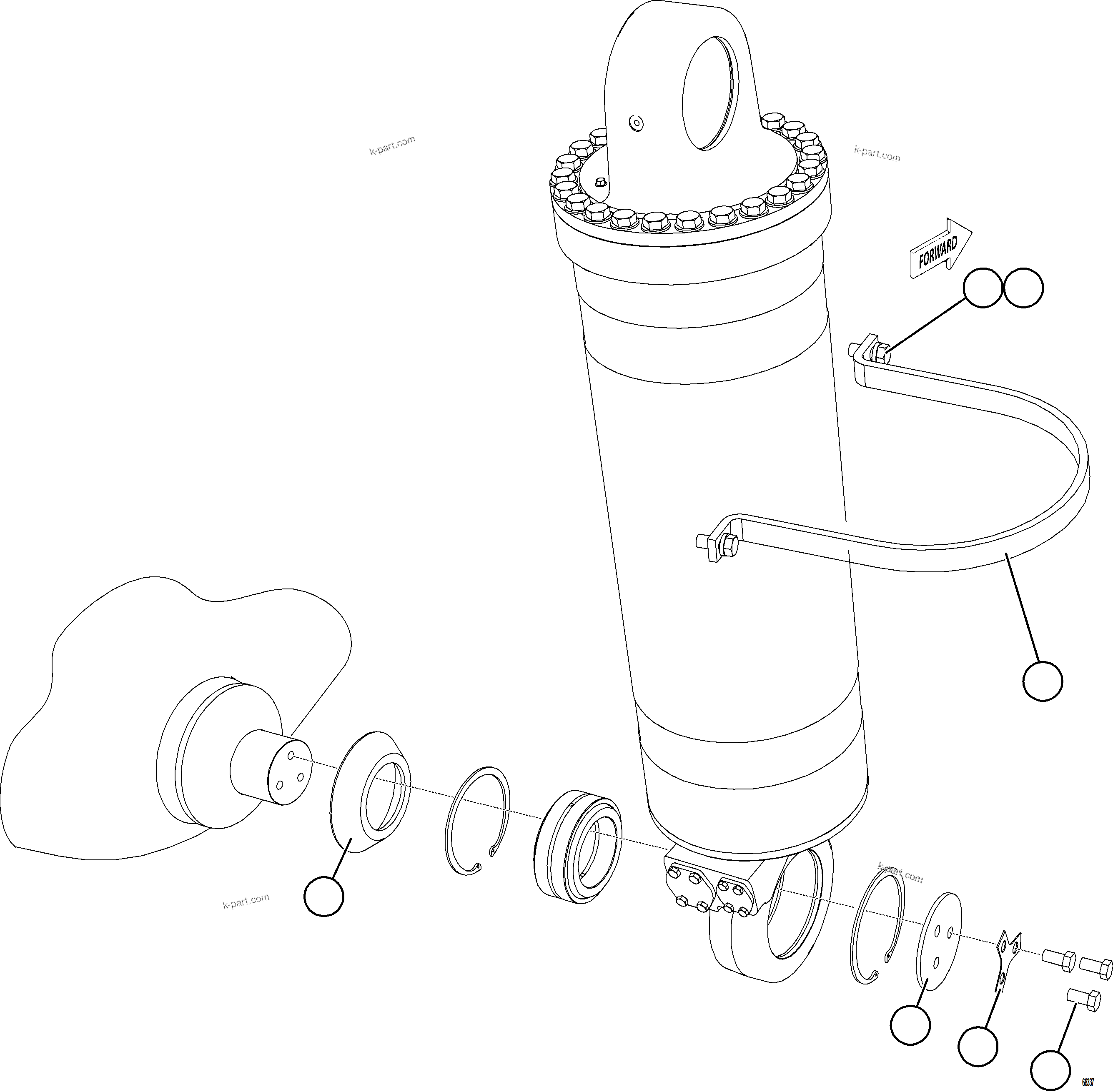

Komatsu parts book diagram for AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK: HOIST CYLINDER INSTALLATION 2/2

? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	EF4835	SPACER, BEARING	1
	?	EF4836	PLATE, RETAINER	1
	?	EF4837	PLATE, LOCKING	1
	?	58B-09-00170	CAPSCREW - M20 X 2.50 X 40	3
	?	TY9627	CLAMP	1
	?	C1643	CAPSCREW - 3/4" - 10NC X 1 3/4"	2
	?	C1542	LOCKWASHER - 3/4"	2

Komatsu AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK parts catalog PDF

HOIST CYLINDER INSTALLATION 2/2 (68337) in AFE78-E 930E-5 S/N A40022, A40024 - A40025 TECK. Diagram image and parts list.
