AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TA4411	INJECTOR ASSEMBLY, REAR (5-PIECE) (1)	1
?	XA2520	NIPPLE & CAP ASSEMBLY	5
?	VW7989	INJECTOR ASSEMBLY, REAR (4-PIECE) (1)	2
?	XA2520	NIPPLE & CAP ASSEMBLY	8
?	VW7990	CAP, PROTECTIVE	13
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	EJ4053	PLATE, MOUNTING	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	6
?	R2510	NIPPLE	1
?	MM0611	CAPSCREW - M10 X 1.50 X 60	6
?	MM0461	FLAT WASHER - M10	9
?	MM0178	NUT - M10 X 1.50	7
?	EM2059	GRABRAIL, REAR HATCH	1
?	TB8803	NIPPLE, PIPE - 3/8"	2
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	HA6766	HOSE (TO JUNCTION AT HORSECOLLAR)	1
?	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0574	FITTING, STRAIGHT (AT BOTTOM OF REAR SUSPENSIONS)	2
?	WB0372	FITTING, ELBOW - 90 DEG	2
?	HA8048	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
?	DC5608	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING, PIPE (AT BOTTOM OF HOIST CYLINDERS)	2
?	HA1413	HOSE (TO LH END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT LH END OF SWAY BAR)	1
?	HA0190	HOSE (TO TOP OF REAR SUSPENSIONS)	2
?	WB0499	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
?	HA0578	HOSE (TO BODY PIVOT PINS)	2
?	WB0284	FITTING, ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
?	08193-21012	CLIP	1
?	HA2482	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF HOIST CYLINDERS)	2
?	HA0570	HOSE (TO RH END OF SWAY BAR)	1
?	WB0281	FITTING, ELBOW - 45 DEG (AT RH END OF SWAY BAR)	1
?	HA1144	HOSE (TO DRIVE CASE PIVOT)	1
?	WB0255	FITTING, ELBOW - 90 DEG (AT DRIVE CASE PIVOT)	1
?	PC1654	SWITCH, PRESSURE	1
?	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
?	R2508	FITTING, TEE	1
?	C5769	PLUG, PIPE - 1/4"	1
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1

Komatsu AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA parts catalog PDF

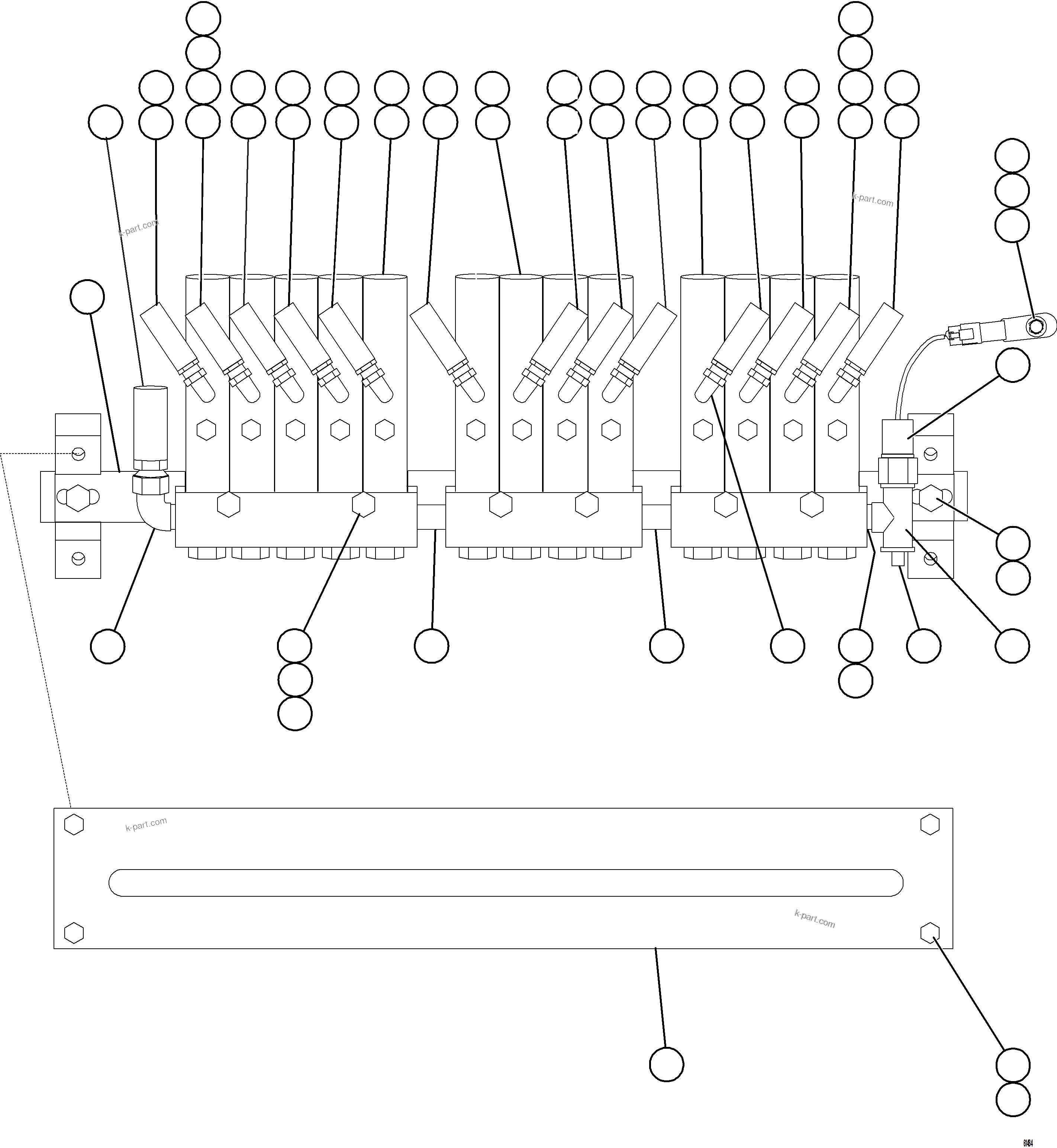

AUTOMATIC LUBRICATION SYSTEM - REAR AXLE (61484) in AFE73-B 980E-4 S/N A40031 - A40032 ANTAMINA. Diagram image and parts list.
