AFE69-F 730E-8 S/N A40018 - A40034 NATALKA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA4923	SHAFT, BEARING	4
?	XA4920	HOUSING, UPPER	1
?	XA4962	NUT, CENTERLOCK - 3/8" - 16NC	10
?	XA4932	BRACKET, CABLE	1
?	XA4965	CAPSCREW - 1/4" - 20NC X 5/8"	2
?	XA4952	CAPSCREW - 1/4" - 20NC X 1 1/2"	1
?	XA4951	CAPSCREW - #6 - 32NC X 1/2"	1
?	XA4931	KNOB	1
?	XA4954	SPRING, COMPRESSION	1
?	XA4946	BALL, BEARING	1
?	XA4950	LOCKNUT - #6 - 32NC	1
?	XA4961	LOCKNUT - 1/4" - 20NC	5
?	XA4929	LINK, NARROW TOGGLE	1
?	XA4966	CAPSCREW - 3/8" - 16NC X 1/2"	1
?	XA4943	TUBE, BEARING	12
?	XA4935	SHOULDER BOLT	2
?	XA4957	LOCKWASHER	2
?	XA4963	FLAT WASHER	2
?	XA4930	RETAINER, BUMPER	2
?	XA4960	CAPSCREW - #8 - 32NC X 1 1/4"	2
?	XA4947	FITTING, ELBOW - 90 DEG (1)	1
?	XA4939	BUMPER	2
?	XA4959	SCREW - 1/4" - 20NC X 1"	2
?	XA4925	TETHER, BOLT	2
?	XA4924	ARM, SCISSORS	1
?	XA4938	SHOCK ABSORBER	1
?	58E-98-00210	CLAMP, COMPRESSOR	1
?	XA4928	LINK, WIDE TOGGLE	1
?	XA4941	SPRING, AIR	1
?	XA4921	HOUSING, LOWER	1
?	XA4958	SCREW - 3/8" - 16NC	1
?	XA4955	CLIP	28
?	XA4942	BOOT, SUSPENSION	1
?	XA5791	COMPRESSOR	1
?	XA4956	TUBING, NYLON - 5/32" (PRESSURE) (1)/(2)	1
?	XA4948	TUBING, CONVOLUTED (VENT)	1
?	XA4933	SHOULDER BOLT	2
?	XA4922	SHOCK ABSORBER, ADJUSTABLE	1
?	XA4937	WASHER, SPACER	4
?	XA4940	BEARING	4
?	58E-98-10400	SHAFT, BEARING - LONG	1
?	XA4926	SHAFT, BEARING - SHORT	1
?	XA4964	FLAT WASHER	2
?	XA4927	HARNESS, SEAT COMPRESSOR	1
?	XA4945	TIE, CABLE (1)	1
?	XA5074	NOTE: (1) INCLUDED IN XA5074 AIR LINE SERVICE KIT.	-1
?		(2) NOT SERVICED SEPARATELY. ORDER XA5074.	-1

Komatsu AFE69-F 730E-8 S/N A40018 - A40034 NATALKA parts catalog PDF

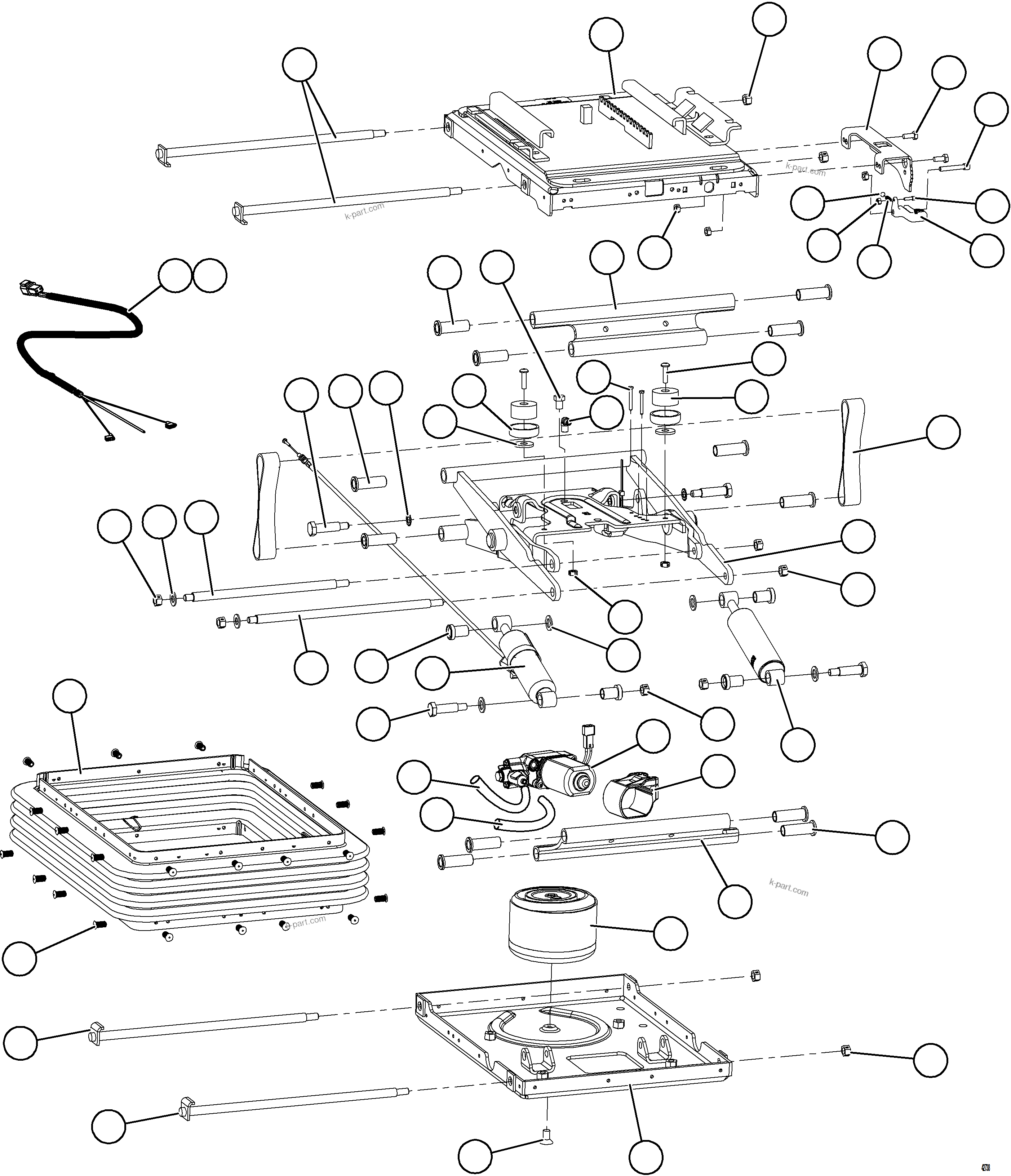

SEAT SUSPENSION ASSEMBLY XA5816 (42738) in AFE69-F 730E-8 S/N A40018 - A40034 NATALKA. Diagram image and parts list.
