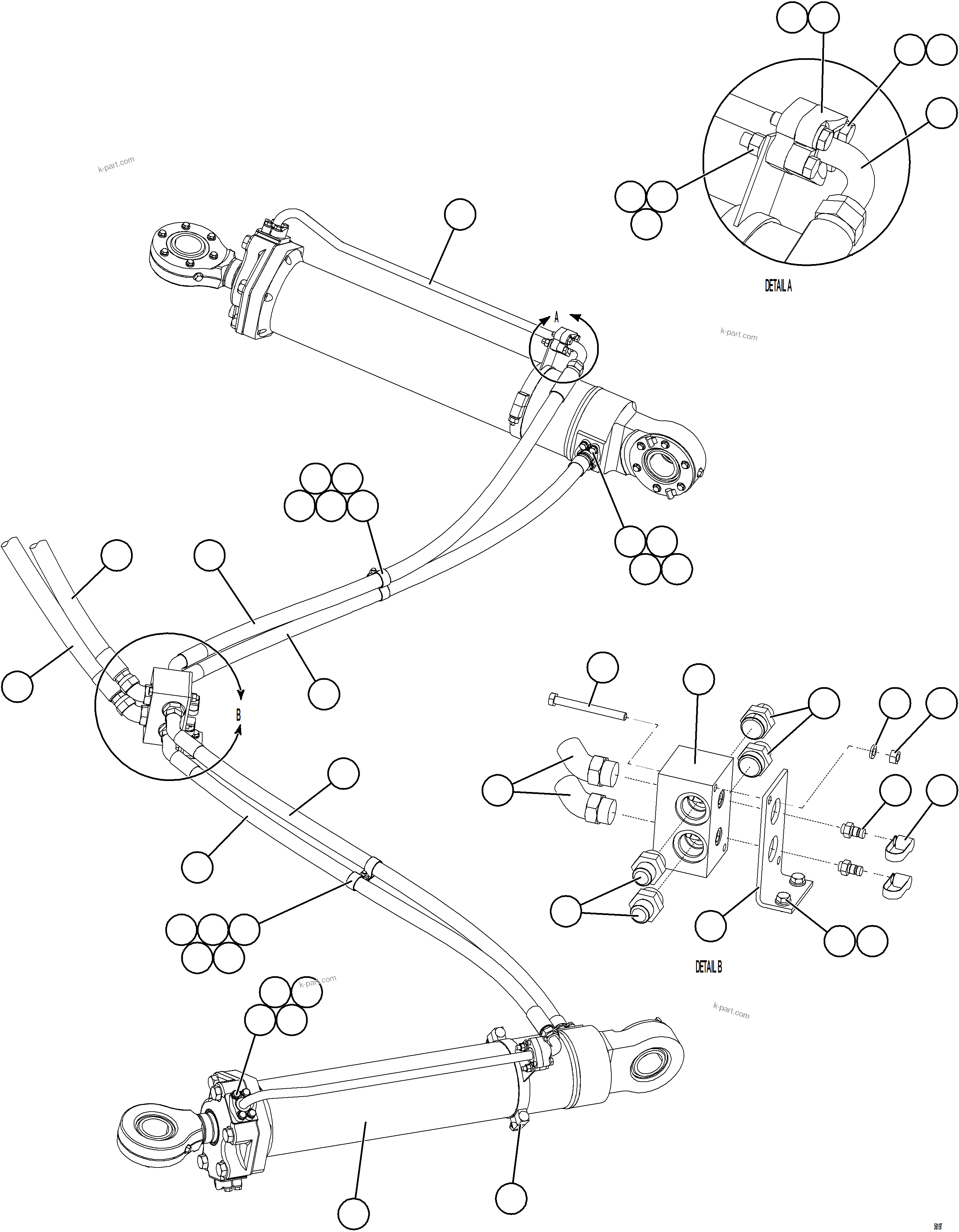

STEERING CYLINDER PIPING | AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE69-A 730E-8 S/N A40002 HAILE GOLD MINE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	XB4662	STEERING CYLINDER ASSEMBLY (SEE FIG 56196)	2	56196
?	PB8303	CLAMP ASSEMBLY	2
?	EC1446	TUBE	2
?	C1603	CAPSCREW - 3/8" - 16NC X 1 1/4"	16
?	C0312	LOCKWASHER - 3/8"	24
?	VN3466	O-RING (1)	6
?	TG3309	CLAMP, SPLIT FLANGE - 3/4"	12
?	VC8762	CAPSCREW - 3/8" - 16NC X 1 1/2"	4
?	WA4876	FITTING, ELBOW - 90 DEG	2
?	C1521	NUT - 3/8" - 16NC	4
?	TR4434	CAPSCREW - 3/8" - 16NC X 2"	4
?	HA7337	HOSE	2
?	HA2683	HOSE	2
?	WB3096	CLAMP, CUSHIONED - 1 1/4"	4
?	MM0178	NUT - M10 X 1.50	4
?	MM0713	FLAT WASHER, HARDENED - M10	6
?	MM0471	LOCKWASHER - M10	4
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	58D-60-00050	HOSE	1
?	58D-60-00040	HOSE	1
?	TZ5901	MANIFOLD	1
?	WB0594	FITTING, STRAIGHT	4
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	MM0615	CAPSCREW - M10 X 1.50 X 100	2
?	PB6528	COUPLING, DIAGNOSTIC	2
?	PB6041	CAP, DUST	2
?	EJ5570	BRACKET	1
?	MM0603	CAPSCREW - M10 X 1.50 X 16	2
?	58D-SC-AK010	NOTE: (1) INCLUDED IN 58D-SC-AK010 STEERING CYLINDER	-1
?		OVERHAUL KIT.	-1
